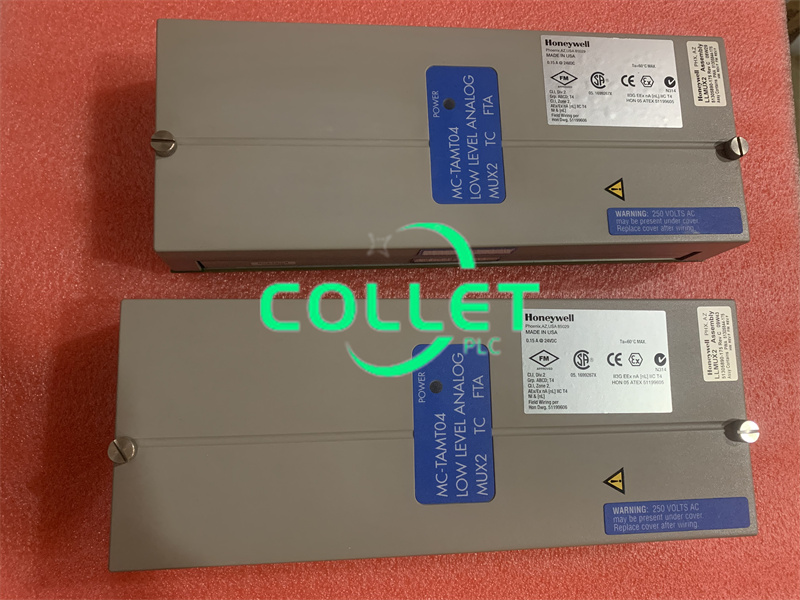

MC-TAMT04 Honeywell 51305890-175, Low Level Input Multiplexer

Description:

Honeywell MC-TAMT04 51305890-175, LLMUX2 TC FTA with Local CJR Compression Terminals, Single IOP Interface, Conformally Coated, CE Compliant

 Purpose of the LLMUX2 FTAs
 The LLMUX2FieldTermination Assemblies (FTAs) replace the LLMUX FTAs, which are no longer being manufactured. The LLMUX2 FTAs are for use with xPM and Experion PMIO. The following are typical scenarios:
-New installations
-Upgrades to add additional capacity
-Replacement of existing LLMUX FTAs, either to replace a failed unit, or to take advantage of the features of the new product.

 Characteristics of the LLMUX2 FTAs
 The newLLMUX2FTAs have an umber of enhancements:
 -A separate A/D per channel
 -Improved open thermocouple detection within one second
 -Improved loop resistance to allow longer thermocouple wiring to the field
 -They use solid-state technology, eliminating the use of mercury-wetted relays
 -They have on-board diagnostic capability

 LLMUX2 versions
 The LLMUX2 is available in three versions:
-Thermocouple with local Cold Junction Reference(CJR)
-Thermocouple with remote CJR
-Resistive Thermal Device(RTD)

Datasheet Link:

MC-TAMT04 Honeywell 51305890-175, Low Level Input Multiplexer Datasheet
