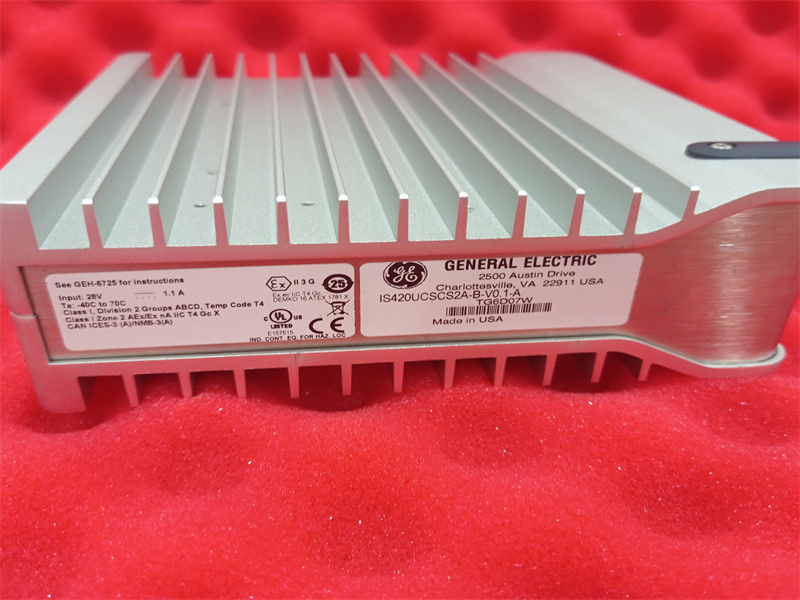

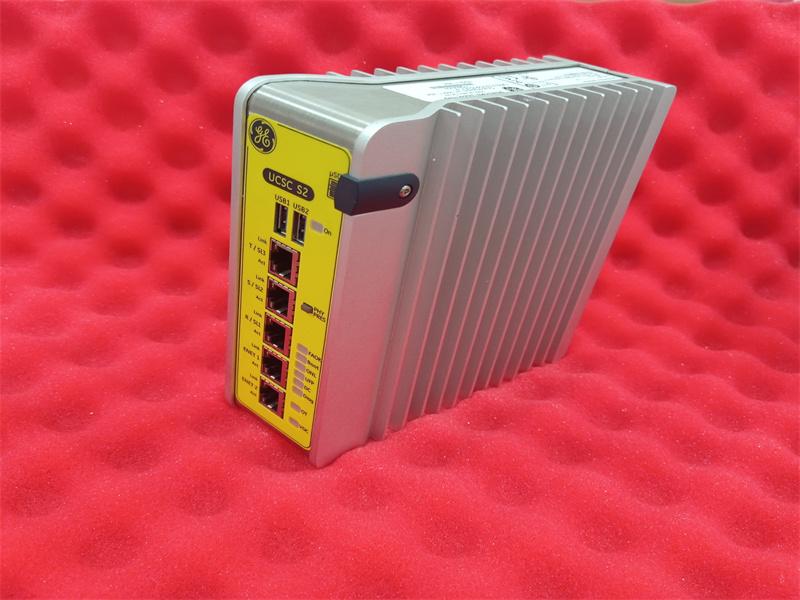

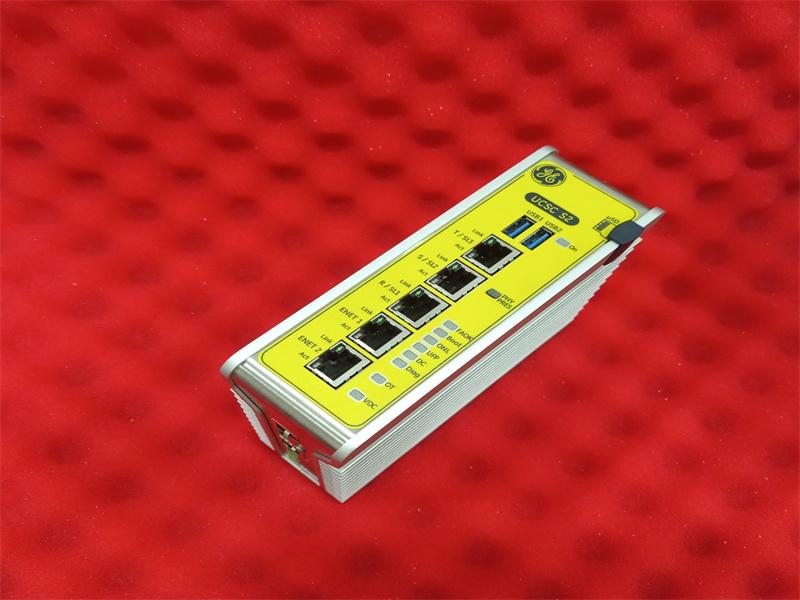

IS420UCSCS2A GE MKVIES,UCSC-SIL CONTROLLER,DUALCORE,1.6GHZ, 2GB

Description:

The Mark* VIe and Mark VIeS Functional Safety UCSC controller is a compact, stand-alone
controller that runs application-specific control system logic. It can be used in a diverse
range of applications, from small industrial controllers to large combined-cycle power
plants. The UCSC controller is a base-mounted module, with no batteries, no fans, and no
hardware configuration jumpers. All configuration is done through software settings that
can be conveniently modified and downloaded using the Mark controls platform software
configuration application, ToolboxST*, running on a Microsoft

system. The UCSC controller communicates with I/O modules (Mark VIe and Mark VIeS I/O
packs)through on-board I/Onetwork (IONet) interfaces.
The Mark VIeS Safety controller, IS420UCSCS2A, is a dual core controller that runs the Mark
VIeS Safety control applications used for functional safety loops to achieve SIL 2 and SIL
3 capabilities. The Mark VIeS Safety product is used by operators that are knowledgeable
in safety-instrumented system (SIS) applications to reduce risk in safety functions. The
UCSCS2A controller can be configured for Simplex, Dual, and TMR redundancy.
The non-safety Mark VIe controller, IS420UCSCH1B, can be interfaced with the Safety
control system (through EGD protocol on UDH Ethernet port) as a controller for non-SIF
loops or as a simple communication gateway to provide data with OPC
® UA Server or Modbus ® Master feedback signals, if needed by the application

Datasheet Link:

IS420UCSCS2A GE MKVIES,UCSC-SIL CONTROLLER,DUALCORE,1.6GHZ, 2GB Datasheet
