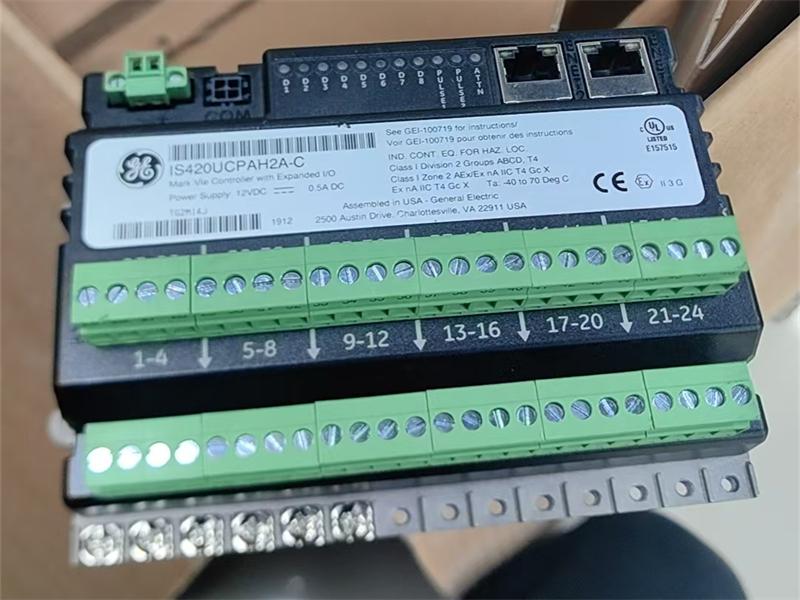

IS420UCPAH2A-C GE Mark VIe, Integral I/O Controller Module

Description:

IS420UCPAH2A-C is an Integral I/O Controller Module, manufactured by GE under Mark VIe.
The UCPA is a Mark VIe controller platform that runs application code (control logic).
The controller has both integral I/O capabilities and can communicate with external I/O packs through a simplex IONet. The UCPA Mark VIe controller is commercial in design and not intended for use at any time in a residential environment. The UCPA controller is panel-mounted and includes the following features:
• Controller and I/O in a single module
− Smaller panel footprint with integral I/O
− IONet port for simplex I/O module expansion
• Single 12 V dc power supply, runs at 4 W (low power)
• Can operate in -40 to 70°C ambient temperate range
• No battery or fan
• Cost-effective platform for simplex control and I/O
• Uses ControlST* V05.04 or later with the same ToolboxST* configuration tools across the Mark Controls platform

The Mark VIe UCPA controller contains the following components:
• IS400BPPCH2A processor board
• IS400STWCH1A base I/O board
• IS400WEXPH1A expansion I/O board (included with UCPAH2A)

The IS420UCPAH1A includes the IS400STWCH1A (base I/O board) and the BPPCH2A processor board. It provides the following inputs and outputs:
• Two Hall Effect Pulse Inputs
• Two Analog Inputs (AI)
• Four Digital Inputs or Outputs with feedback (DIO)
The IS420UCPAH2A also includes the IS400WEXPH1A expansion I/O board. The WEXP provides the following additional I/O:
• Six AIs (for a total of 8)
• Two Analog Outputs
• Four DIOs (for a total of 8)

Frequently Asked Questions:
1.What are IS420UCPAH2A-C related products?
IS420UCPAH2A, IS420UCPAH2A-C, IS400BPPCH2A, IS400STWCH1A, IS400WEXPH1A

2.What's IS420UCPAH2A-C processor, and how much storage does he have?
Processor: Freescale 3308 processor, 332 MHz, (BPPC-based)
Memory: 64 MB/ RAM 256 MB onboard flash/ 32 KB NOVRAM

3.What's IS420UCPAH2A-C input and output specifications?
Analog Inputs:
Two analog inputs on STWC
Gains used in scaling: 1, 64, 128
Voltage In: Refer to the section, Analog Input Modes.
Current (option channel 2): 4 to 20 mA
Accuracy: 0.1% of full range
Six analog inputs on WEXP
Voltage In: 0 V to 5 V, fixed gain 1 (option channels 6, 7, and 8)
Current: 4 to 20 mA (all channels 3–8)
Accuracy : 0.1% of full range
Analog outputs:
Two analog outputs on WEXP
Voltage : 0 to 10 V
Current : 0 to 20 mA
Accuracy: 0.3% of full range
