IS415UCVHH1A GE Mark VIe, VME Controller Board

Description:

The IS415UCVHH1A VME Controller Board, part of General Electric's Mark VIe Turbine Control System series, plays a crucial role in programming, configuration, and diagnostic analysis. This unit leverages the ControlST software suite, powered by an Intel CPU and DDR2 RAM. The Mark VIe series, to which the IS415UCVHH1A belongs, is a self-described GE Mark product line specifically designed for managing and controlling General Electric-compatible gas, steam, and wind turbine automated systems. It represents a significant advancement over previous Mark Series iterations, such as the Mark V. Notably, the Mark VIe series, with its focus on alternative energy applications, also holds substantial demand in the broader industrial automation market. It incorporates the renowned Speedtronic control system technology into various products, including the IS415UCVHH1A.

Hardware Tips and Specifications:

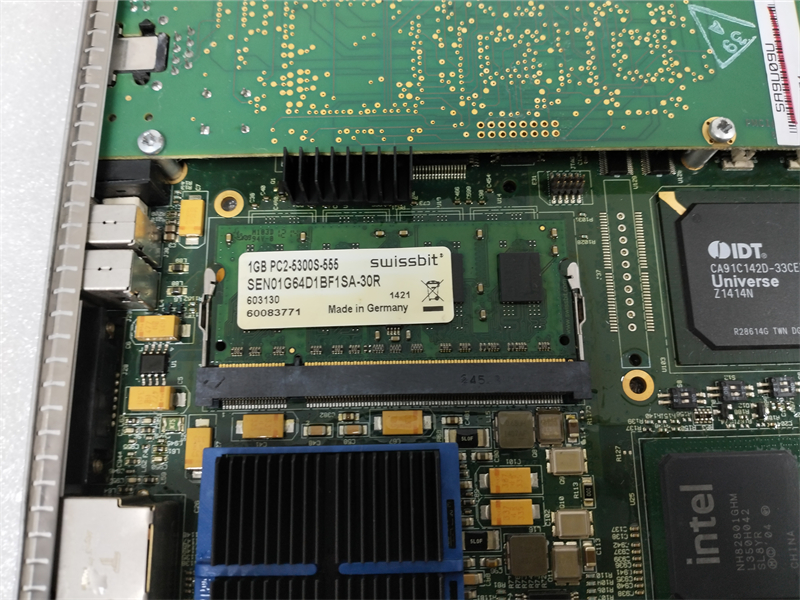

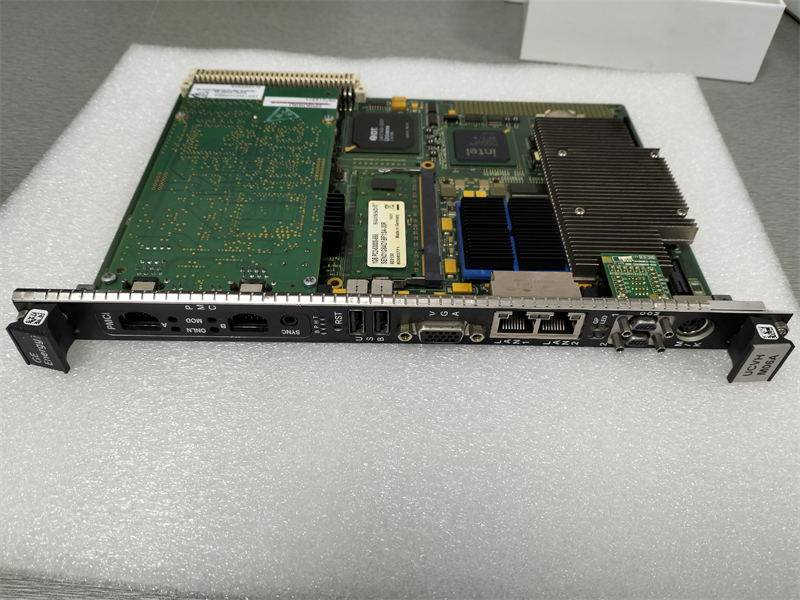

The IS415UCVHH1A serves as a VME Control Board within the Mark VIe Distributed Control System series, supporting simplex, dual, and triple-redundant configurations. This controller board shares many components found in standard Personal Computers, such as a RAM slot, 128MB Compact Flash Disk, heat sinks, and a CMOS battery. Its faceplate includes two USB ports, two Ethernet ports, two COM ports with corresponding LEDs, a mouse/keyboard connector, and a VGA display port. Users can customize controller and I/O redundancy to fit specific application needs while reducing costs. Real-time plant analysis and adaptation are facilitated by the ControlST software, which provides high-quality, time-coherent data.

It's important to note that the IS415UCVHH1A is not the original VME Control Board Module produced by General Electric for the Mark VIe series. The original module with this specific functionality is the IS415UCVH1 parent VME Control Board, which does not utilize the IS415UCVHH1A's A-rated functional product revision.

For detailed information on installing and operating the IS415UCVHH1A, refer to GE publications available on our site. These resources also include essential safety information. Maintenance of this equipment should only be performed by well-trained personnel. AX Control maintains a large inventory of GE parts, capable of shipping within hours of order placement. Orders submitted before 3 PM EST are shipped the same day. We offer various shipping options to meet different cost and speed requirements and provide repair services and bulk purchasing options for surplus inventory.

While understanding the general hardware components and specifications of the IS415UCVHH1A board is crucial before making a purchase, the absence of originally-printed instructional manual materials online makes the IS415UCVHH1A functional product number a valuable supplementary source of IS415UCVHH1A board hardware information. The functional product number, beginning with the dual-functional IS415 tag, indicates the IS415UCVHH1A module's special modular Mark VIe series assembly and its domestic production origin.

Frequently Asked Questions:
1.Which three communication ports connect operators to engineering interfaces?
-Ethernet connections to the UDH for HMI and other control equipment communication.
-RS-232C setup connection through the COM1 port.
-RS-232C connection for COM2 port-based communication with distributed control systems (DCS).

2.What does this IS415UCVHH1A conformal PCB coating type entail?
This IS415UCVHH1A conformal style of PCB coating is a thin layer of basic daily wear and tear protection that enevelops the entirety of this IS415UCVHH1A product's base circuit board in a thin insulatory layer.

3.What are the related products of IS215VPROH2B?

IS215UCVHM06A/ IS415UCVHH1A

Datasheet Link:

IS415UCVHH1A GE Mark VIe, VME Controller Board PDF Datasheet
