IS220UCSAH1A GE Mark VIe, PAMC Acoustic Monitor (Processor)

Description:

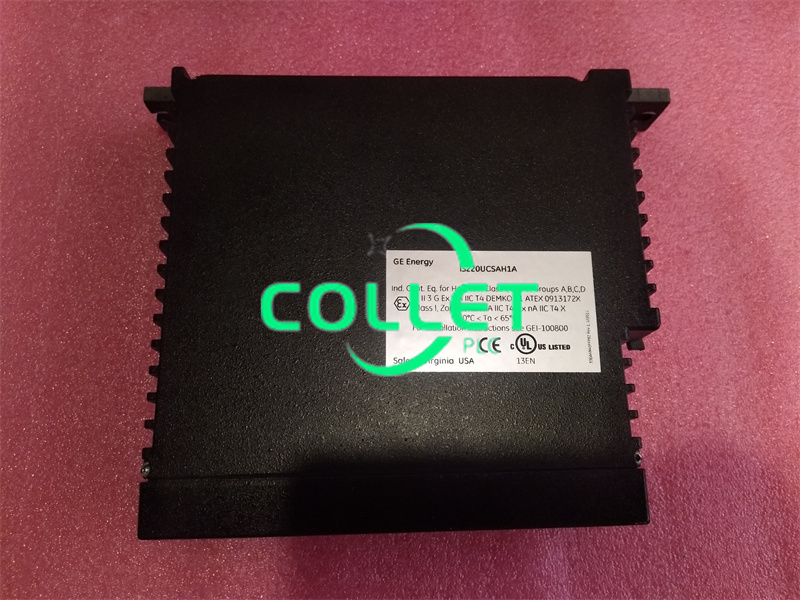

The IS220UCSAH1A is a specialized embedded controller module, engineered and manufactured by General Electric for the Mark VIe series, integral to GE's Distributed Gas Turbine Control Systems. As part of the UCSA controller range, it operates as an independent computer unit running designated application code. Mounted within a panel, this controller interacts with I/O packs via on-board I/O network (IONet) interfaces. These I/O networks are proprietary, purpose-built Ethernet systems exclusive to the I/O modules and controllers. The operating system (OS) powering the controller is QNX Neutrino, a real-time multitasking OS tailored for speed, reliability, and industrial applications. While the UCSA controller platform is versatile, encompassing balance of plant control and certain retrofits, its processing capabilities may not meet the demands of advanced model-based control tasks.

Characteristics include:

Storage and Certification: Designed exclusively for use with the Mark VIe UCSA controller, the module relies on compact flash storage to fulfill its operational requirements. Notably, it lacks IEC61508 safety loop certification, potentially limiting its suitability for applications with stringent safety specifications.

Power Requirements: Adaptable to a wide range of power inputs from 18 V DC to 32 V DC, the module typically consumes around 12.5 Watts. This flexibility ensures compatibility across various power sources, enhancing its adaptability.

Temperature Tolerance: Boasting impressive temperature resilience, the controller can operate effectively between 0 to 65 degrees Celsius. Its design, which eliminates the need for a cooling fan, streamlines installation and maintenance while ensuring a cool operating environment.

Hazardous Environments: Suitable for hazardous settings, the controller module aligns with NFPA Class 1, Div. 2 standards, enabling its safe deployment in areas exposed to potentially explosive materials, thereby broadening its potential applications.

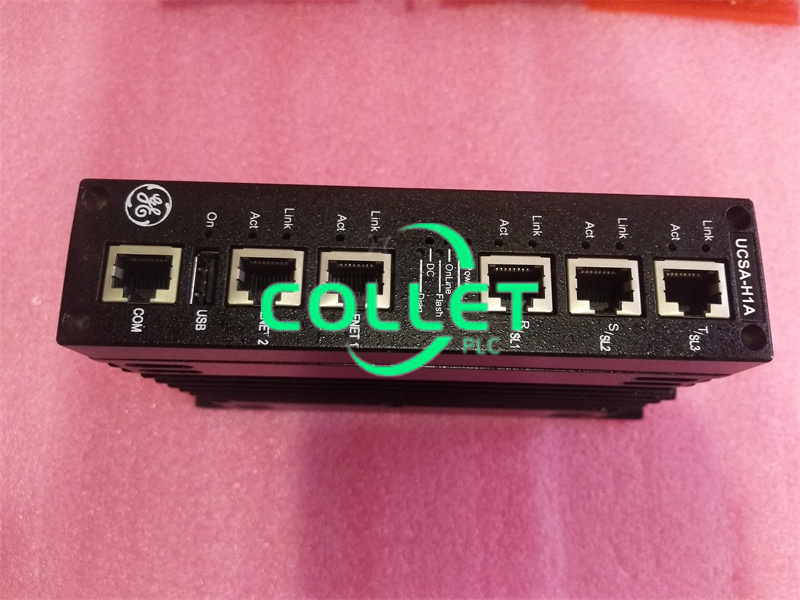

Front Faceplate Connectivity: The module's front faceplate offers user-friendly connectivity options, including six female jack connectors for secure cabling, supplemented by a USB port to facilitate data transfer and configuration. Integrated LED indicators provide valuable information on the module's status and operations.

LED Indications: The faceplate's LED indicators offer crucial insights into the controller's condition. Link/Act LED indicators on the left side offer real-time feedback on network connections. Centrally located LED indicators labeled Power, Boot, Online, Flash, DC (for power source status), and Diag (diagnostic status) simplify monitoring of the controller's health and fault detection.

Ethernet Connectivity: Through jack connectors, the module supports Ethernet connections. This facilitates seamless integration with control systems like Mark VI, Mark VIe, or EX2100 excitation controls, and enables communication with maintenance and operator stations for remote monitoring and control capabilities.
