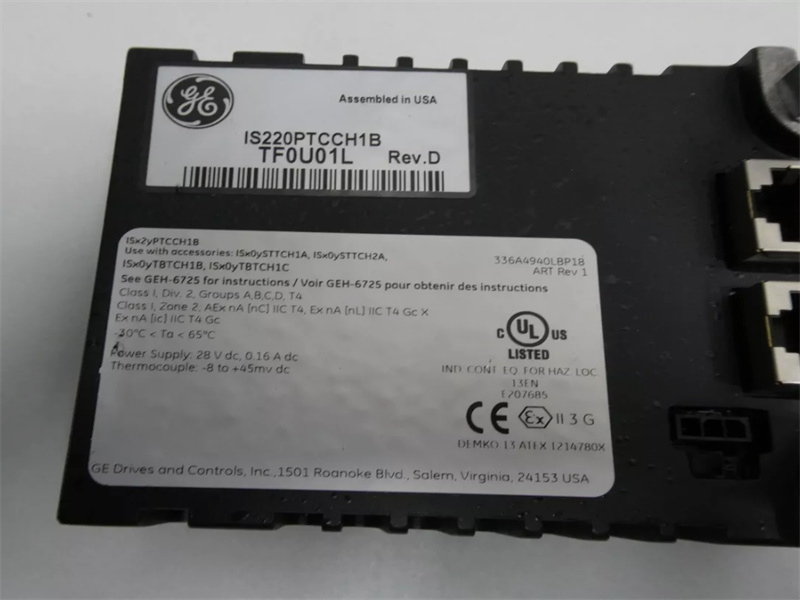

IS220PTCCH1B GE MKVIe, IO PACK, TC IN, BASIC, BPPC

Function: Thermocouple Input Module
Number of Channels: 12
Thermocouple Types: E, J, K, S
Common Mode Voltage: +5 Volts
Normal Mode Rejection: 250mV
Span: -8 mv + 45
Operating temperature: -30 to 65 °C
Availability: In Stock
  • Item NO.:

    IS220PTCCH1B
  • Payment:

    T/T
  • Price:

    $4230
  • Product Origin:

    U.S.A.
  • Shipping Port:

    Xiamen
  • Lead Time:

    5-7 days
  • Goods Stock:

    2
  • Product weight:

    0.5 kg

Manufacture
GE
Model
IS220PTCCH1B
PN No. IS220PTCCH1B
Catalog
Mark VIe
Description
IO PACK, TC IN, BASIC, BPPC
Origin U.S.A.
HS CODE 85389091
Dimension 8.26*4.19*12.1 (CM)
Weight 0.5 kg

Description:

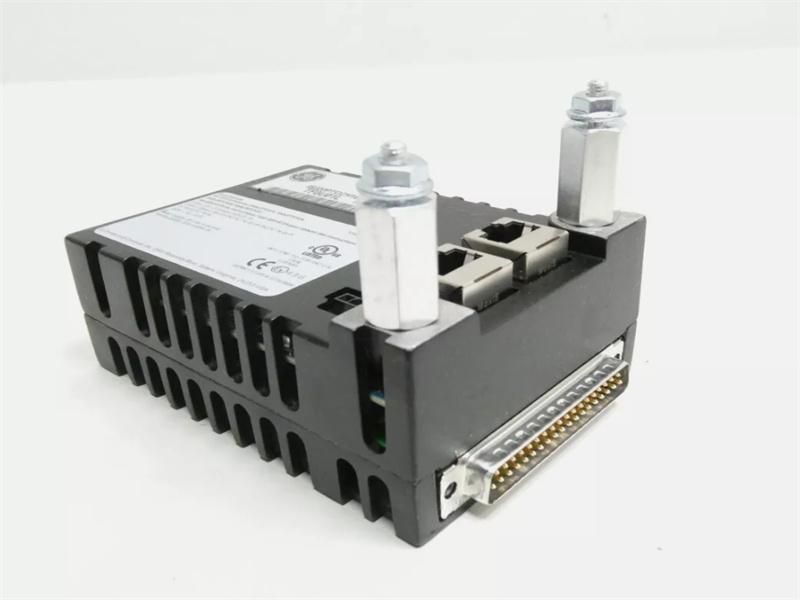

The IS220PTCCH1B REV F is a Thermocouple Input Module designed and manufactured by General Electric as part of the Mark VIe Series, utilized in GE's Distributed Control Systems. This module serves as the electrical interface between one or two I/O Ethernet networks and a thermocouple input terminal board. It comprises a processor board shared across all Mark VIe distributed I/O packs and an acquisition board specific to the thermocouple input function. The module can accommodate up to 12 thermocouple inputs, with two modules capable of handling 24 inputs on the TBTCH1C terminal board. In a TMR configuration with the TBTCH1B terminal board, three modules are used, each with its own cold junction, but only 12 thermocouples are supported. Power input is via dual RJ45 Ethernet connectors and a three-pin power input, while output is through a DC-37 pin connector that attaches directly to the corresponding terminal board connector. Visual diagnostics are facilitated by indicator LEDs, and local diagnostic serial communications can be performed through an infrared port.

To install the IS220PTCCH1B REV F, follow these steps:
1. Securely mount the chosen terminal board.
2. Connect one PTCC I/O module for simplex or three PTCC I/O modules for TMR directly to the terminal board connectors.
3. Mechanically secure the modules using threaded studs adjacent to the Ethernet ports, which engage with a mounting bracket designed for the specific terminal board type. Ensure there is no right-angle stress on the DC37 connector between the module and the terminal board. This adjustment should only be necessary once during the product's lifespan.
4. Depending on your system configuration, connect one or two Ethernet cables. The module will operate on either port, and if dual connections are used, it is common to link ENET1 to the network connected with the R controller.
5. Connect the side power connector of the module to power it up. There is no need to power off the cable before connection due to the built-in soft-start feature that manages current inrush upon power application.
6. Configure the I/O module as needed using the ToolboxST application.

Operational features include:
- A high-speed processor equipped with RAM and flash memory
- Two fully independent 10/100 Ethernet ports with connectors
- A hardware watchdog timer and reset circuit
- A local ambient temperature sensor
- An infrared serial communications port
- Status-indicating LEDs
- Electronic ID and the capability to read IDs on other boards
- Advanced programmable logic supporting the acquisition board
- An input power connector with a soft start/current limiter
- Local power supplies with sequencing and monitoring capabilities

Datasheet Link:

IS220PTCCH1B GE MKVIe, IO PACK, TC IN, BASIC, BPPC PDF Datasheet
