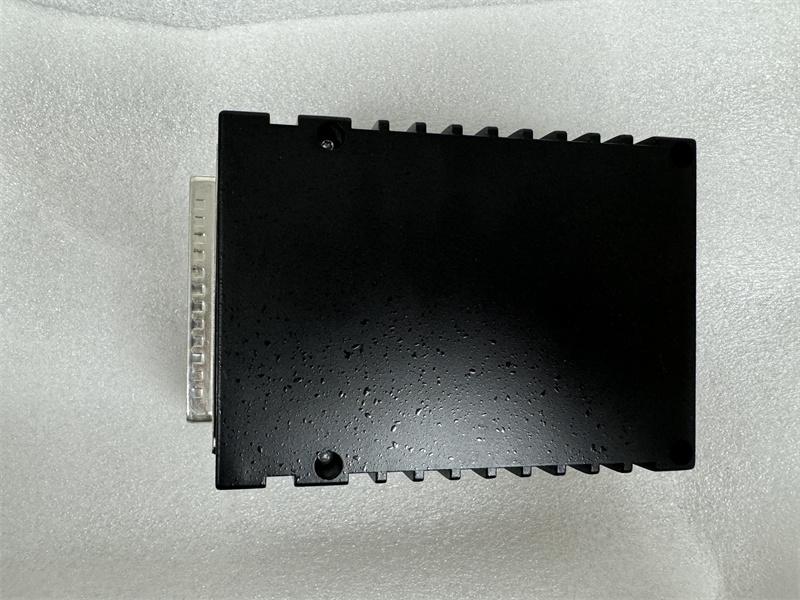

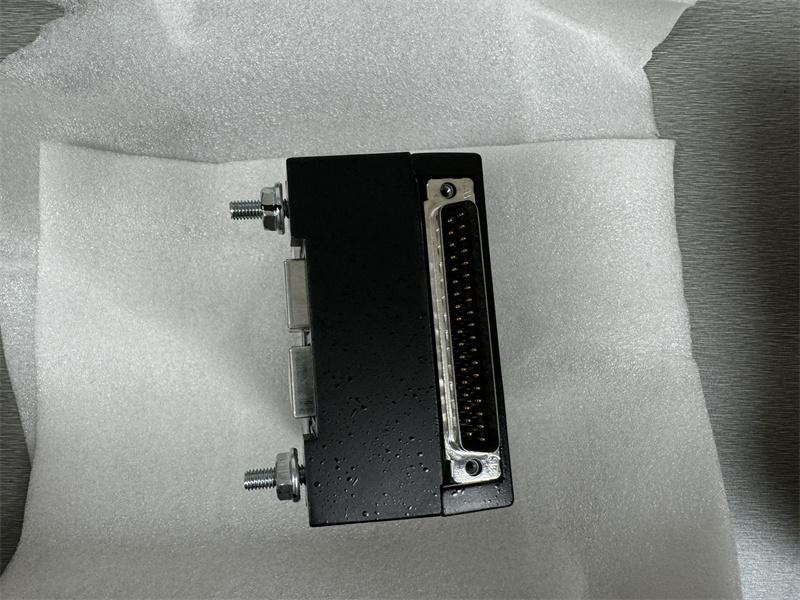

IS220PCLAH1A GE MKVIe, Core Analog Pack, BPPB, for Aero Units

Description:

IS220PCLAH1A is a Core Analog I/O Module manufactured and designed by General Electric. It is a part of the Mark VIe Series used in distributed control systems. The Core Analog I/O for Aero-derivative gas turbines (PCLA) and related Core Analog (SCLS and SCLT) terminal boards supply the majority of the analog signal I/O needed to run an engine. Thermocouple inputs, RTD inputs, voltage inputs, and inputs and outputs for a 4-20 mA current loop are all provided by PCLA and SCLT. PCLA can be used in control systems with dual controller TMR I/O, dual controller simplex I/O, simplex controller TMR I/O, simplex controller TMR I/O, and simplex controller TMR I/O. One or three connected PCLA fans are signaled by a single SCLT terminal board (s).

Datasheet Link:

IS220PCLAH1A GE MKVIe, Core Analog Pack, BPPB Datasheet General Electric
