Manufacture |
GE |
|
Model |
IS215VCMIH2C |
| PN No. | IS215VCMIH2C |
|
Catalog |
Mark VI |
|
Description |
VME Communications Card
|
| Origin | USA |
| HS CODE |
85389091 |
| Dimension |
20*10*5 (CM) |
| Weight | 0.5 kg |
Description:

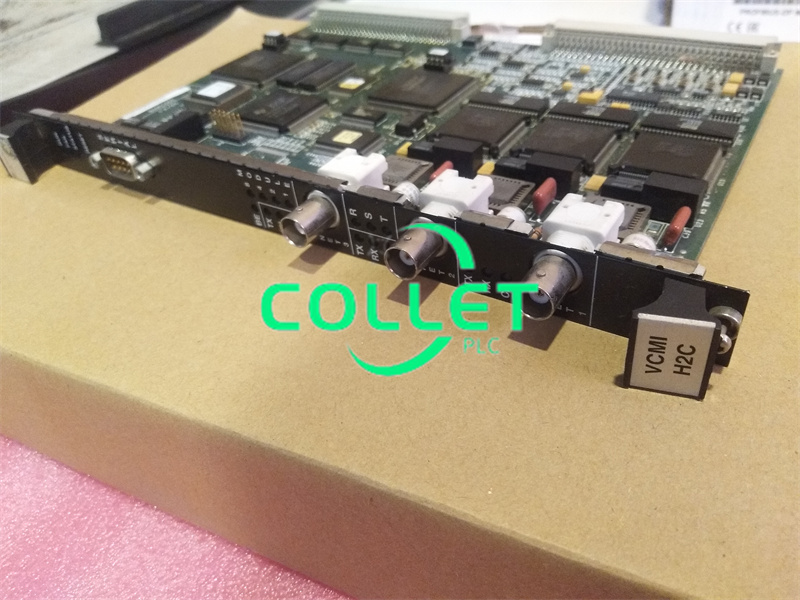

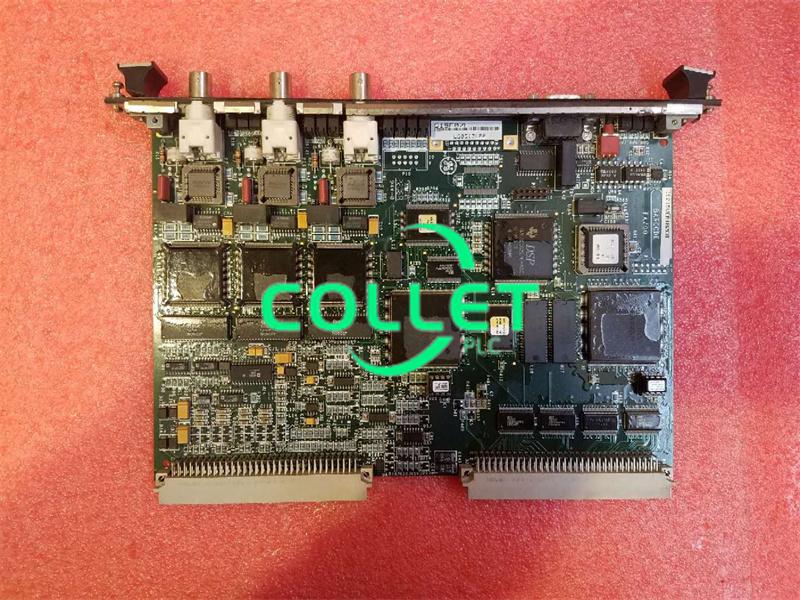

IS215VCMIH2C GE MKVI, VME Communications Card
VCMI-Bus Master Controller
The bus master controller, known as the VCMI, is the communication interface between the controller and the I/O boards, and the communication interface to the system control network, known as IONet, VCMI is also the VME bus master in thecontrol racks and l/O racks, and manages the IDs for all the boards in the rack and their associated terminal boards. In the case of TMR systems the three-networkversion (VCMIH2X) votes all incoming data from the I/O boards and passes the results to the controller for processing. The two versions of VCMl boards are shownin Figure 9-6.
Frequently Asked Questions:
1.What's the role of VCMI in IS215VCMIH2C?
VCMI is the communication interface and VME bus master.
2.How does VCMIH2X work in TMR systems?
It votes data from I/O boards and sends results to the controller.
Datasheet Link:
IS215VCMIH2C GE MKVI, VME Communications Card PDF Datasheet
