IS215VCMIH2BC GE MKVI, VME Communications Card-colletplc

Description:

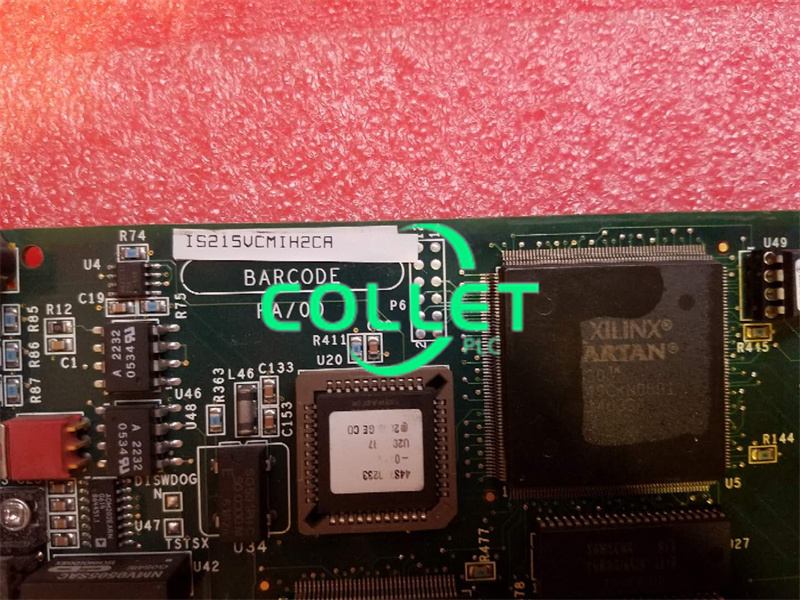

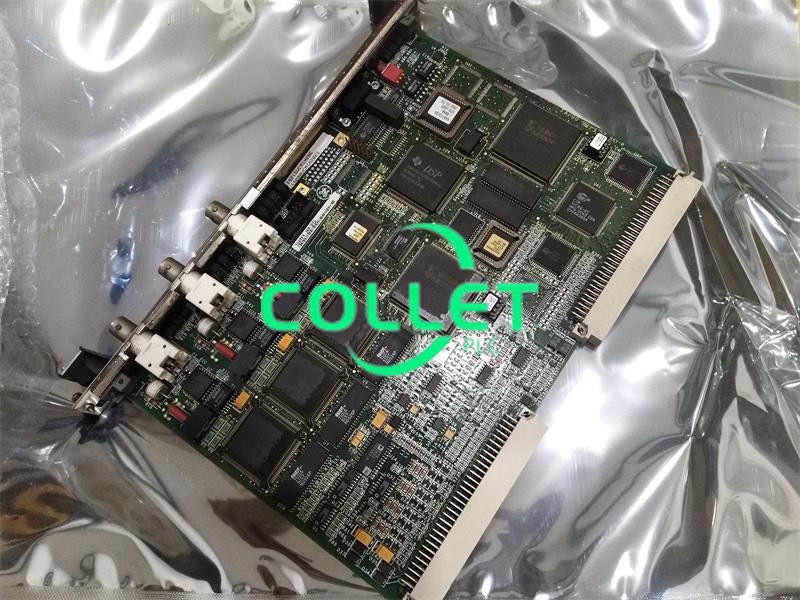

IS215VCMIH2B is a VME Communication Interface Card manufactured by General Electric as part of the Mark VI Series used in gas turbine control systems. The VME Bus Master Controller (VCMI) board serves as the communication interface between the controller and the I/O boards as well as the communication interface to the IONet system control network. The VCMI also serves as the VME bus master in the control and I/O racks, managing the IDs for all of the boards in the rack and their related terminal boards. Through the J301 backplane connector, the VCMI card receives analog and digital feedback on power status.

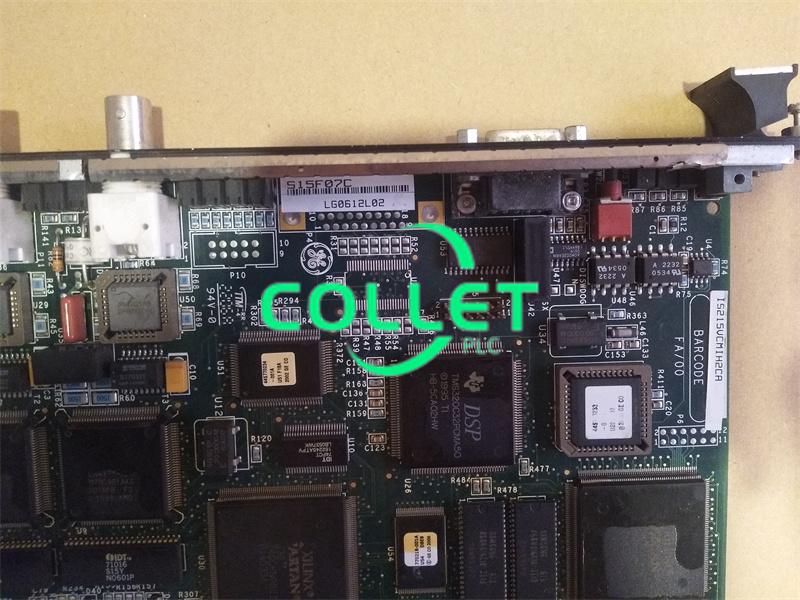

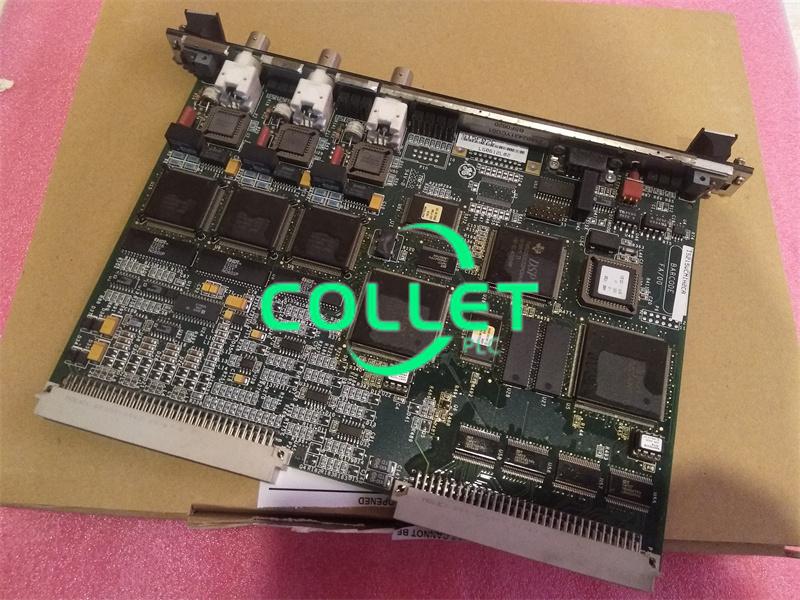

The VCMI board is available in two versions: VCMIH1 and VCMIH2. The board has four-port connections on the front faceplate. Three IONet connectors and one serial port are included. Three LED indicators are located above each IONet connector. "TX," "RX," and "CD" are the labels on them. The board also contains four LEDs labeled 1,2,4, and 8 as well as LED indications labeled Run/Fail/Status (positioned above a push-button reset switch). The faceplate is connected to the main board using screws.

Datasheet Link:

IS215VCMIH2BC GE MKVI, VME Communications Card Datasheet
