IS215VAMBH1A GE MarkVI, Acoustic Monitoring Card

Description:

The IS215VAMBH1A is an acoustic monitoring card assembly module developed by GE under the Mark VI series. It comprises two TAMB boards, providing eighteen channels of signal conditioning and eighteen channels of acoustic monitoring. This board, along with one or two TAMB terminal boards, supports acoustic monitoring for frame 6, 7, or 9 gas turbines.

Due to its high impedance DC bias, the board can detect open connections between a TAMB board and a charge amplifier. The DC bias control allows for RETx, SIGx, and return line options, as well as 28 V bias or ground applied to the signal line. Each channel outputs a buffered BNC signal that is the input signal minus the DC bias.

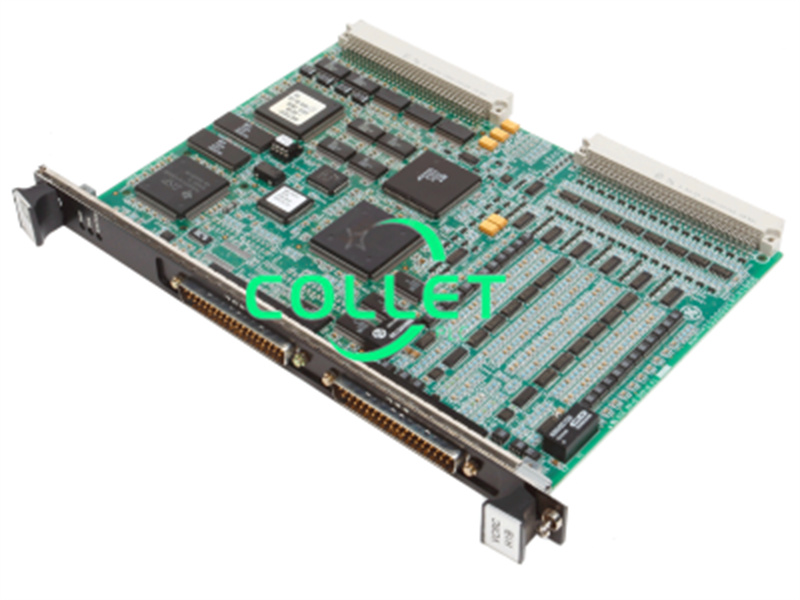

The module includes a front faceplate, two D-type cable connectors, and three LED board status indicators. Two backplane connectors are situated side by side on the board's rear, along with vertical pin connectors. The board contains numerous integrated circuits, including Xilinx field-programmable gate arrays (FPGAs). Additionally, there are two inductor coils situated between the backplane and the connections.

On the board, there are nine 3-pin jumpers. One side is connected to the return signal (RETx), while the middle pin is connected to PCOM.

IS215VAMBH1A Installation
Each channel provides current-limited +24 Vdc and +24 Vdc power supply outputs. A constant current source is attached to the SIGx line for PCB sensors. When the signal is a logic-level low through an output on the VAMB, the input signal, CCSELx, is set to False. The continuous current output must be deselected until the configuration parameters are loaded, so the output must be False (logic-level low) upon power-up.

IS215VAMBH1A Operation
The VAMB program features:

- 18 channels of acoustic monitoring
- Mark VI toolbox for changing configuration constants
- 40 ms frame rate updates for signal space variables utilized by the application software
- Offline and online diagnostics to examine the hardware
- A/D Compensation

The A/D compensation function eliminates any gain or offset errors caused by initial component variations. For the A/Ds it controls, the firmware has an auto-calibration capability. Each of the 18 analog channels is compared to a gold standard A/D channel during auto-calibration. A standard high-precision voltage reference and the A/D common are used to calibrate the gold standard A/D channel.

A/D Gain Adjust
The channel gain in the hardware is controlled by the configuration parameter "Gain" defined for each channel. This enables the amplification of low-level signals in the analog-to-digital conversion process to improve resolution. There are four gain options: 1, 2, 4, and 8. The gain setup is written to the FPGA VSPA input amplifier 4x and 2x gain control registers via the channel control. Because the signal is divided by the gain factor in the firmware to result in a net gain of 1 for the signal regardless of the gain factor used, the signal level estimated by the VAMB firmware will not change with a change in the Gain parameter.

Diagnostics
The state of the VAMB front panel is indicated by three LEDs at the top:
- The RUN state is flashing green.
- The FAIL condition is a solid red.
- The third LED is generally off but will display a continuous orange if the board has a diagnostic alarm.

Each input has two customizable degrees of system limit checking. These limits can be set to enable/disable, >= or =, latching/non-latching, and latching/non-latching. Out-of-limit conditions are reset with RESET SYS. If this limit is exceeded, a signal is generated by the system limit logic.
