Manufacture |
GE |
|
Model |
IS215UCVEM06A |
| PN No. |
IS215UCVEM06A |
|
Catalog |
MKVI |
|
Description |
VME CPU Card(1 E-Net, 2 ISBUS, uses 1 slot) |
| Origin | U.S.A. |
| HS CODE |
85389091 |
| Dimension |
38*20*7 (CM) |
| Weight | 0.8 kg |
Description:

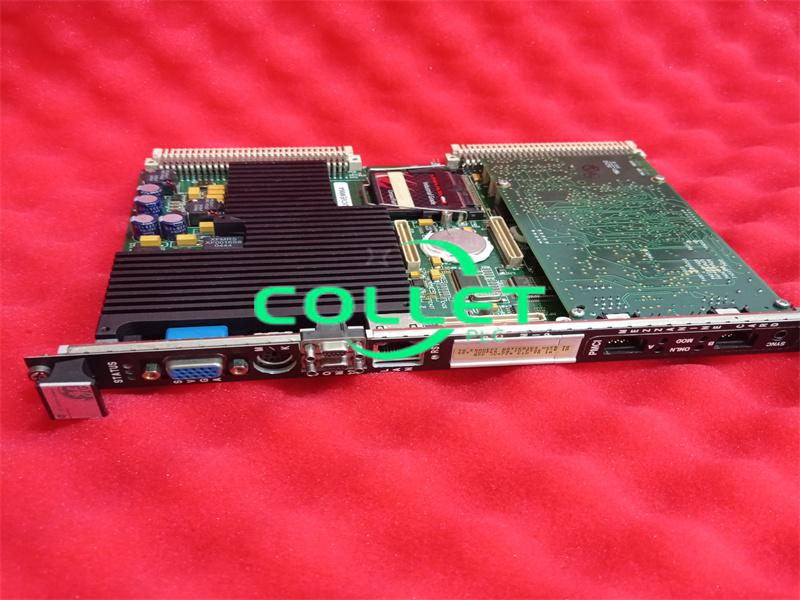

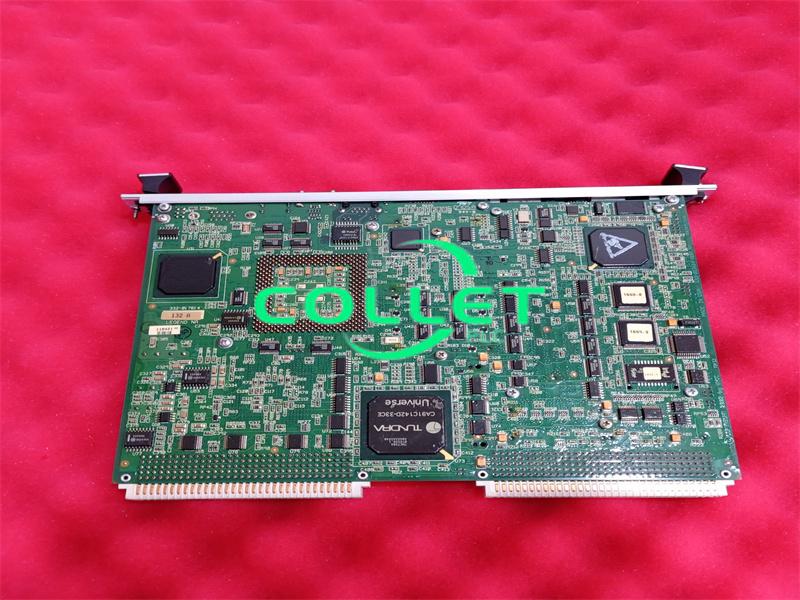

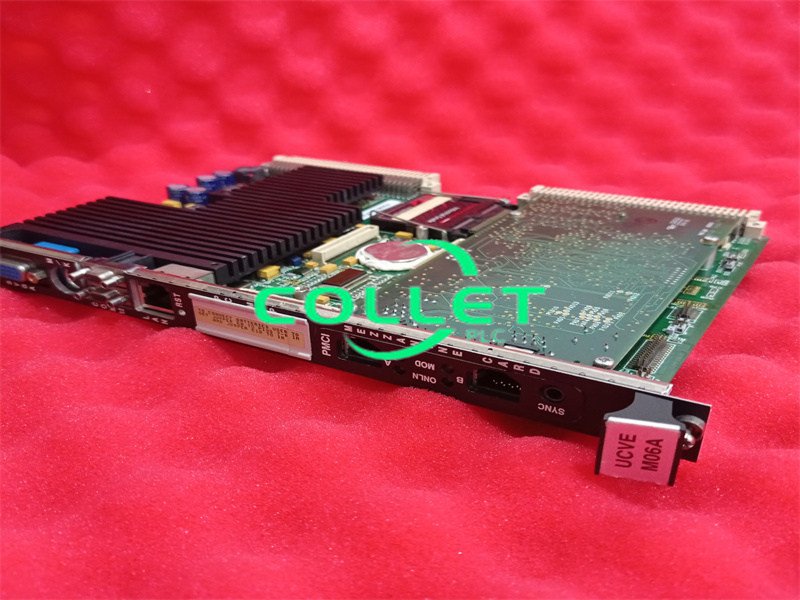

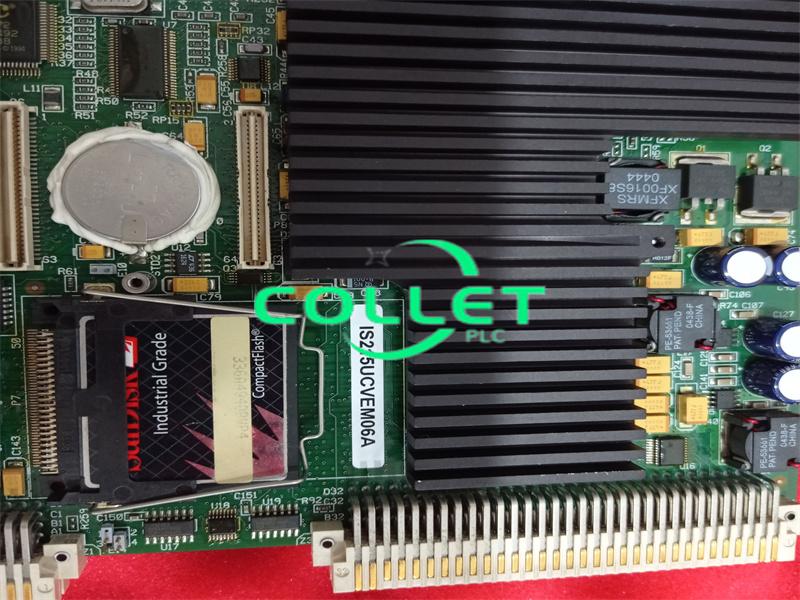

The IS215UCVEM06A is a circuit board that is used in General Electric’s Speedtronic Mark VI turbine series. The IS215UCVEM06A is an ethernet connection circuit board. Then IS215UCVEM06A uses multiple ports on the front of the device. These ports are different shapes and sizes. These ports are used to connect Ethernet cables along with COM ports. The IS215UCVEM06A uses various components such as condensers, diodes, resistors, an SD card, a battery, and integrated circuits to name a few. Each component works individually to help the circuit board function as a whole. The condensers save various amounts of the energy for the circuit board. The diodes direct energy in one direction but not the other. Resistors are a way for the circuit board to get rid of energy that the circuit board doesn’t use. An SD card is used as information and data storage. The integrated circuits are used to control the circuit board. They hold all the data that tells the circuit board how to perform. The IS215UCVEM06A slides into place and has male terminals in the back that are used to attach this circuit board with your system. There are also other attachment places on the circuit board as well. The IS215UCVEM06A has a large cooling unit that takes up half of the circuit board. For more extensive details please refer to the manuals and informational data sheets produced by General Electric about this circuit board.
