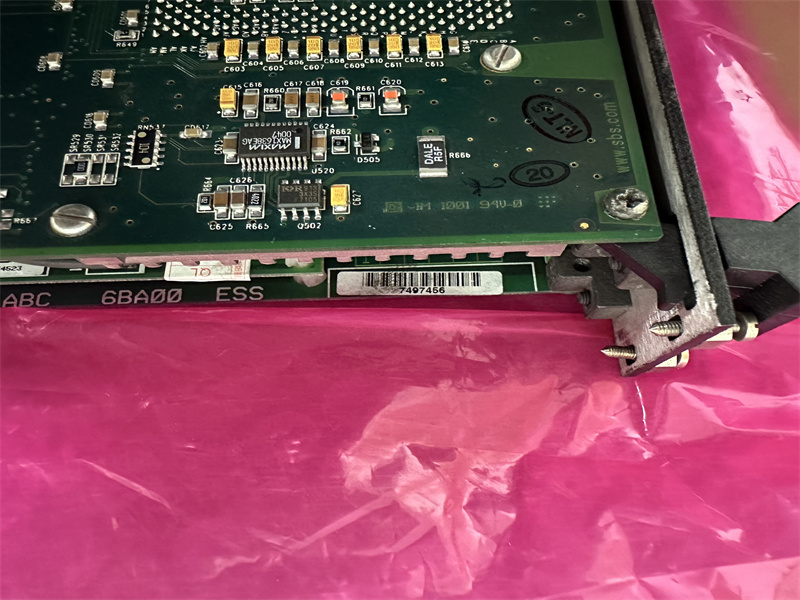

IS215UCVDH7A GE Double Slot Controller Board

NEW AND ORIGIN ITEM IN STOCK

WITH ONE YEAR WARRANTY

Hope anyone enquire from us,pls click this sales6@nseauto.com
1. lower your support costs
2, Provide on-going availability of automation replacement parts
Quantity available: 1
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets

Description:

IS215UCVDH7A is a Double Slot Controller Board developed by General Electric. It is a part of the Mark VI Series used in GE Speedtronic Gas Turbine Control Systems. A 300 MHz AMD K6 processor, 8 MB of flash memory, and 16 MB of DRAM are used on this double-slot board. Connectivity to the UDH is provided by a single 10BaseT (RJ-45 connector) Ethernet port. A double column of eight status LEDs is present on the UCVD. When the controller is working properly, these LEDs are turned on one at a time in a revolving pattern. The LEDs display a flashing error code that shows the error circumstance when it occurs.

Features
As a VE Controller, the board share a common processor platform with different drive LAN connector options that address specific applications within the VME rack. This model is used in industrial applications that require high speed and reliability.

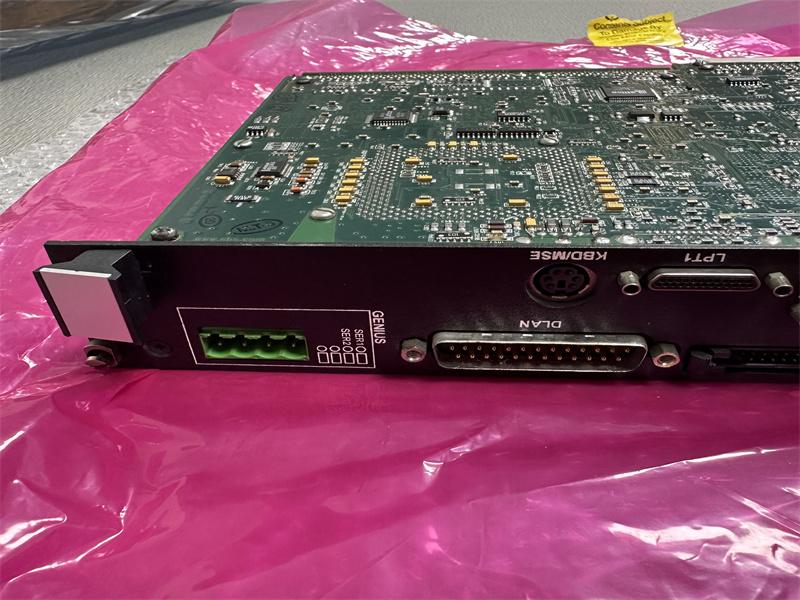

There is one DLAN+ interface, two Genius interfaces, and two ISBus interfaces on the board. All of these interfaces are located on the front faceplate.
The DLAN+ interfaces provide several communications services, including direct access to all 255 Status S pages and the ability to send directed and group command messages to any device Status S page as long as user logic instruction has been established.
Unlike the UCVDH1 controller, the UCVDH7 does not provide an ISBus interface.

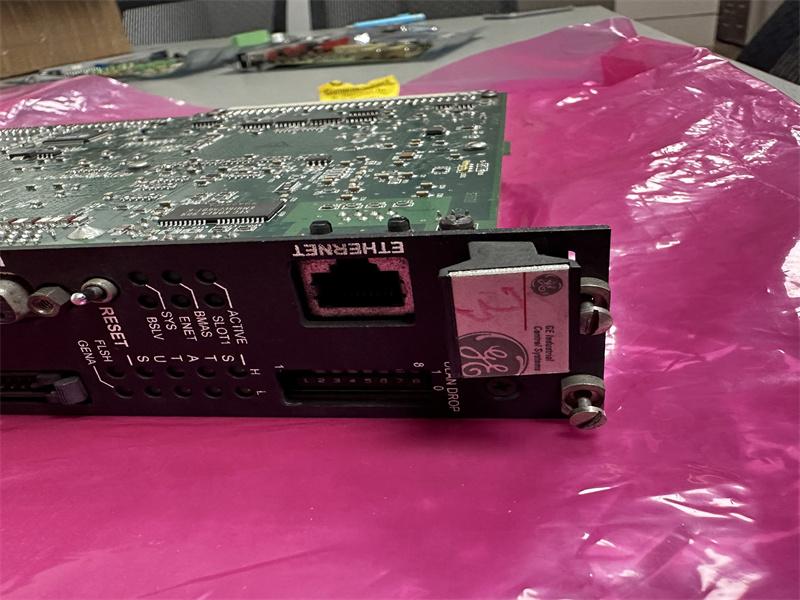

Module LEDs
LEDs on the faceplate provide status details as follows:
ACTIVE: Processor is active
SLOT 1: Controller configured as slot 1 controller in VME rack
BMAS: VME master access is occurring
ENET: Ethernet activity
BSLV: VME slave access is occurring
STATUS: Display rotating LED pattern when OK, Display flashing error code when faulted
FLSH: Writing to Flash memory
GENX: Genius I/O is active
