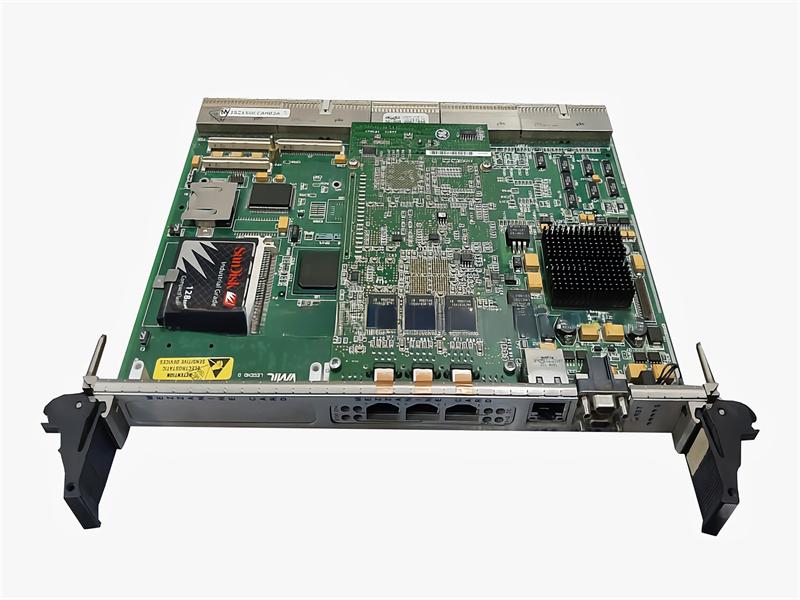

IS215UCCAM03A GE Mark VIe, Compact PCI Processor Module

Description:

The IS215UCCAM03A board serves as a pivotal component within the Mark VIe Turbine Control System Series by General Electric, embodying advancements over its predecessor, the Mark V system. It is an enhanced iteration of the IS215UCCAH3 board, integrated with an IS200EPMC module, boasting 128 MB of flash memory and an equal amount of DRAM. This configuration underscores its role in sophisticated control and management applications across a broader spectrum, including gas, wind, and steam turbines, compared to the more limited scope of the Mark V system.

Key Hardware Features and Specifications:

- Form Factor & Indicators: As a CompactPCI single-slot processing board, the IS215UCCAM03A is equipped with multiple LED indicators on its front panel. These include UDH Ethernet Status, general Status, DC power, Diagnostic (Diag), IONet Ethernet, and ON indicators. The UDH Ethernet LED exhibits three distinct statuses—Active (blinking), Speed (green for 100 BaseTX, yellow for 10 BaseT)—which can illuminate based on environmental conditions or power demands.

- Environmental Tolerance: The board is designed to operate within a temperature range of 0 to 60°C, with an optimal storage range between -45 to 85°C. It maintains functionality in humidity levels spanning 5% to 95% and supports operational altitudes up to 10,000 feet above sea level, with storage capabilities extending to 40,000 feet.

- Power Requirements: It necessitates dual voltage supplies: +3.3V DC at typical 3.5A (maximum 4.25A) and +5V DC at 150mA typical (maximum 300mA).

- Networking & Communication Protocols: The EPMC Ethernet Interface comprises three ports, featuring an RJ-45 connector alongside 10BaseT and 100BaseTX twisted pair connectors. This interface facilitates diverse communication protocols vital for system integration:
    - Primary Ethernet Interface: Manages various TCP/IP functions, including controller-to-toolbox communication and alarm messaging to Human Machine Interfaces (HMIs).
    - EGD Protocol: Supports application-guided interactions with CIMPLICITY® HMIs.

- Controller & Slot Configuration: The IS215UCCAM03A board mandates at least one controller per installation and accommodates up to four slots within a CPCI rack. A maximum of two power supplies are supported, highlighting the importance of maintaining power integrity; removal of the first slot's controller halts all subsequent controller operations. Safe removal procedures involve disconnecting power from the rack, potentially via a remote switch, emphasizing safety protocols during maintenance or upgrades.

In summary, the IS215UCCAM03A represents a significant technological leap forward in turbine control systems, offering expanded functionality, enhanced connectivity options, and robust environmental adaptability, crucial for modern power generation infrastructure.

Datasheet Link:

IS215UCCAM03A GE Mark VIe, Compact PCI Processor Module PDF Datasheet
