Description:

The IS200VAICH1D  is one of several  Analog VME boards available for the General Electric Mark VI turbine control system.  Boards like this one can be used in either TMR or simplex systems depending on how they are made, so please be sure to order the correct board for your particular system and architecture.  AX Control has several VAIC boards in stock.

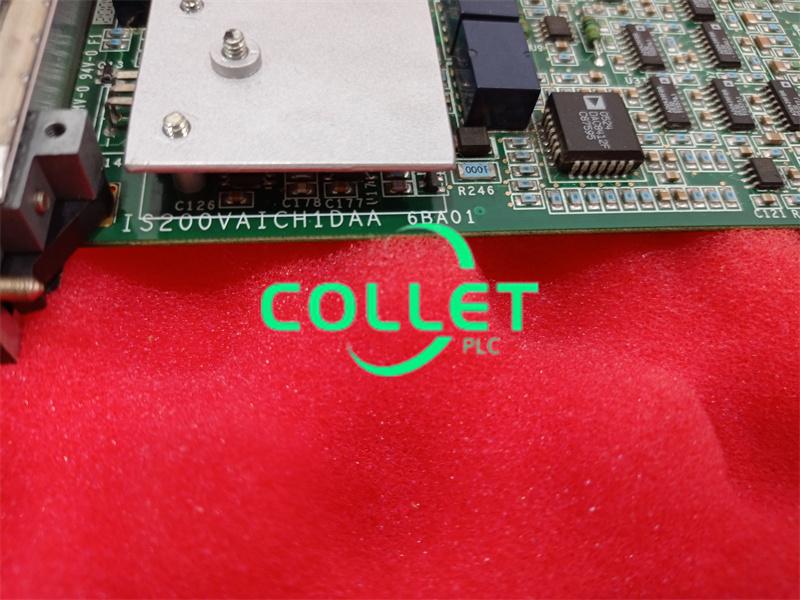

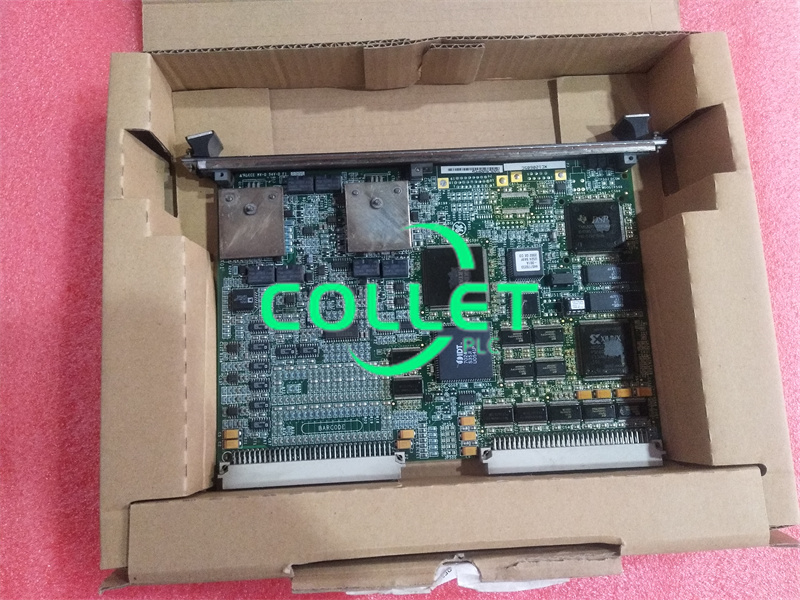

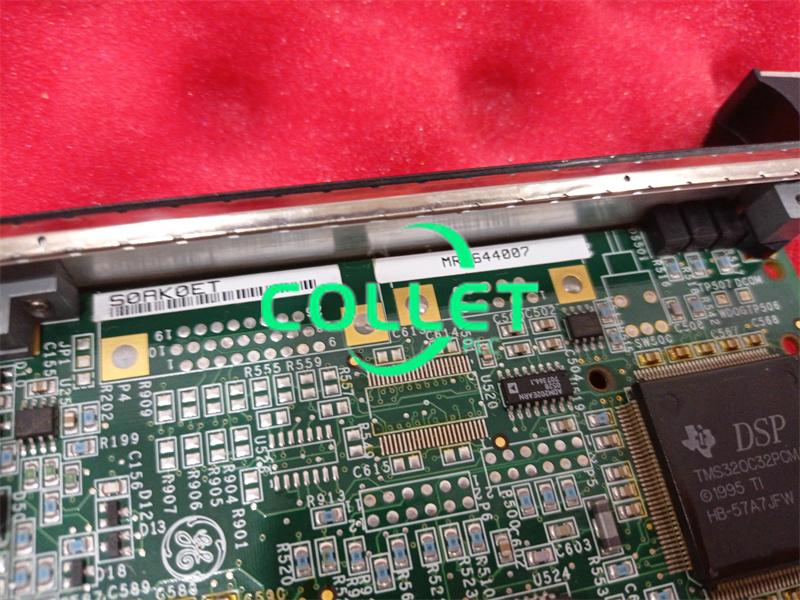

The IS200VAICH1D is an I/O processor board.  It works in conjunction with two TBAI terminal boards.  This is a single-width VME board with a high-speed CPU that offers digital filtering.  It uses a 32-bit floating-point format.  The board contains the sensor characteristic library needed for RTD and thermocouple linearizations and other quantity and control capabilities.  Configurations can be updated through software while the unit is running.

As a single-width board, the unit has a narrow front faceplate with a retaining clip located at each end.   The front faceplate has three LED indicators built into its front.  These will indicate updates to status, as well as information on run and fail issues.

IS200VAICH1D Compatibility
The VAIC board comes in two generations, each with its own terminal board. All versions before to and including VAICH1C are included in the original VAIC. This generation also includes VAICH1B. These boards can sustain up to 500 load resistance at the end of 1000 feet of #18 wire while driving 20 mA outputs. For optimal operation, this generation of board requires terminal board TBAIH1B or earlier. They are also compatible with all DTAI terminal board revisions.

Installation
To install the V-type board, follow these instructions.

Turn the VME processor rack off.
To seat the board's edge connectors, slide it in and push the top and bottom levers in with your hands.
Tighten the captive screws on the front panel's top and bottom.
