IS200TVIBH2BBB GE MKVI, Vibration Terminal Board-colletplc

Description:

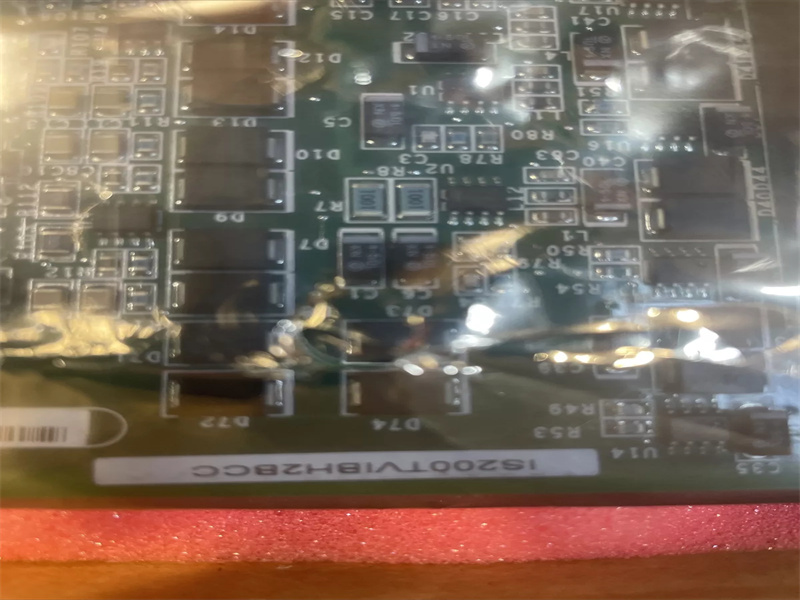

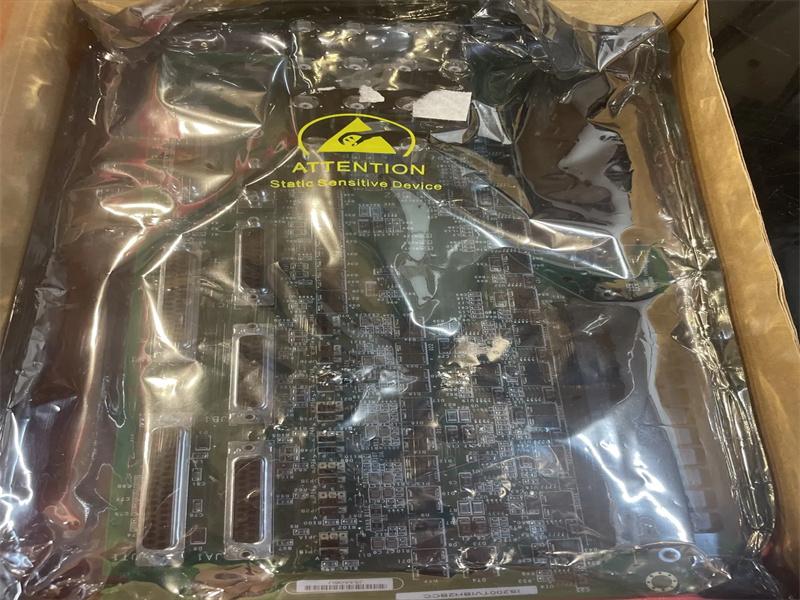

IS200TVIBH2B is a vibration terminal board developed by GE. It is a part of Mark VI control system. The TVIB system is compatible with Bently Nevada's Proximitor, Seismic, Accelerometer, and Velomitor probes. These vibration probes receive power from the VVIB boards, operating in either Simplex or TMR (Triple Modular Redundancy) mode. After the probes capture signals, they transmit these signals back to the VVIB boards. Here, the analog-to-digital conversion process takes place, transforming the signals before sending them over the VME bus to the central controller.

Shaft Vibration Monitoring in Mark VI System
The Mark VI system employs Bently Nevada probes for meticulous shaft vibration monitoring, ensuring precision and reliability in assessing machinery health. A maximum of 14 probes can be directly linked to the TVIB terminal board, where two of these probes can be connected via cabling to the VVIB board.
These probes play a pivotal role in capturing vibration data crucial for comprehensive monitoring and analysis of machinery dynamics within the system.
Signal Processing and Transmission
Upon connection to the terminal board, the signals from these probes undergo processing via the VVIB board.
The VVIB board digitizes displacement and velocity signals, facilitating the transmission of this digitized data over the VME bus to the central controller.
This transmission mechanism ensures that crucial vibration data reaches the controller for further analysis and decision-making processes.

Datasheet Link:

IS200TVIBH2BBB GE MKVI, Vibration Terminal Board Datasheet
