IS200TSVOH1B GE MKVI, Servo Terminal Board-colletplc

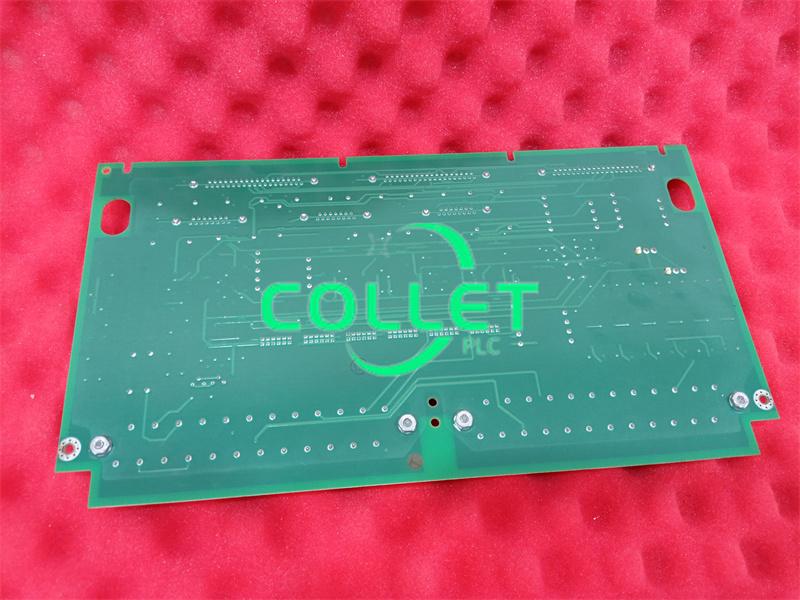

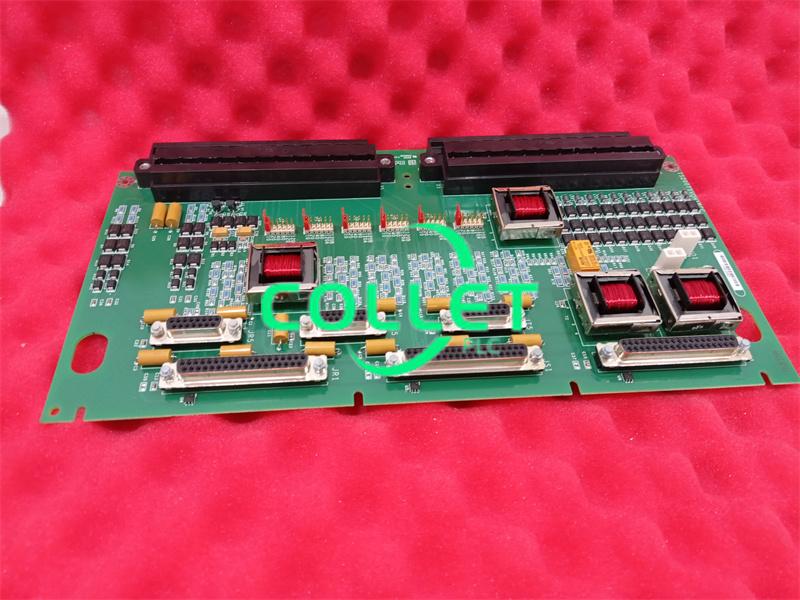

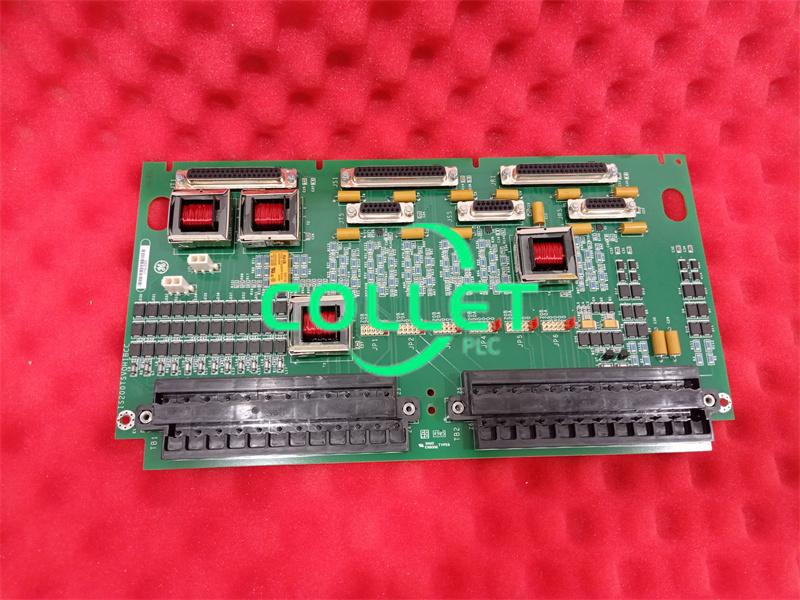

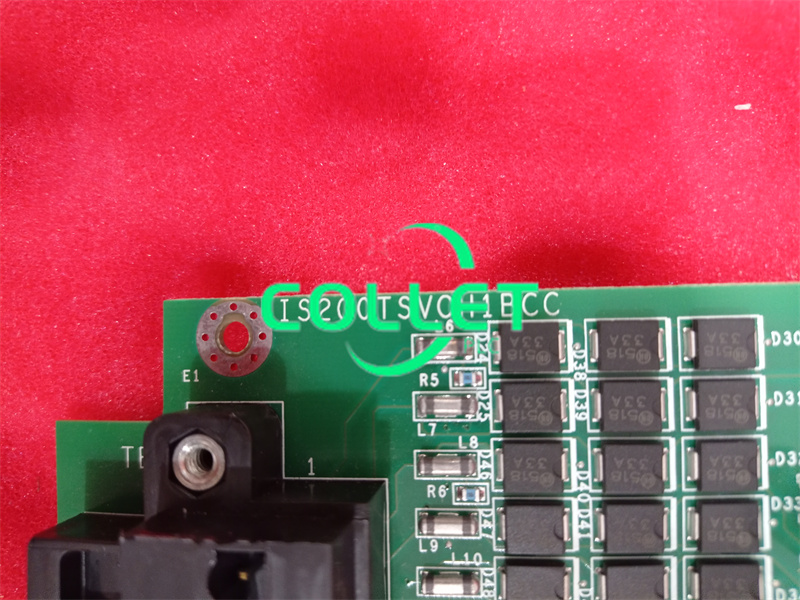

IS200TSVOH1B is a Servo Terminal Board developed by General Electric

  • Item NO.:

    IS200TSVOH1B
  • Payment:

    T/T
  • Price:

    $4230
  • Product Origin:

    U.S.A.
  • Shipping Port:

    Xiamen
  • Lead Time:

    5-7 days
  • Goods Stock:

    2
  • Product weight:

    0.5 kg

Manufacture
GE
Model
IS200TSVOH1BBB
PN No. IS200TSVOH1BBB
Catalog
MKVI
Description
Servo Terminal Board
Origin U.S.A.
HS CODE 85389091
Dimension 37*30*4 (CM)
Weight 0.5 kg

Description:

IS200TSVOH1B is a Servo Terminal Board developed by General Electric. It is a part of Mark VI turbine control system. The TSVO connects to two electro-hydraulic servo valves, which operate the steam/fuel valves. Linear variable differential transformers are used to measure valve position (LVDT). Two cables to the I/O processor (VSVO) use the J5 plug on the front of the VSVO and the VME rack's J3/4 connectors. The JR1 connector is used for Simplex signals, and the JR1, JS1, and JT1 connectors are used for TMR signals. JD1 and JD2 are plugs for an external trip from the protection module.

IS200TSVOH1B Installation
Sensors and servo valves are wired directly to the terminal board's two I/O terminal blocks. Each block is held together with two screws and has 24 terminals that accept wiring up to #12 AWG. To the left of each terminal block is a shield termination strip connected to chassis ground. External trip wiring is connected to JD1 or JD2. In TMR configuration, each servo output can have three coils. JP1-6 is used to jumper select each coil current.

Operation
The servo board has four channels: bi-directional servo current outputs, LVDT position feedback, LVDT excitation, and pulse rate flows inputs. The TSVO can excite and accept input from up to six LVDT valve position inputs. For each servo control loop, one, two, three, or four LVDTs are available. These signals come through TSVO and go directly to the VSVO board front at J5 if three inputs are used.
In Simplex applications, each servo output channel can drive one or two coil servos, while in TMR applications, each servo output channel can drive two or three coil servos. The two-coil TMR applications are for 200# oil gear systems with two control modules driving one coil each and no servo coil interface on the third control module.
With a maximum two-way cable resistance of 15 ohm, servo cable lengths of up to 300 meters (984 feet) are supported. Because servo coils come in a variety of shapes and sizes, a number of bidirectional current sources are jumper selectable.
