IS200TSVCH2A GE Mark VI, SERVO TERMINAL BOARD

Description:

The IS200TSVCH2A servo-valve terminal board weighs about 2.25 pounds and serves as a direct interface for actuators and external sensors. By utilizing boards like this, it's possible to greatly reduce or completely eliminate the initial instrumentation previously used between the system and these external components. This not only minimizes the risk of single-point failures but also enhances system reliability. Additionally, it helps in cutting down long-term maintenance requirements and costs.

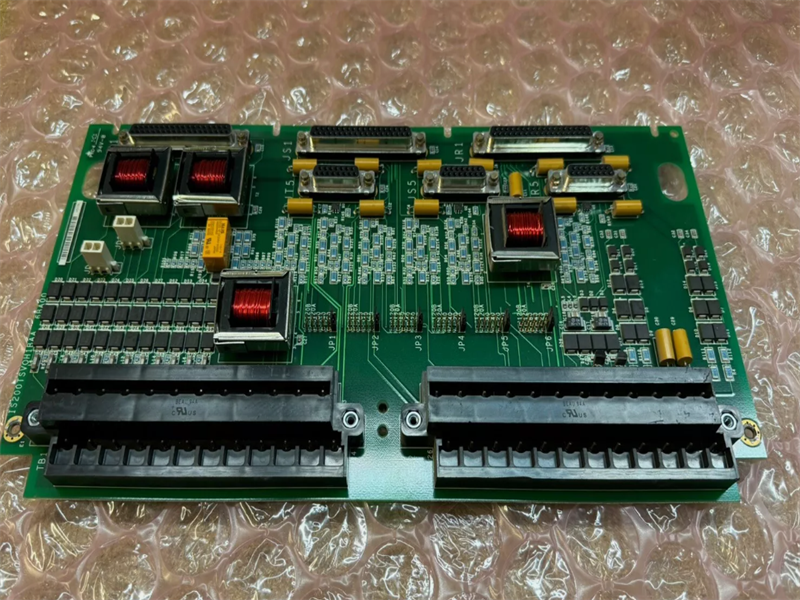

The IS200TSVCH2A features two removable barrier-type terminal blocks located on one of its elongated sides. It is engineered with two pulse rate inputs suitable for heavy-duty applications involving gas and steam. This board is intended to function in tandem with a PSVOH1B pack.

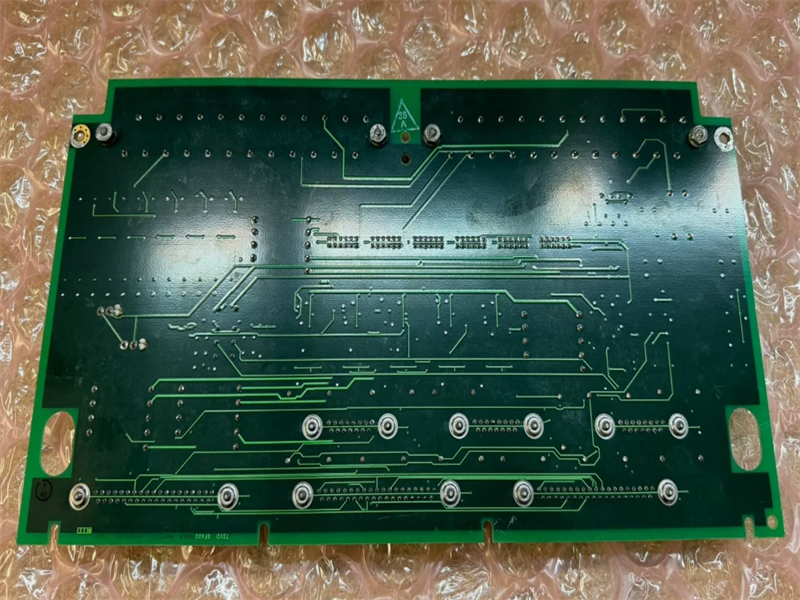

Further components on the IS200TSVCH2A include four transformers, three D-shell connectors, and multiple vertical plug connectors. The board is equipped with several jumper switches, each of which can be configured to one of many settings. Both sides of the board are populated with components, which are clearly marked with reference designations for ease of identification.
