IS200TSVCH1A GE MKVI SERVO TERMINAL BOARD-colletplc

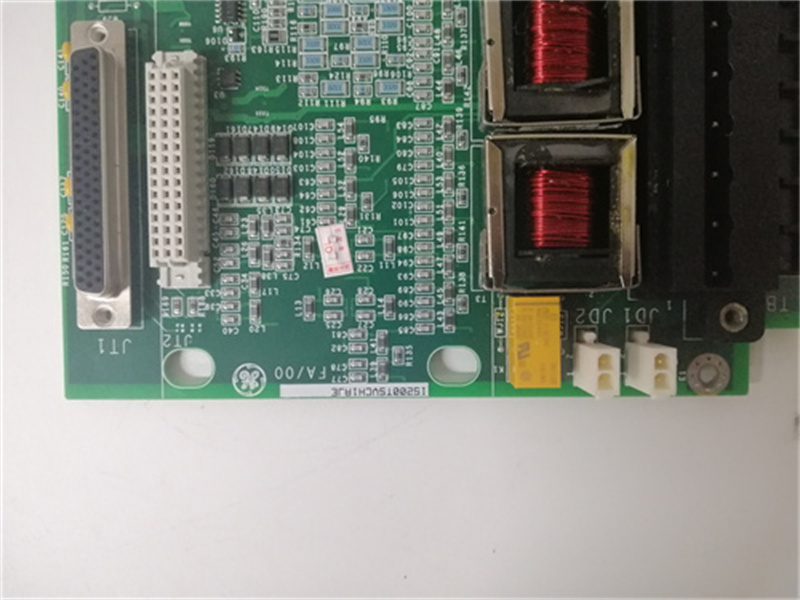

This IS200TSVCH1A model of General Electric printed circuit board

was actually manufactured by GE Energy

  • Item NO.:

    IS200TSVCH1
  • Payment:

    T/T
  • Price:

    $5000
  • Product Origin:

    U.S.A.
  • Shipping Port:

    Xiamen
  • Lead Time:

    5-7 days
  • Goods Stock:

    2
  • Product weight:

    1.2 kg

Manufacture
GE
Model
IS200TSVCH1A
PN No. IS200TSVCH1A
Catalog
MKVI
Description
SERVO TERMINAL BOARD
Origin U.S.A.
HS CODE 85389091
Dimension 38*15*3 (CM)
Weight 0.5 kg

Description:

This IS200TSVCH1A Servo I/O Terminal Board features a unique set of hardware components that are only complicated through this model's inclusion of a singular, functionality-aimed significant product revision. Any change made to the assembly of this IS200TSVCH1A model directly applies to the intended functionality of this model. For starters, this IS200TSVCH1A PCB provides crucial interfacing for two total electro-hydraulic servo valves considered crucial to the greater Mark VIe Series drive assembly. This A-revised product was manufactured with specific applications to both the Mark VIe WSVO servo driver and the PSVO Input/Output pack. This is the extent of the intended application of this TSVC-abbreviated product.

Now that the full range of this IS200TSVCH1A board's functionality has been explored, it is possible to contextualize some of its many hardware elements. A primarily important hardware component affixed to the baseboard of this TSVC module is its internal power supply, which is rated at a voltage capacity of 28 V dc. This power supply is located on the very bottom of the IS200TSVCH1A circuit board, and on its left exists two excitation outputs, labeled by the standard factory nomenclature of TB4/3. Two of the more substantial hardware components affixed to this TSVC product offering's baseboard exist in its set of two total terminal blocks, which provide the main Input/Output functionality of the TSVC.

IS200TSVCH1A Configuration
In a simplex system, jumper JP1 is used to set the proper coil current for servo 1, while jumper JP4 is used to set the correct coil current for servo 2. Each servo output in a TMR system can have three coils. In this scenario, JP 1-3 for servo 1 and JP 4-6 for servo 2 are used to jumper select each coil current. The ToolboxST application is used to configure all other servo boards.


Datasheet Link:

IS200TSVCH1AJE GE MKVI SERVO TERMINAL BOARD Datasheet
