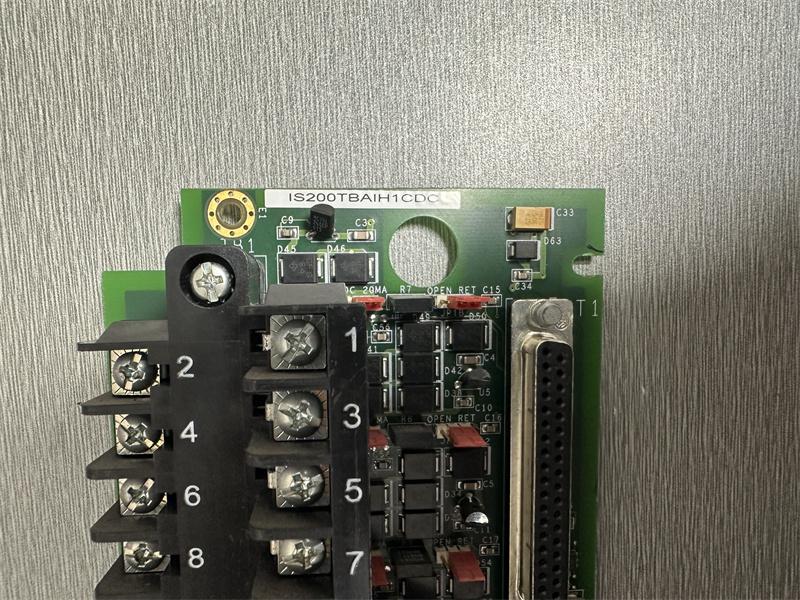

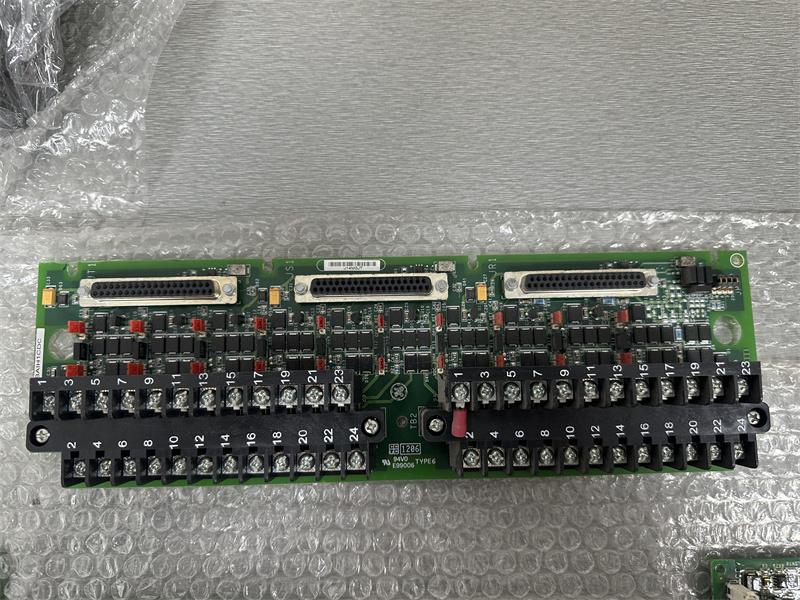

IS200TBAIH1CDC GE Mark VI, Analog Input Terminal Board

Description:
The IS200TBAIH1CDC is an Analog Input Terminal Board designed and manufactured by General Electric for use within the Mark VI Turbine Control System Series. This board is typically used with an Analog Input Board (VAIC) in simplex or TMR (Triple Modular Redundancy) applications. It features 12 channels, with 10 analog inputs and 2 analog outputs. The inputs can accommodate various types of transmitters, including two-wire, three-wire, four-wire, or externally powered transmitters. The outputs can be configured for a 0-20 mA range, with the option to support a wider 0-200 mA current range with the PAICH2 option.

Key specifications include:
-12 channels (10 inputs, 2 outputs)
-Input span, transmitters: 1-5 V dc
-Operating temperature: -30 to 65°C
-Part of the Mark VIe control system series

Frequently Asked Questions:
1.What is the purpose of the IS200TBAIH1CDC board?
The IS200TBAIH1CDC board is used to process analog signals in the Mark VI Turbine Control System, providing a crucial interface for connecting various sensors and control devices.

2.How many analog input channels does the IS200TBAIH1CDC have?
The IS200TBAIH1CDC has 10 analog input channels, which allows it to integrate different sensor types and signal formats into the system.

3.What are the related products of IS200TBAIH1CDC?
IS200TBAIH1C
IS200TBAIH1CCC
IS200TBAIH1CDC
IS230TNAIH2C （IS200TBAIH1CED）
