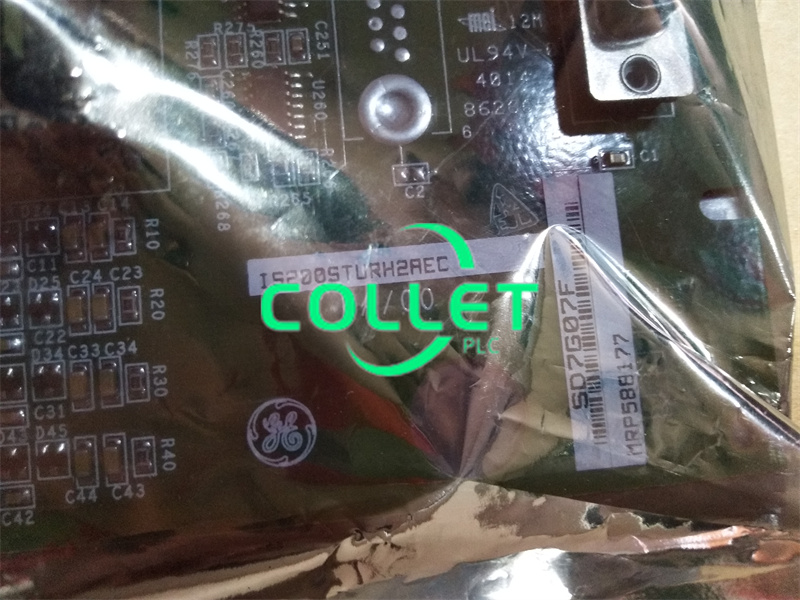

IS200STURH2A GE Mark VIe, Simplex Main Turbine Protection Input Terminal Board

Description:

IS200STURH2A is a Simplex Primary Turbine Protection Input Terminal Board manufactured and designed by General Electric as part of the Mark VIe Series used in distributed control systems. The turbine terminal board has a simplex S-type terminal board version called the Simplex Primary Turbine Protection Input (STUR) terminal board (TTUR). It has connections for the turbine-specific primary trip (PTUR), speed and synchronization inputs, trip relay outputs, and a cable to power a primary trip board. The following are some uses for STUR:

Mechanical drives without a synchronizing function but needing Overspeed protection
Generator drive systems that demand primary synchronization and Overspeed.
Additional uses for the four PTUR pulse input circuits.
The physical dimensions, customer terminal placements, and I/O pack mounting of this terminal board are identical to those of other S-type terminal boards. No component will allow for multiple stacking of terminal boards above the associated PTUR I/O pack.

The primary services that STUR offers are as follows:

For attaching a single PTUR I/O pack, the DC-62 pin connector is provided in step one.
Takes up to four input speed signals.
The board comes with a 48-terminal Euro-style box connector for client connecting points.
Offers two outputs for trip solenoids, K1 and K2, each of which is made up of a safety relay (H1, H2).
Offers a DC-37 pin connector for attaching a primary trip relay, such as a TPRG, TPRL, TPRS, or TPRA (H3, H4).
Takes two major synchronization inputs (PT) (H2, H4). They accept signals from potential transformers that represent the bus voltage and generator voltage

Frequently Asked Questions:

1.What is the input voltage of IS200STURH2A?
Input: 28 Vdc, 0.24 A max
RTD: 0 to 4.2 V dc, 10 mA dc.

2.When does the warranty period start?
One year from the time the client receives the goods.
