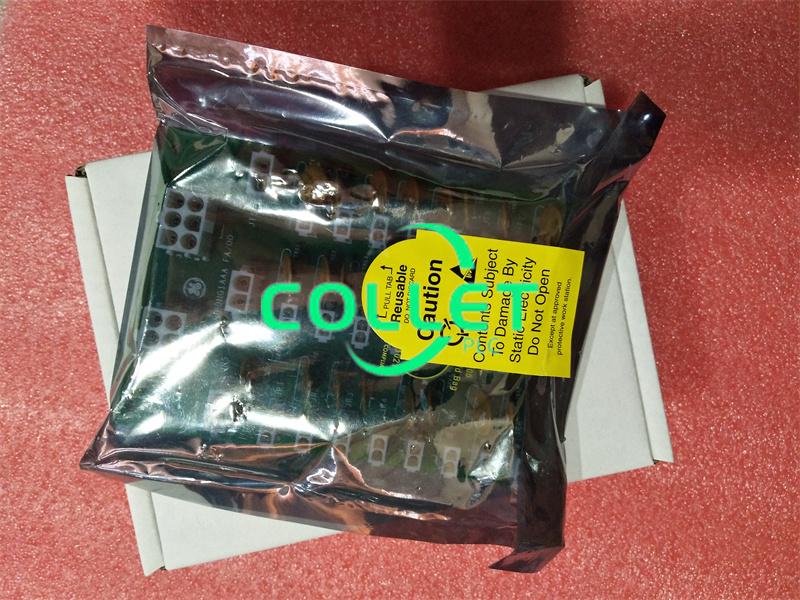

IS200JPDHG1AAA GE MKVIe, High Density Power Distribution Board

Temperature: -30 to 65oC
Mounting: DIN-Rail
Availability: In Stock

  • Item NO.:

    IS200JPDHG1AAA
  • Payment:

    T/T
  • Price:

    $4230
  • Product Origin:

    U.S.A.
  • Shipping Port:

    Xiamen
  • Lead Time:

    5-7 days
  • Goods Stock:

    2
  • Product weight:

    0.5 kg

Manufacture
GE
Model
IS200JPDHG1AAA
PN No. IS200JPDHG1AAA
Catalog
MKVIe
Description
High Density Power Distribution Board
Origin U.S.A.
HS CODE 85389091
Dimension 37*30*4 (CM)
Weight 0.5 kg

Description:

The IS200JPDHG1AAA is a High-Density Power Distribution Board, engineered by General Electric for integration within the Mark VIe control system. This specialized board manages the distribution of 28 V dc power to multiple I/O packs and Ethernet switches. Each board has the capacity to supply power to 24 Mark VIe I/O packs and 3 Ethernet switches, all sourced from a single 28 V dc power input.

Characteristics include:

Configuration and Expansion: To cater to larger systems, the board can be linked in a daisy-chain configuration. This setup allows the expansion of power distribution to additional I/O packs as needed, enhancing system scalability.
Protection Mechanism: A notable feature is the built-in protection for each I/O pack connector. Every circuit includes a positive temperature coefficient (PTC) fuse device to safeguard against potential overloads or faults. These PTC devices automatically regulate current flow during overcurrent situations, ensuring the connected I/O packs are protected and maintaining the integrity of the power distribution network.
Installation Steps:
Mounting: Select an appropriate vertical surface for mounting the board.
Screw Insertion: Insert #6 machine screws into the mounting holes at each corner of the board.
Securing: Make sure the screws are securely tightened to firmly hold the JPDH board in place on the chosen surface.

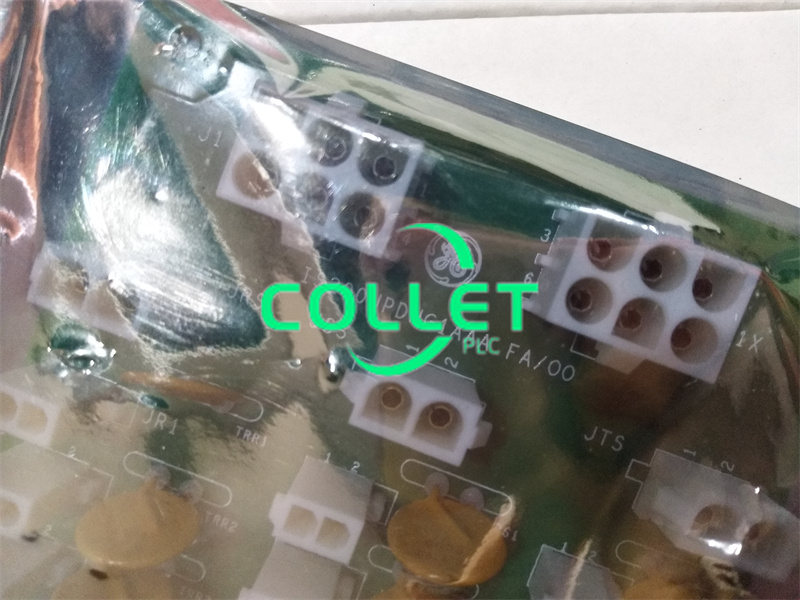

Connector Placement: Refer to the provided diagram for guidance on how to insert Mate-N-Lok connectors into the designated slots on the JPDH board.
Ratings: Be aware that the 6-pin and larger 2-pin connectors are rated for a nominal voltage of 600 V and a current of 13 A. In contrast, smaller two-pin connectors have a nominal voltage rating of 600 V but a maximum current limited by the fuse rating to 0.8 A.
Caution: Be careful not to exceed the specified maximum current ratings for each connector type to prevent damage or hazards.
Safety Standards:
UL 508A: Complies with safety standards for industrial control equipment, addressing electrical hazards, component selection, wiring methods, grounding, and construction requirements.
CSA 22.2 No. 14: Adheres to guidelines that focus on preventing electrical hazards in industrial control equipment, including electrical insulation, component ratings, environmental conditions, and safety precautions during installation and operation.
EN 61010-1: Conforms to European safety standards for electrical equipment used in industrial environments, covering protection against electric shock, insulation requirements, temperature limits, mechanical strength, and safety precautions during installation and use.
Power Inputs and Outputs:
The system features one 6-pin connection for the 28 V DC power input, using the Mate-N-Lok standard designed to handle up to 600 V and 13 A. This serves as the primary power source.
Ethernet Switch Connections: Three 2-pin connections tailored for Ethernet switches are provided, also utilizing the Mate-N-Lok standard capable of managing up to 600 V and 13 A. These connections act as interfaces for connecting Ethernet switches, facilitating communication within the network infrastructure.
I/O Pack Connections: The system offers twenty-four 2-pin connections for I/O packs, adhering to the Mate-N-Lok standard and designed to handle up to 600 V and 0.8 A. These connections enable linkage to various I/O packs, allowing data exchange between the system and external devices or sensors.

Datasheet Link:

IS200JPDHG1AAA GE MKVI, High Density Power Distribution Board PDF Datasheet
