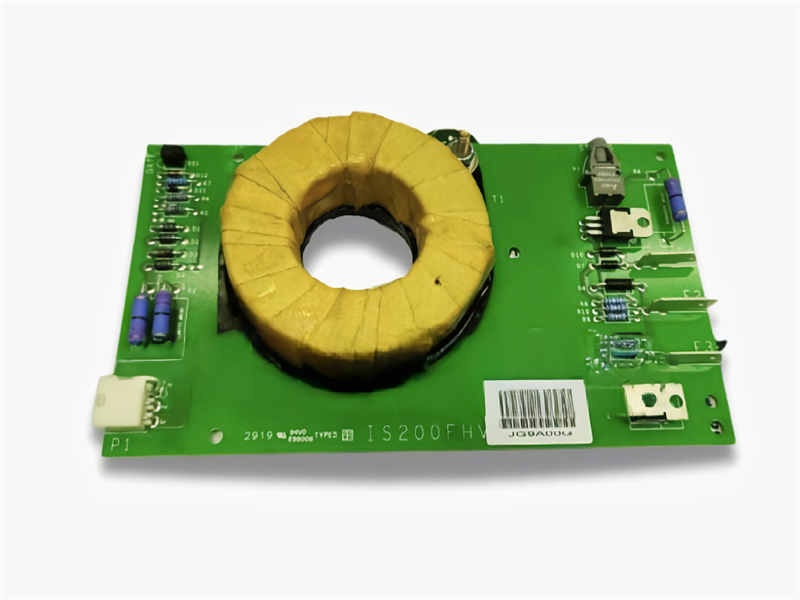

IS200FHVBG1ABA GE LS2100, High Voltage Gate Inverter

IS200FHVBG1ABA exists as a modified version of the original IS200FHVBG1 parent board, and features three total significant product revisions, including two functional revisions and an artwork revision.

Item NO.:
IS200FHVBG1ABA
Payment:
T/T
Price:
$6000
Product Origin:
U.S.A.
Shipping Port:
Xiamen
Lead Time:
5-7 days
Goods Stock:
8
Product weight:
0.5 kg

Inquiry now

product introduction

Manufacture	GE
Model	IS200FHVBG1ABA
PN No.	IS200FHVBG1ABA
Catalog	LS2100
Description	High Voltage Gate Inverter
Origin	U.S.A.
HS CODE	85389091
Dimension	16104 (CM)
Weight	0.5 kg

Description:

The IS200FHVBG1ABA Load-Commutated Inverter incorporates a set of specialized hardware components designed to fulfill its role as a High Voltage Gate Inverter. To understand the necessary hardware, it's essential first to clarify the device's intended functionality. The original instructional manual for the IS200FHVBG1ABA board does not detail any hardware specifications; it only provides a functional description. Therefore, the information on this page is derived from either a detailed visual inspection of the IS200FHVBG1ABA board or an analysis of the individualized product number.

This IS200FHVBG1ABA model is part of the Mark VI Turbine Control System Series but is not the original product in that series. It evolved through three revisions, with the first two being functional styles of the Mark VI Series and the third focusing on the circuit configuration and artwork on the PCB.

The unique IS200FHVBG1ABA product number starts with the IS200 series tag, indicating dual functionality. This tag signifies that the IS200FHVBG1ABA is both a domestically manufactured General Electric product and a standard printed circuit board without any special assembly version. The IS210 series tag is replaced by the FHVB acronym, serving as a convenient shorthand for the full product number. Following the FHVB acronym is the G1 series grouping tag, which informs knowledgeable LS2100 Series drive administrators about the normal style PCB coating and its classification within Group One of the LS2100 Static Starter Control Series Grouping.

Frequently Asked Questions:
1.Why is this device's FHVB functional acronym classified as functional?

The FHVB acronym for this device is considered functional because it effectively summarizes the purpose of the High Voltage Gate Inverter, even if the characters in the acronym do not align perfectly with each word. It acts as a practical abbreviation to quickly reference the IS200FHVBG1ABA model's role within the system.

2.What are the components of IS200FHVBG1ABA high-voltage interfaces?
The HVI encompasses the ac and dc buses, as well as the line filter fuses. There are also two terminal boards that provide bridge feedback to the control and the EXAM board.

Datasheet Link:

IS200FHVBG1ABA GE LS2100, High Voltage Gate Inverter PDF Datasheet
