IS200ESBPG1A GE EX2100, SIMPLEX BACKP

GE EX2100 IS200ESBPG1A, SIMPLEX BACKP in stock.
  • Item NO.:

    IS200ESBPG1A
  • Payment:

    T/T
  • Price:

    $4230
  • Product Origin:

    USA
  • Shipping Port:

    Xiamen
  • Lead Time:

    5-7 days
  • Goods Stock:

    2
  • Product weight:

    0.4 kg

Manufacture
GE
Model
IS200ESBPG1A
PN No. IS200ESBPG1A
Catalog
EX2100
Description
SIMPLEX BACKP
Origin USA
HS CODE 85389091
Dimension 15*10*4.62 (CM)
Weight 0.4 kg

Description:

Functional Description
The IS200ESBPG1A is an exciter simplex backup board developed by GE. It is a part of the EX2100 excitation system. The ESBP plays a crucial role in the architecture of control systems, providing a foundational structure for seamless communication and functionality across various components. This component serves as both control boards and I/O terminal board cables, primarily catering to simplex applications within the system's operational framework. This board is no longer manufactured by GE, but it is still available in our stock. We have both new and used surplus from our large inventory.

Features
It is designed with a specific emphasis on providing essential connectivity and housing capabilities for control boards. It serves as the substrate onto which these control boards are plugged, enabling them to interact, communicate, and contribute to the overall functionality of the control system. In particular, for controller M1, the ESBP not only offers the necessary slots for the ACLE, DSPX, EISB, EMIO, and ESEL boards but also accommodates the EROC ground detector interface. This integration fosters a cohesive control ecosystem where diverse boards collaborate to achieve efficient and reliable control operations.
A distinctive feature of the card is its inclusion of the EPSM (Exciter Power Supply Module). This power supply module serves a critical role in ensuring that the requisite power is delivered to the connected components, maintaining their operational integrity. To facilitate optimal performance, a single overhead fan is employed to efficiently cool the controller, preventing overheating and ensuring consistent and reliable operation even during extended usage.
The board's design caters to the complex connectivity needs of the control system. Its upper section is equipped with DIN connectors, offering a reliable platform for plug-in control boards. This design streamlines the installation process and promotes an organized arrangement of components. The lower part of the backplane features D-SUB connectors dedicated to I/O interface cables, as well as circular DIN connectors. These connectors serve various functions, including keypad interface cables, power supply plugs, and test rings, further enhancing the system's flexibility and adaptability.
In later revisions of the ESBP, such as Revision C and beyond, an upgraded EBKP is introduced. This enhanced backplane extends its utility by supporting up to four Din-rail mounted 4-20mA signal conditioner output modules. These modules cater to tasks such as metering or high-speed analog monitoring of EX2100 variables. This advanced capability contributes to the system's capacity for precise data acquisition and real-time monitoring, enhancing its overall functionality and operational insights.
Characteristics
The model is typically linked to a backplane model via thirteen backplane connectors organized into four groups on the model. There are three groups of three and one group of four in terms of group orientation. On one side of the board, in a single line, there are five vertical ribbon connectors known as male connectors; the sizes and functions of these connectors vary.
The board has nine female plug connectors, all of which are different sizes.

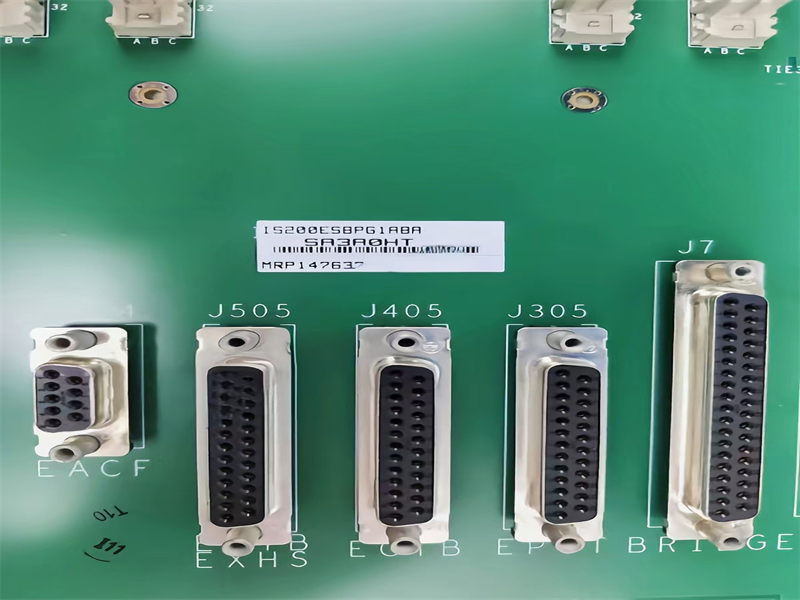

Five sub-d connectors are located in the middle of the bottom half of the board. They are J504 EACF, J505 EXTB and EXHS, J405 ECTB, J305 EPCT, and J7 Bridge, in that order. The purpose of these connectors is to allow the EX2100 system to communicate with other models and boards.
The backplane has only one section, which houses the power supply for the EPSM model. The DSPX, ACLE, EMIO, EROC, ESEL, and EISB boards are all connected to controller M1.
To keep the controller cool, the backplane model requires one overhead fan. Only simplex mode applications use the ESBP backplane model.
Connector Configuration
The board boasts a meticulously engineered connector configuration, ensuring seamless integration and efficient functionality across diverse control systems. It features a total of thirteen backplane connectors, strategically grouped into three sets of three, along with an additional set of four connectors. This thoughtful arrangement enhances the board's connectivity, enabling vital communication links within the broader system architecture.

Backplane Connectors: The thirteen backplane connectors play a pivotal role in facilitating communication and data transfer both on the board and throughout the larger control system. These connectors are strategically grouped to contribute to an organized and efficient layout. The three sets of three connectors, along with the set of four, are essential components in establishing the board's connectivity to the system's backplane.

Vertical Ribbon Connectors: In addition to the backplane connectors, the board includes five vertical ribbon connectors situated on one side. These male-type connectors serve various essential functions within the board's intricate design. They enhance reliability and ease of use, adding to the overall versatility in accommodating diverse applications.

Connector Quantities: The distribution of connectors is not arbitrary but carefully determined to meet specific functional requirements. The thirteen backplane connectors, grouped into sets of three and four, serve as the primary means of communication and data transfer, ensuring the seamless flow of information within the control system. Complementing these, the five vertical ribbon connectors support specific functions, adding an extra layer of flexibility to the board's overall connectivity.

Sub-D Connectors
J504 EACF: Positioned on the far left, J504 EACF serves a designated function within the EX2100 system. Its role is crucial in facilitating specific connections that contribute to the overall functionality of the DSVO board.

J505 EXTB and EXHS: Moving from left to right, the next connectors, J505 EXTB and EXHS, collectively play a significant role in establishing connections related to external boards and components. These connectors enhance the board's versatility by enabling seamless communication with external modules within the EX2100 system.

J405 ECTB: Positioned in the middle, J405 ECTB serves a unique function, likely related to connections with the EX2100 system's control boards. This connector ensures efficient communication and integration with specific modules or components within the broader system architecture.

J305 EPCT: To the right of J405 ECTB, J305 EPCT likely plays a specific role in connecting with other boards or devices associated with the EX2100 system. Its strategic placement underscores its importance in the overall connectivity scheme.

J7 Bridge: The last connector, J7 Bridge, occupies a distinctive position on the far right. Its nomenclature suggests a specialized function, possibly related to bridging connections between different components or models within the EX2100 system.

Power Supply and Cooling
The backplane contains a dedicated power supply for the EPSM model. It also serves as the connection point for several boards within controller M1, including the DSPX, ACLE, EMIO, EROC, ESEL, and EISB boards. For cooling purposes, the ESBP backplane model requires one overhead fan to ensure optimal temperature control.

Operational Modes
Product Attributes
Designed specifically for simplex mode applications. In the EX2100 Series, systems typically operate in one of two modes: redundant or simplex. The backplane is exclusively utilized in simplex mode applications.
