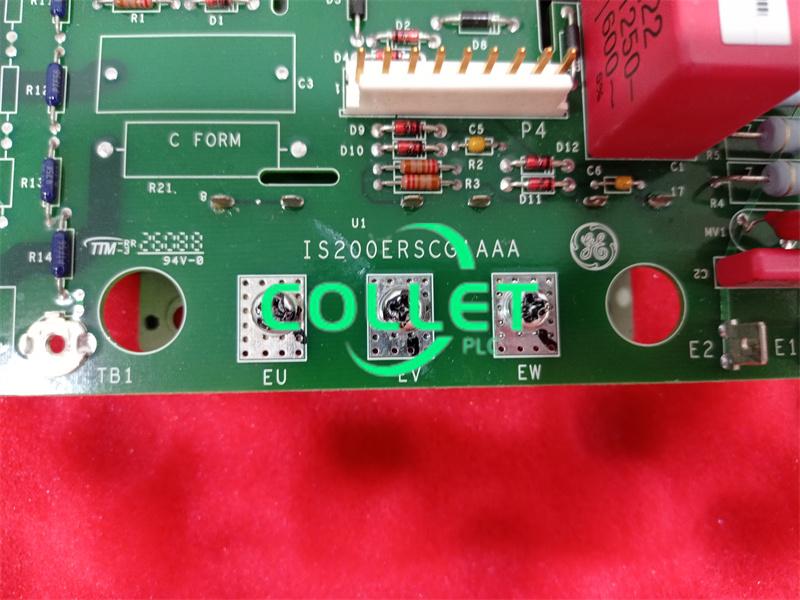

IS200ERSCG1A GE Regulator Static Converter Card EX2100

Brand new with low price,welcome quote for it

  • Item NO.:

    IS200ERSCG1A
  • Payment:

    T/T
  • Price:

    $3000
  • Product Origin:

    U.S.A.
  • Color:

    Depends on material
  • Shipping Port:

    Xiamen
  • Lead Time:

    5-7 days
  • Goods Stock:

    199
  • Product weight:

    1.2 kg

IS200ERSCG1A

Manufacture
GE
Model
IS200ERSCG1A
PN No. IS200ERSCG1AAA
Catalog
EX2100
Description
Regulator Static Converter Card
Origin United States (US)
HS CODE 85389091
Dimension 25*20*4 (CM)
Weight 0.4 kg


NEW AND ORIGIN ITEM IN STOCK

WITH ONE YEAR WARRANTY

Hope anyone enquire from us,pls click this sales6@nseauto.com
1. lower your support costs
2, Provide on-going availability of automation replacement parts
Quantity available: 1
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets


Description:

IS200ERSCG1A is an EX2100 Exciter Regulator Static Converter (ERBP) designed by General Electric. It is a part of the EX2100 series used in the Excitation control systems. It interfaces with the direct current (dc) source and the field, establishing connections with the Exciter Regulator Redundant Relay (ERRR) board and the Exciter Regulator Dynamic Discharge (ERDD) board. It facilitates interconnection for dc/dc static power conversion functions and field discharge operations. ERSCG1 is designed for simplex applications exclusively.

Features
Input Power and Output Capacity: The input power sources include rectified alternating current (ac), direct current from a station battery, or a combination of both. The board delivers a maximum output of 250 volts direct current (V dc) at 35 amperes (A dc) continuously. Additionally, it can provide 250 V dc at 52.5 A dc for a duration of 10 seconds.
Functionality Modes: The board offers functionality to operate in either a simplex system or a redundant system, where two complete regulator systems are linked to a single field.
Power Switching Mechanism: The board utilizes an insulated gate bipolar transistor (IGBT) module mounted on the board for most static power switching operations. However, field discharge for redundant switchover is an exception.
A relay, denoted as K3, is incorporated to bypass the dc link charging resistor for specific functionalities.
ERSCG2 Additional Pathway: ERSCG2 features a distinct pathway designed for latched field discharge during the transition from the primary to the redundant regulator. This functionality aids in ensuring a smooth switchover process. The board's functionality, adaptable configurations, power handling capabilities, and specialized pathways contribute significantly to the efficient and reliable operation of EX2100 regulator control systems, especially in managing static power conversion and field discharge operations.
Application Data
Physical Dimensions: The module measures approximately 4 inches in width and 6 inches in height, presenting a compact form factor suitable for integration within the EX2100 regulator control system.
IGBT Module Attachment: The board houses an insulated gate bipolar transistor (IGBT) module, connected to the ERSC using twelve soldered gate lead connections and four bolted power connections. This configuration ensures a secure and reliable connection between the IGBT module and the board.
The IGBT module is mounted vertically on a dedicated heat sink using four mounting screws. This setup enhances heat dissipation and aids in maintaining optimal operating temperatures for efficient performance.
Interface Connections: The board serves as an interface linking connections between the dc source and the field, establishing crucial communication and interaction with the ERRR (Exciter Regulator Redundant Relay) and ERDD (Exciter Regulator Dynamic Discharge) boards. These connections enable seamless integration and coordination between various components within the control system.
