IS200ERIOH1A GE Regulator MAIN I/O Card

NEW AND ORIGIN ITEM IN STOCK

WITH ONE YEAR WARRANTY

Hope anyone enquire from us,pls click this sales6@nseauto.com
1. lower your support costs
2, Provide on-going availability of automation replacement parts
Quantity available: 1
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets

Description:

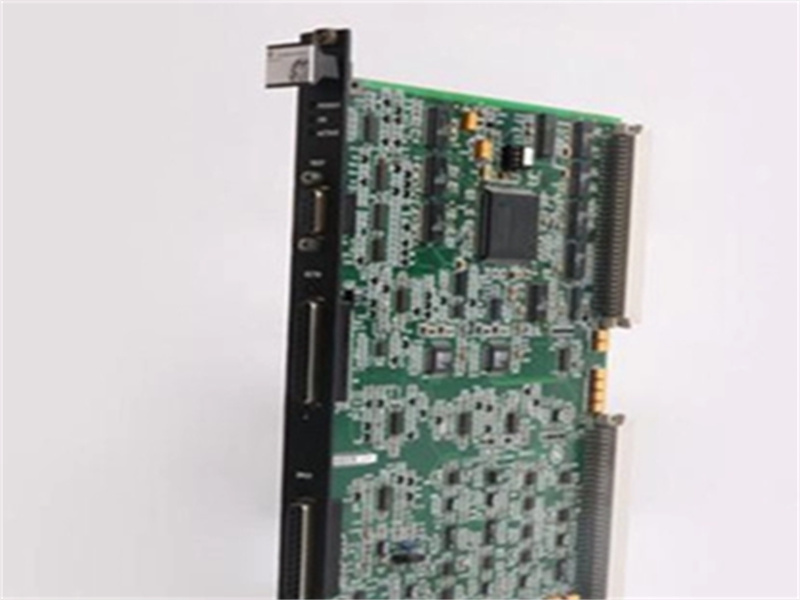

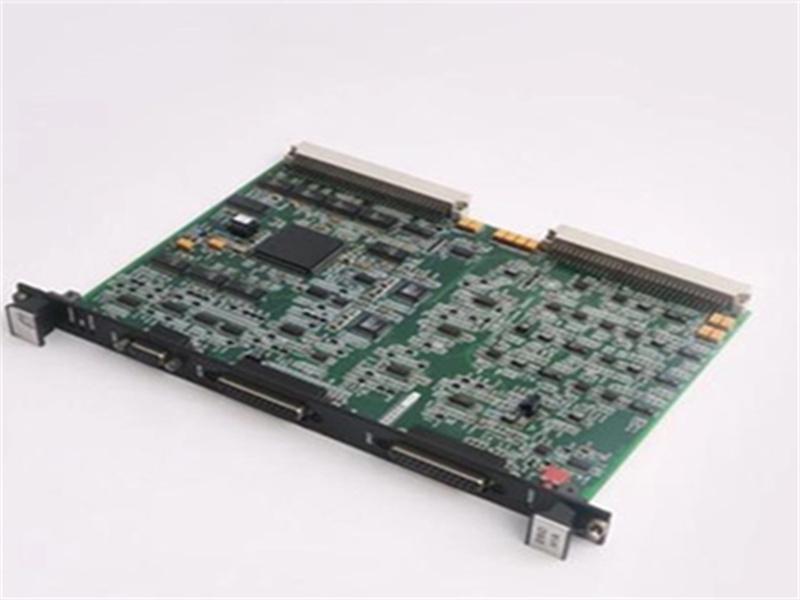

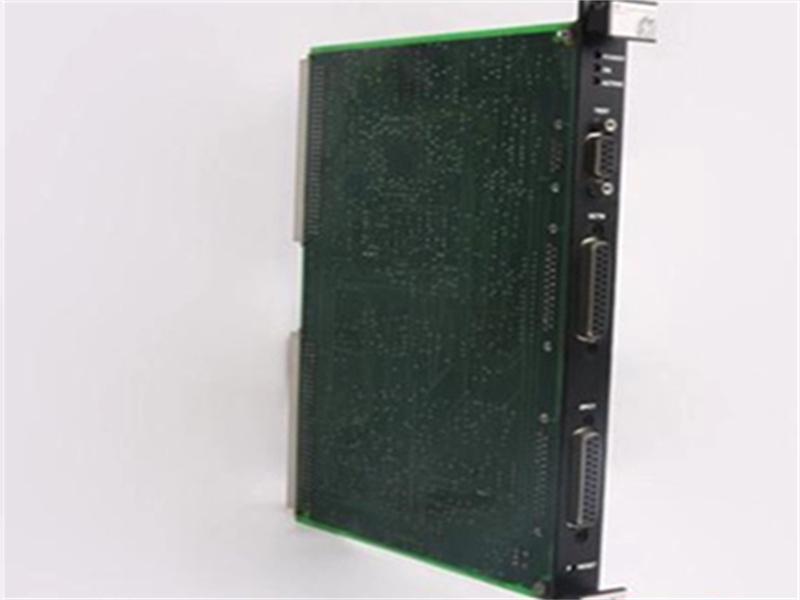

Within the EX2100 system, the IS200ERIOH1A serves as an Exciter Regulator I/O board. In the EX2100 Regulator Control systems, the IS200ERIOH1A offers a system and customer I/O. (both simplex and redundant.) Depending on the type of system, the board is mounted in different locations. In simplex applications, for example, the board is mounted in ERBP. Three IS200ERIOH1A are required in redundant applications. These attach to the ERRB M2 and C, as well as the ERBP M1. The front faceplate of the IS200ERIOH1A is double wide and has various components affixed to it.

One toggle switch is included in this package. Two backplane connectors (P1/P2) are located on the board's back edge. The board includes two CPU sockets as well as a field-programmable gate array (FPGA) for data collecting and storing into DPM control.
When working with simplex systems, this board also provides an interface system I/O from the ERO and ERDD boards. The board is mounted to the ERBP M1 and the ERRB M2/C in a redundant configuration. The M1/M2/C controllers are all on the same PCB.
A front faceplate with many mounted components, including a toggle switch, is featured on this board. It also features two backplane connectors on the back edge, hundreds of capacitors and resistors on the surface, and several integrated circuits. Two CPU sockets and one field-programmable gate array are included in these circuits.
