IS200EMCSG1AAB GE EX2100, Exciter Multibridge Conduction Sensor

Description:

 Functional Description
The IS200EMCSG1AAB, developed by GE, is an Exciter Multibridge Conduction Sensor Card designed for the Mark VI control system. It plays a crucial role in exciter systems by monitoring conduction, detecting irregularities, and ensuring optimal performance. The card's advanced sensor technology and reliable power supply connectivity make it indispensable for the proper functioning of the exciter system. It excels in detecting and analyzing conduction across various points within the exciter.

 Features

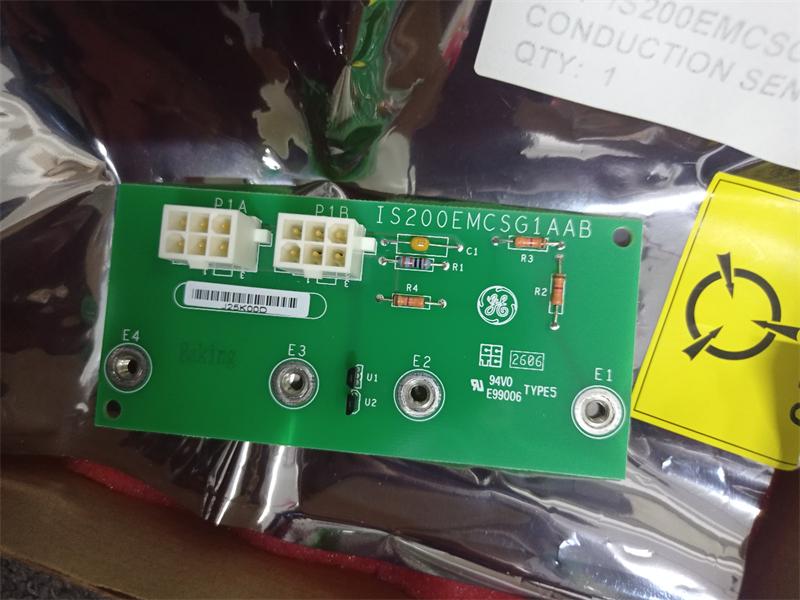

- Conduction Sensors: The board integrates four conduction sensors, labeled E1 through E4. These sensors are strategically placed on the bottom edge of the board to ensure comprehensive monitoring of conduction activities.
- Independent Sensor Circuits: Between sensors E2 and E3, the board features two independent sensor circuits, designated as U1 and U2. These circuits provide redundancy and enhance monitoring accuracy by offering backup sensing capabilities.
- Power Supply Connectivity: The board draws its power supply through two six-plug connectors located on its edge. These connectors enable efficient power distribution, ensuring uninterrupted operation of the card.
- System Ethernet GSM Features:
  - Alarm and Event Transmission: Ethernet GSM enables the precise transmission of alarm and event data. This includes local time tags generated by the controller for alarms, system events, and sequence of events (SOE) for contact inputs. Alarms and events are timestamped at a frequency of 25 Hz, ensuring accurate monitoring and analysis of system behavior.
  - Elimination of Separate SOE Systems: Traditionally, systems required separate instrumentation racks for monitoring sequence of events (SOE), involving extensive wiring for multiple contacts per trip contact. The Mark VI system revolutionizes this process by utilizing dedicated processors in each contact input board. These processors timestamp all contact inputs with a precision of 1 ms, eliminating the need for a separate SOE system. This innovative approach reduces initial costs and long-term maintenance while enhancing system efficiency and reliability.

Frequently Asked Questions:

1.How many conductor sensors are?
4, E1-E4

2.What types of revisions does this IS200EMCSG1AAB product have？
This IS200EMCSG1AAB PCB has been edited through two functional revisions and an artwork configuration revision rated at grades of A, A, and B, respectively.

Datasheet Link:

IS200EMCSG1AAB GE EX2100, Exciter Multibridge Conduction Sensor PDF Datasheet
