IS200EGDMH1AAB GE EX2100 Ground Detection Module

Description:

The IS200EGDMH1AAB functions as an Exciter Ground Detector Module.  This board works in conjunction with an EXAM board to detect field ground leakage current.   It is worth noting a simplex system uses one of these boards, while a redundant system will use three.   This module can detect field leakage from both the ac and the dc side of the field circuit.    In redundant systems, these boards are configured as  <C> Controller, <M1> Master 1, and <M2> Master 2. Each of these configurations is controlled by pins on the P2 connector.  More information about the placement and wiring of these boards can be found in GEH-6632, EX2100 Excitation Control User’s Guide.

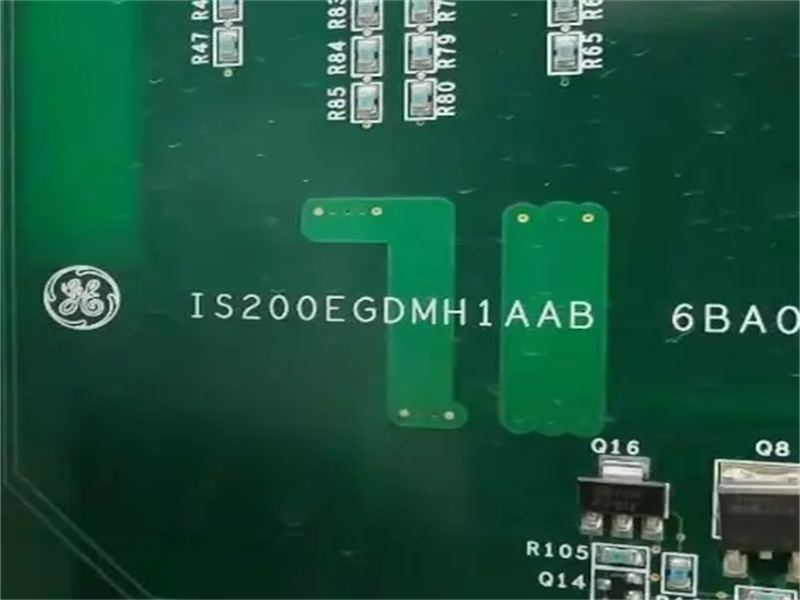

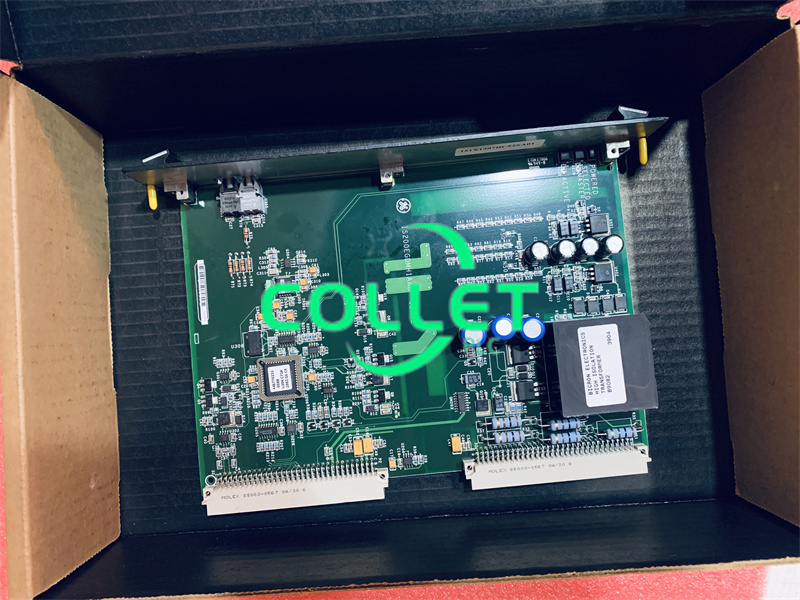

The IS200EGDMH1AAB is built with a front faceplate.  This is a double-height, double slot board.  It mounts into the EPBP backplane.  This faceplate has several warning lights.  It also carries the GE logo and the board number.   The board has two backplane connectors (P1 and P2,) as well as a single relay, seven high voltage capacitors, integrated circuits, metal film resistors, and a CPU socket.  Most components are marked with reference designators.
