IS200EACFG1B GE EX2100, EXCITER AC FEEDBACK, 500V

Description:

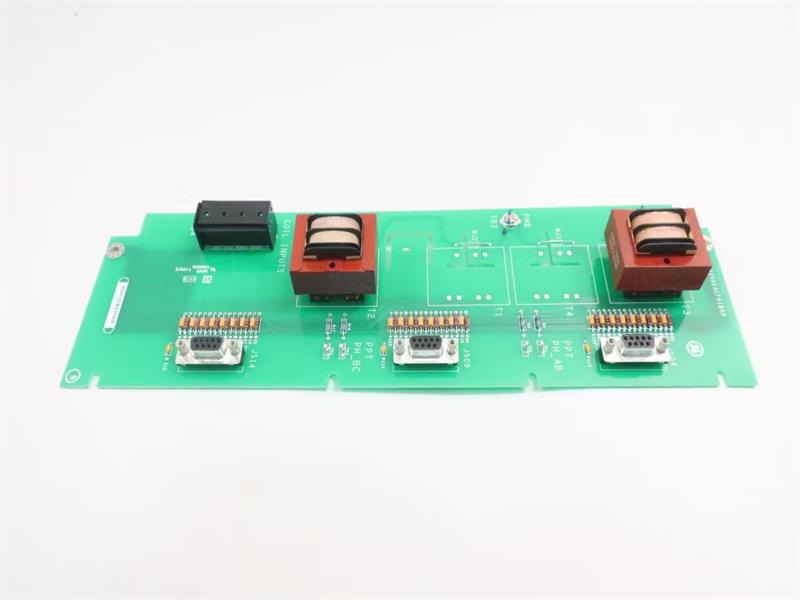

The IS200EACFG1B is an AC Feedback Board for the EX2100 system, engineered by GE. It serves within the EX2100 Excitation Control to gauge the AC supply voltage and current of the exciter's PPT (Potential Transformer Tapped) source.

Application Details:
To measure the phase voltage output from potential transformers, utilize voltage test rings designated TP1 through TP4 in the following manner:
- Determine the Phase to Phase Voltage AB by measuring between TP1 and TP2.
- Assess the Phase to Phase Voltage BC by measuring between TP3 and TP4.
- Evaluate the Phase to Phase Voltage CA by measuring between TP4 and TP1.

IS200EACFG1B Board Substitution Guidelines:
Exercise static-sensitive handling protocols across all boards to shield against component harm inflicted by static discharges. When manipulating boards or components, employ a wrist grounding strap exclusively post their detachment from any equipment harboring electrical potential, ensuring you are situated in an environment with standard grounding. Reiterate, adopt static-sensitive handling practices universally to avert damage to components via static electricity.

When dealing with boards or components, affix a wrist grounding strap solely after ensuring they are clear of any energized apparatus and positioned in a correctly grounded workspace. Prior to making contact with the board or associated circuitry, deactivate the power supply to the exciter and verify the absence of residual charge to prevent electric shock. Adjust, install, or modify board connections with the equipment powered down to safeguard against hardware impairment.
