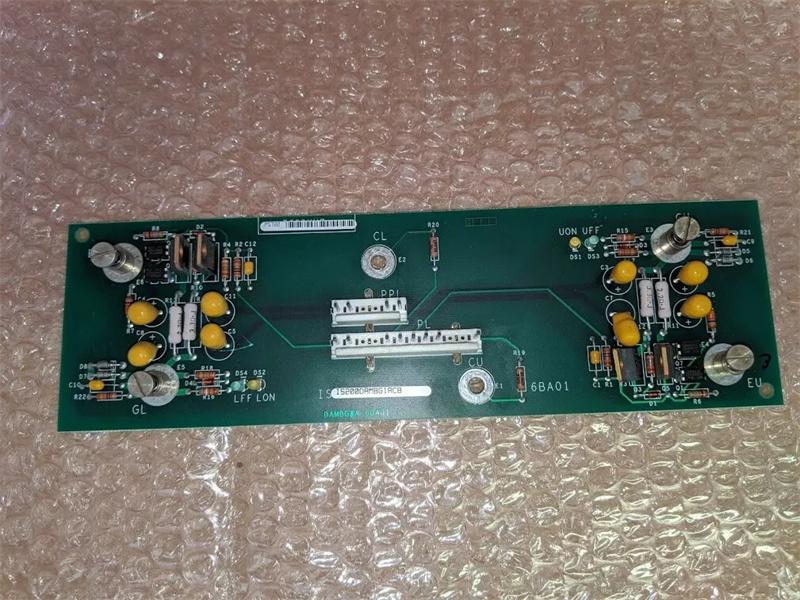

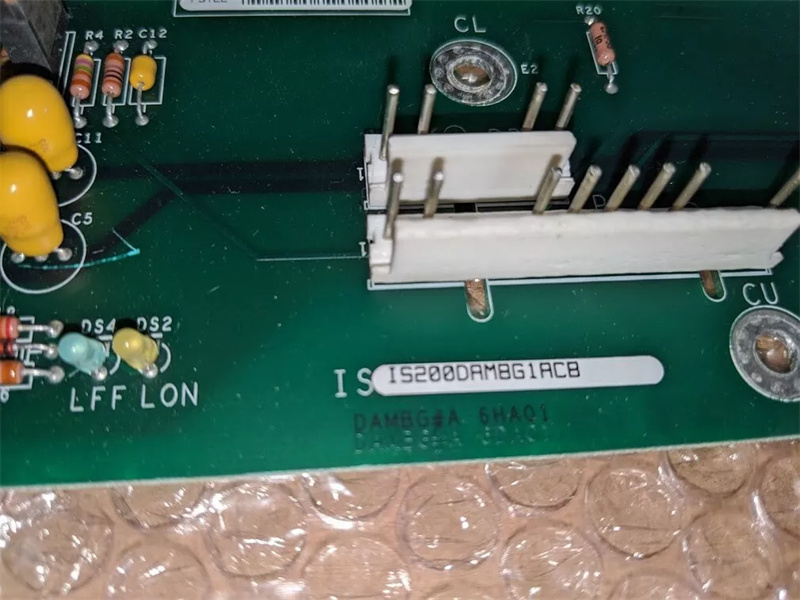

IS200DAMBG1ACB GE Mark VI, Gate Driver Board

Description:

IS200DAMBG1A: This is a Digital Asset Module (DAM) used in the GE Mark VI control system. The DAM is designed to interface with various types of digital inputs and outputs within the control system. It's used for monitoring and controlling various aspects of industrial processes.

Functionality: The DAM typically handles tasks such as data acquisition, processing, and communication within the control system. It can be involved in collecting data from field instruments and sending control signals to actuators or other devices.

Features: The IS200DAMBG1A module might offer features like high-speed processing, robust communication protocols, and compatibility with other modules in the Mark VI system. Its exact specifications can include things like input/output counts, communication interfaces, and power requirements.

IS200DAMBG1A is a Gate Driver Board manufactured and designed by General Electric as part of the Mark VI Series used in GE Drive Control Systems. A gate driver board is an electronic circuit board used to control the switching of power semiconductor devices, such as MOSFETs, IGBTs, or SiC devices. It provides a low voltage signal to the gate of the power device to turn it on or off and is designed to drive the gate capacitance quickly and efficiently. Gate driver boards are commonly used in power electronics applications, such as motor drives, inverters, and power supplies. They are typically designed to provide high-current pulses to the gate of the power device, with fast rise and fall times to minimize switching losses and improve efficiency.

FEATURES:

It provides a convenient interface between a control rack interface and an IGBT power-switching device.
The DAMA boards are 620 frame boards with a CM1000HA-28H Powerrex IGBT and three boards per drive, one for each phase leg. Furthermore, the device includes only one IGBT for the upper phase leg and one IGBT for the lower phase leg.
The DAM_ boards are directly connected to the IGBT collector terminals, gates, and terminals, as well as the BPIA Bridge Personality Interface board, which is located within the control rack. Furthermore, there are no test points, fuses, or configurable items on the board.
GLIN is the name given to Pin 1, which is intended to be the lower gate signal. Pin 2 is designated as the lower common signal (LCOM) (emitter). Pins 3, 4, 8, and 9 are labeled NC and are unconnected.
Pin 5 is designated as the lower collector signal and is labeled CL. Pin 6 is designated as the upper common signal (UCOM) (emitter). Pin 7 is labeled GUIN and serves as the upper gate signal. Pin 12 is labeled CU and serves as the upper collector signal.
Gate driver boards may include features such as overcurrent protection, overvoltage protection, under-voltage lockout, and fault detection to ensure the safe and reliable operation of the power device. They may also be designed to operate at high temperatures and in harsh environments, such as in automotive or industrial applications.

Datasheet Link:

IS200DAMBG1ACB GE Mark VI, Gate Driver Board PDF Datasheet
