Manufacture |
Vibration |
Model |
IQS900 |
PN No. |
204-900-000-011 |
Catalog |
NIL |
Description |
signal conditioner |
Origin |
Switzerland |
HS CODE |
85389091 |
Dimension |
12*8*2 (CM) |
Weight | 0.2 kg |
NEW AND ORIGIN ITEM IN STOCK
WITH ONE YEAR WARRANTY
Hope anyone enquire from us,pls click this sales6@nseauto.com
1. lower your support costs
2, Provide on-going availability of automation replacement parts
Quantity available: 1
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
Technical specification, manuals and data sheets
SPECIFICATIONS:

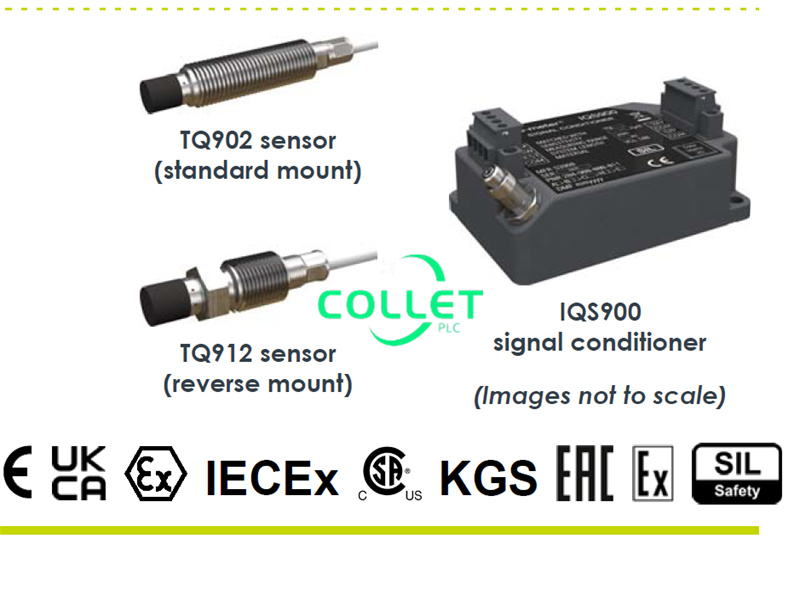

IQS900 signal conditioner
Current output (2-wire signal transmission)
Current at min. / max. gap : −15.5 mA / −20.5 mA
Measurement range : 5 mA (corresponding to 2 or 4 mm)
Output sensitivity : See Operation on page 3 and IQS900 signal conditioner on
page 18
Nominal output signal
• Without diagnostics : −15.5 to −20.5 mA
• With diagnostics : −15.5 to −20.5 mA indicates normal operation.
Other current values (>−15.5 or <−20.5 mA) indicate a problem
with the measurement chain (sensor, cabling or signal conditioner).
Output impedance : >60 kΩ.
Note: Recommended monitoring system input impedance: ≤350 Ω.
Notes 1. Ordering option code A5 (“Ex”) specifies an IQS900 signal conditioner suitable for use for use in hazardous areas. • For an IQS900 signal conditioner with protection mode “Ex” located in an Ex Zone 2, the user must ensure that the IQS900 is installed in an industrial housing or enclosure that ensures a protection rating of at least IP54 (or equivalent). 2. Ordering option code C specifies an IQS900 signal conditioner either without diagnostics (C1) or with diagnostics (C2): • An IQS900 signal conditioner without diagnostics (C1) is similar to the IQS45x, which it replaces. The IQS900 is a form, fit and functionally equivalent replacement that matches or betters the measurement specifications of the IQS45x. • An IQS900 signal conditioner with diagnostics (C2) includes optional diagnostic circuitry that automatically detects and remotely indicates problems with the measurement chain (sensor, cabling and/or the IQS900 itself). An IQS900 with diagnostics is certified SIL 2 (IEC 61508) and Cat 1 PL c (ISO 13849) “by design” to more easily meet the requirements of safety-related applications. Contact Meggitt SA for further information
