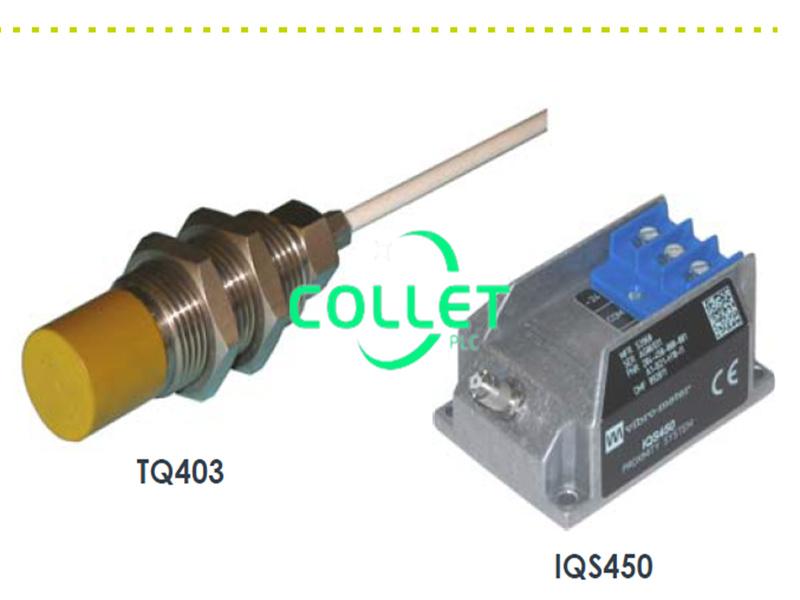

IQS450 Vibration 204-450-000-002-A1-B23-H05-I0 Signal Conditioner

Description:

 IQS450 signal conditioner
Output
 Voltage output, 3-wire configuration
 •Voltage at min. gap :−1.6V
 •Voltage at max. gap :−17.6V
 •Dynamic range : 16V
 •Output impedance : 500Ω
 •Short-circuit current : 45mA
 Current output, 2-wire configuration
 •Current at min. gap :−15.5mA
 •Current at max. gap :−20.5mA
 •Dynamic range : 5mA
 Output capacitance : 1nF
 Output inductance : 100µH


Supply
 Voltage output, 3-wire configuration
 •Voltage :−20 to −32V*
 •Current :−13mA±1mA (−25mA max.)
Current output, 2-wire configuration
 •Voltage :−20 to −32V*
 •Current :−15.5 to −20.5mA
 Supply input capacitance : 1nF
 Supply input inductance : 100µH

Environmental
 Temperature ranges
 •Operating :−35 to +85°C*
 •Storage :−40 to +85°C
Humidity : 95% max. non-condensing. 100% condensing (not submerged).
 Protection rating (according to IEC60529) : IP40
 Vibration (according to IEC 60068-2-26) : 2g peak between 10and55Hz
 Shock acceleration (according to IEC 60068-2-27) : 15g peak (half sine-wave, 11ms duration)


Physical characteristics
 Construction material : Injection-moulded aluminium
 Mounting : Two or four M4 screws

Electrical connections
 Input : Self-locking miniature coaxial connector (female).
 Note: When connecting, this should be hand-tightened, until locked.
 Output and power supply : Three screw terminals – wire section 2.5mm2 max.

Signal conditioner with MA130 mounting adaptor (ordering option I1)
 Universal DIN rail holder type : TSH35
 DIN rail type (according to EN50022/IEC60715) : TH35-7.5 and TH35-15

Thermal considerations
 The IQS450 signal conditioner will operate at ambient temperatures as high as 85°C, but to do so, it requires derating of the maximum input voltage. The IQS450 must operate between the minimum supply voltage and the maximum supply voltage, as shown on the following graph

Order Number:

IQS450 204-450-000-002-A1-B23-H05-I0
IQS450 204-450-000-002 A1-B23-H10-I0
IQS450 204-450-000-002 A1-B21-H10-I0
IQS450 204-450-000-002 A1-B21-H05-I0
IQS450 204-450-000-002 A1-B31-H05-I0
IQS450 204-450-000-002 A1-B31-H10-I0
IQS450 204-450-000-002 A3-B23-H10-I1
IQS450 204-450-000-002 A3-B23-H10-I0
IQS450 204-450-000-001 A1-B23-H05-I0
IQS450 204-450-000-001 A1-B21-H10-I0
IQS450 204-450-000-001 A1-B21-H05-I0
