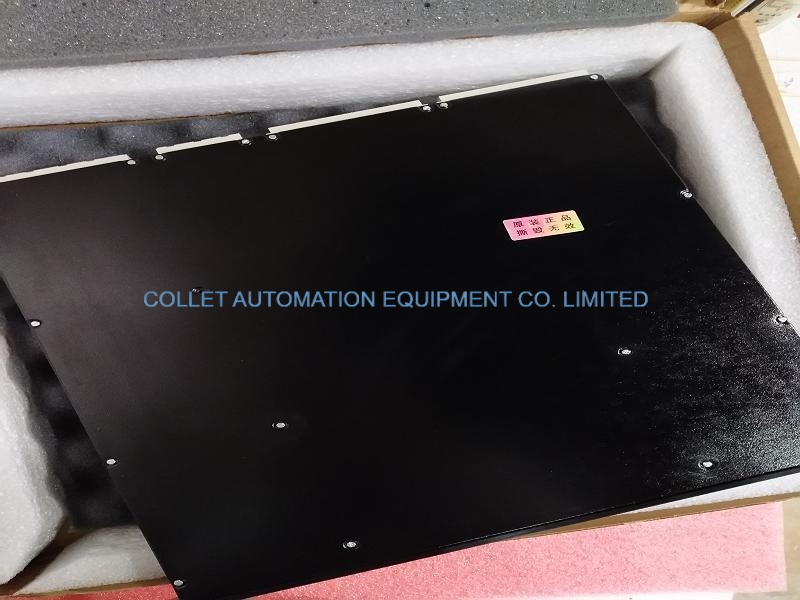

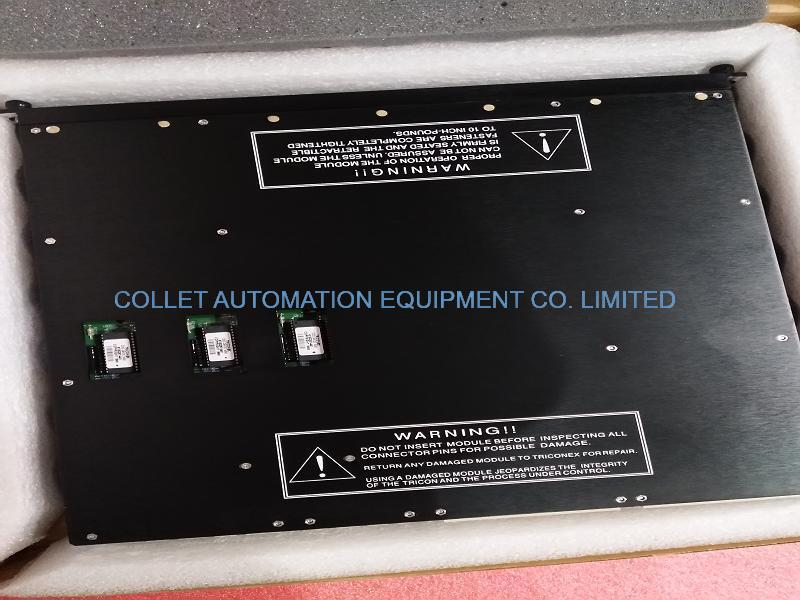

Important User Information of TRICONEX 3624:
Model Number:3624
Nominal Voltage:24 VDC
Type TMR, Supervised DO
Output Signals 16, commoned
Voltage Range 16-30 VDC
Maximum Voltage 36 VDC
Voltage Drop < 1.5 VDC, typical
Power Module Load < 10 watts
Current Ratings, Maximum 0.7A per point
4.8A surge per 10 ms
Minimum Required Load 30 mA
Load Leakage 4 mA maximum
Fuses (on Field Termination) n/a—self-protecting
Point Isolation 1,500 VDC
Diagnostic Indicators
On or Off State 1 per point
Module Status PASS, FAULT, ACTIVE
Field Alarm POWER, LOAD (1 per point)
Color Code Turquoise green
MFG: TRICONEX, Made in USA
Points 16, commoned
Nominal output voltage 24 VDC
Specified operational voltage range 15 to 30 VDC
Absolute maximum output voltage 33 VDC
Absolute maximum reverse input
voltage – 0.6 VDC
Output current
Switching 4.8 A, self-limiting
3.0 A, typical
Degraded mode 0.7 A, self-limiting
1.5 A, typical
Field alarms Loss of field power, output point shorted On or Off
Loop-back thresholds 0–5 VDC = Off region
6–14 VDC = transition region
15–30 VDC = On region
Leakage to load (Off state) 1 mA
Diagnostic glitch duration 2 ms, maximum 500 s, typical
Diagnostic fault coverage
Maximum toggle rate 20 ms
Minimum toggle rate Not applicable
On state voltage drop 1.0 VDC @ 1.5 A
Loop-back scan time 1.0 ms for all 16 points
Functional earth to protective earth isolation 500 VDC, minimum
Functional earth to functional earth (logic) isolation 800 VDC, minimum
Benefits:
1.Origin goods
2.In stock
3.One-year warranty
4.Timely delivery
5.The best price
6.All the goods will be tested before shipment...
Packaging & Delivery
Packaging Details:original packing factory sealed
Delivery Detail:Shipped in 3-5 days after payment
Shipping Detail
1) For the in stock items, we will send the order out within 3 days after receive the payment.
2) We can shipping all over the world via DHL,UPS,Fedex and EMS. The packaging is very strong. If you have any special needs, please notify me.
3) You are expected to receive the item about 7 days after we send out.
