IMR6000/10 Emerson MMS 6000 System Frame

Description:

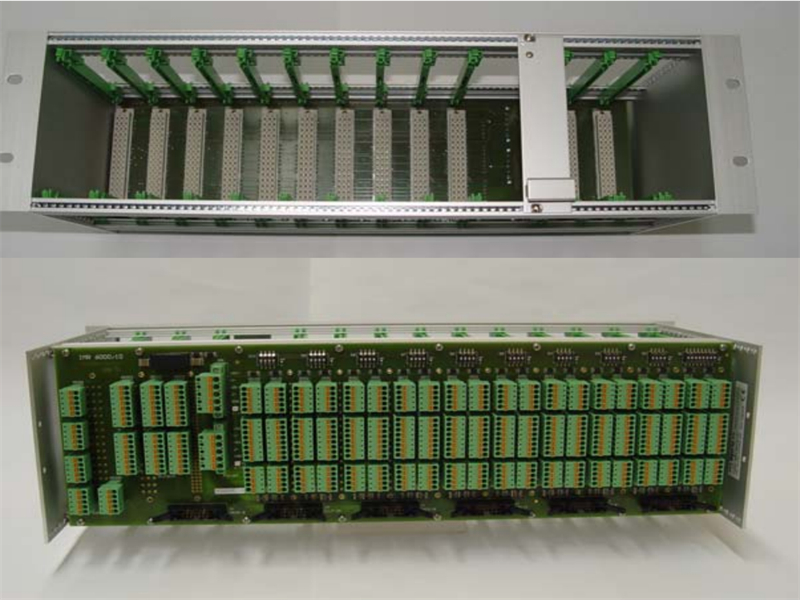

The system frame IMR 6000/10 comprises the following card slots at the front side:

• 10 slots for monitors of the MMS 6000 series

• 2 slots for adaptation of one logic card e.g. MMS 6740

• 1 slot for connection of an interface card e.g. MMS 6830, MMS 6831, MMS 6824 or MMS 6825

The following monitors are supported by the system frame IMR 6000/10 with their basic functions: MMS 6110, MMS 6120, MMS 6125 MMS 6140, MMS 6210, MMS 6220 MMS 6310, MMS 6312, MMS 6410

The connection of the external periphery at the rear of the system frame is made by 5− and 8− pole spring cage− or screw terminal connection plugs (Phoenix).

The RS485− bus connections, the respective key connection as well as all channel clear, alert and danger alarms of the monitors are carried out via these plugs.

The voltage supply plugs at the rear of the system frame can be made by 5−pole spring cage− or screw terminal connection plugs.

The 1st monitor slot at the system frame offers the possibility to imply a key monitor and to relay its key signals to the other monitors.

On the one hand the interface card offers the option of direct connection to a RS485 bus via Dip− switch configuration and, in addition, the possibility to connect the monitors to the RS 485 bus by external wiring at the plugs.

On the basis of the implemented Dip switches, the RS485−Bus can be configured accordingly
