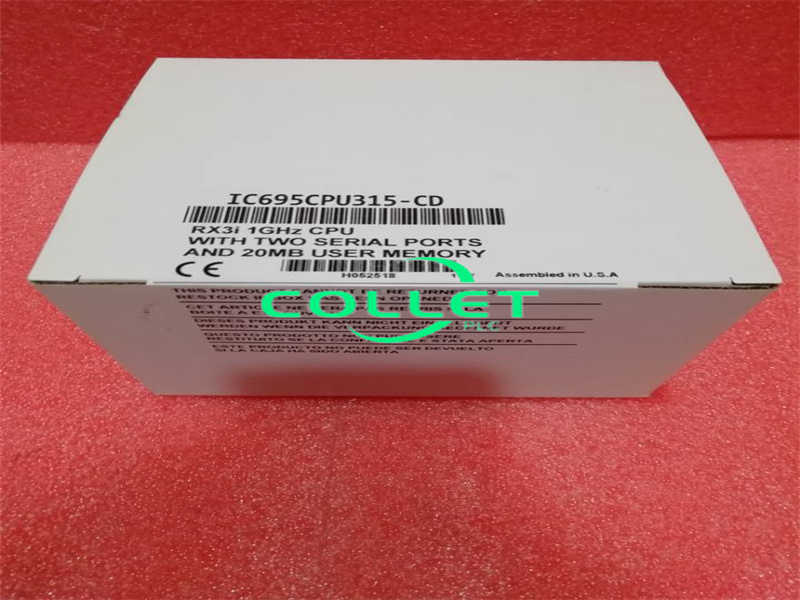

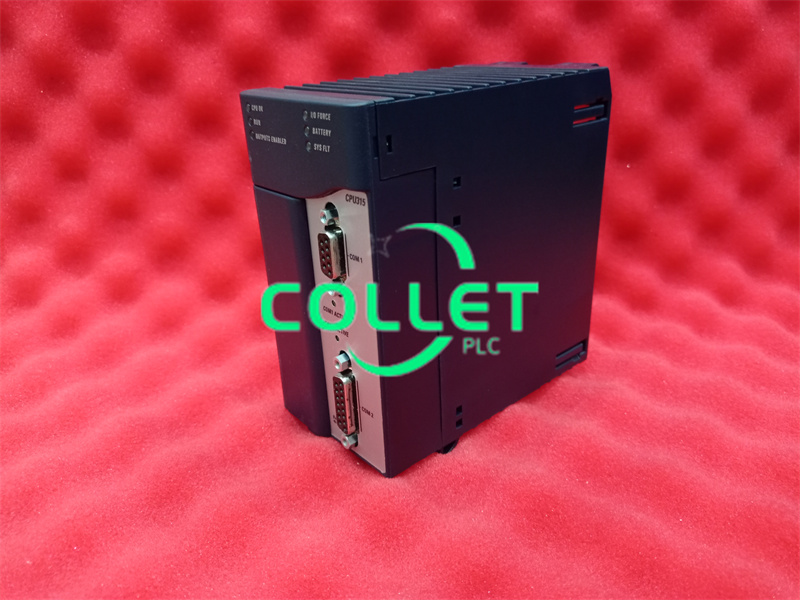

IC695CPE315 GE FANUC, CPU Processor

Description:

The IC695CPU315 is a 1-gigahertz Central Processing Unit from the GE Fanuc PACSystems RX3i Series. It features an Intel Celeron-M microprocessor with 20 MB of user memory (RAM) and 20 MB of flash storage. As a programmable controller, it can handle up to 32,000 I/O operations per second and supports up to 512 program blocks, each up to 128 KB in size. The IC695CPU315 communicates via a dual backplane bus.

Designed for real-time control of machines, processes, and material handling systems, this CPU can be programmed in C or three of the five IEC-recognized programming languages: Ladder Logic (Ladder Diagram), Structured Text, and Function Block Diagram. It does not support Sequential Function Chart and Instruction List.

The IC695CPU315 employs floating point algorithms and allows firmware upgrades within the system. Its auto-located symbolic variables can utilize up to the full 20 MB of user memory. Factory-configured, it includes two front-facing ports: an RS-485 serial port and an RS-232 serial port, featuring both 9-pin and 15-pin connectors. It supports SNPI+ Serial I/O, Modbus Slave, and Master serial protocols and is compatible with most older GE Fanuc Series 90-30 modules and expansion racks.

Technical Specifications:
- Processing Speed: 1 GHz
- CPU Memory: 20 MB
- Floating Point: Yes
- Serial Ports: 2 (RS-232 and RS-485)
- Serial Protocols: SNPI+, Serial I/O, Modbus Slave and Master
- Embedded Comms: RS-232, RS-485

This CPU belongs to the PACSystems RX3i series by GE Fanuc, featuring 20 MB of battery-backed RAM, 20 MB of non-volatile flash user memory, power requirements of either 3.3 Volts DC at 1 Amp or 5 Volts DC at 1.2 Amps, embedded communication options, an operating temperature range of 0 to 60 degrees Celsius, and support for up to 512 program blocks. It offers a dual backplane for efficient I/O communication and two serial communication ports. An Ethernet interface module can be added for Ethernet communication. The IC695CPU315 can be programmed using ladder diagram, structured text, function block diagram, or C.

It is compatible with programmers and HMI devices for plant-wide control and monitoring. It includes a dual backplane providing a high-speed serial bus and an RX3i PCI. Its typical Boolean execution speed is 0.047 milliseconds per 1000 Boolean instructions, and it is electrically compliant with PCI 2.2 standards. Key features include bulk memory access, configurable data and program memory, in-system firmware upgradeability, and embedded communication with serial protocol support. It is compatible with most Series 90-30 modules, communication modules, and expansion racks. When installing the battery, ensure the CPU is installed in the rack and powered on before connecting the battery. This module is used for real-time control of machines and processes in industrial plants.
