HPC800K02 ABB S+SD Redundant Controller Kit

Description:

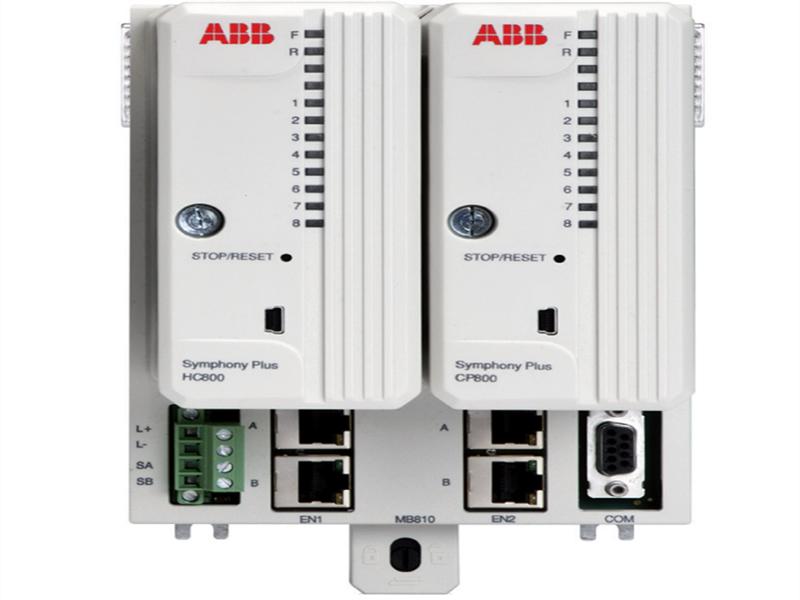

HPC800K02 is a redundant controller kit, and kit contents 2 sets (HC800, CP800, MB810), 1 set (CTB810, CTB811), and 4 sets (TER8x0)
HPC800 represents the newest addition to the S+ Control family. HPC800 control-based system solutions feature modular DIN-rail packaging; a flexible, high-performance Fast Ethernet-based plant network; intelligent electrical and field device integration; PROFIBUS and HART communication protocols; integrated turbine control; an efficient, easy-to-use engineering tool, and a state-of-the-art HMI workplace.

Powerful process controller :

The HPC800 is the latest in a long line of field-proven process controllers. Based on a 256 MHz, 32-bit Freescale Coldfire processor, the HPC800 controller can be adapted to a broad spectrum of applications and process requirements. Configured by S+ Engineering tool, the HPC800 features an extensive library of more than 150 pre-defined control algorithms or function codes. These functions provide the ability to easily design complex control strategies to fit any control application, including continuous, sequential, batch and advanced control. In addition to standard function blocks, the HPC800 supports C programming, batch, and user defined function codes.

HPC800 controller features include:

− Simultaneous support for SD Series I/O, Harmony Rack I/O, and S800 I/O subsystems

− Execution of closed loop control of more than 5,000 I/O in less than 250 msec.

− Downloadable firmware

− Extended user configuration memory (NVRAM) and runtime memory (RAM)

− Support for 30,000 function blocks − Flexible and online configuration capability

− Support for up to 8 segment tasks, each segment supporting execution cycle time down to 1 msec

− Dedicated redundant peer-to-peer controller communication bus supports update rates less than 100 msec

Frequently Asked Questions:

1.How to use HPC800?

Using HPC800 is easy.HPC800 utilizes a DIN-rail form factor, standard 24 VDC power inputs, and a standard Ethernet network to make installation simple and flexible. This reduces the limits on cabinet space, size or layout, and provides a broader selection of commercial power supplies and network peripherals, thus lowering both installation and maintenance costs.

2.What are HPC800 solutions?

− Use the extensive set of field-proven INFI 90 function code algorithms as previous generation controllers

− Use traditional INFI-Net exception reporting over redundant 100 Mbps Fast-Ethernet (PN800)

− Extend current Composer graphical design engineering tools with device management capabilities

3.What are the related products?
HPC800，HPC800K01，HPC800K02，HC800，CP800，MB810，CTB810，CTB811，TER8x0
4.When does the warranty period start?
One year from the time the client receives the goods.

Datasheet Link:

HPC800K02 ABB S+SD Redundant Controller Kit Datasheet
