Manufacture |
Vibration |
|
Model |
GSI130 |
| PN No. |
244-130-000-204 |
|
Catalog |
S3960 |
|
Description |
Galvanic separation unit |
| Origin |
Switzerland |
| HS CODE |
85389091 |
| Dimension |
8*6*4 (CM) |
| Weight | 0.2 kg |

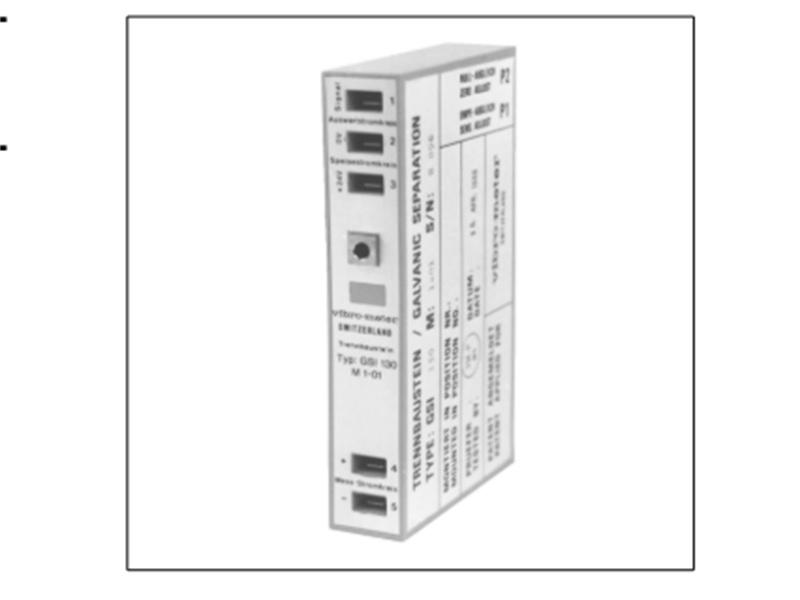

The GSI 122/130 galvanic separation unit is used for
supplying transducers and conditioners and for reading off signals given by them.
It is used in 2-wire transmission systems. In a more
general application it serves for supplying any electronic system with a consumption of less than 20 mA.
This unit outputs a voltage signal proportional to the
current consumed by the conditioner. This voltage
signal is directly available for analysis of the conditioner signal.
The GSI 122/130 module avoids any problems due to voltage differences between the measuring point and the signal processing (e.g. earth loops). The GSI 122 Version 20x conforms to the CENELEC and CSA standards concerning the powering of transducers and conditioners mounted in explosive areas. The use of the GSI 122/130 in an installation avoids the need to mount Zener barriers, which generate additional voltages drops and limit the length of the transmission line and the dynamic range of the system.
