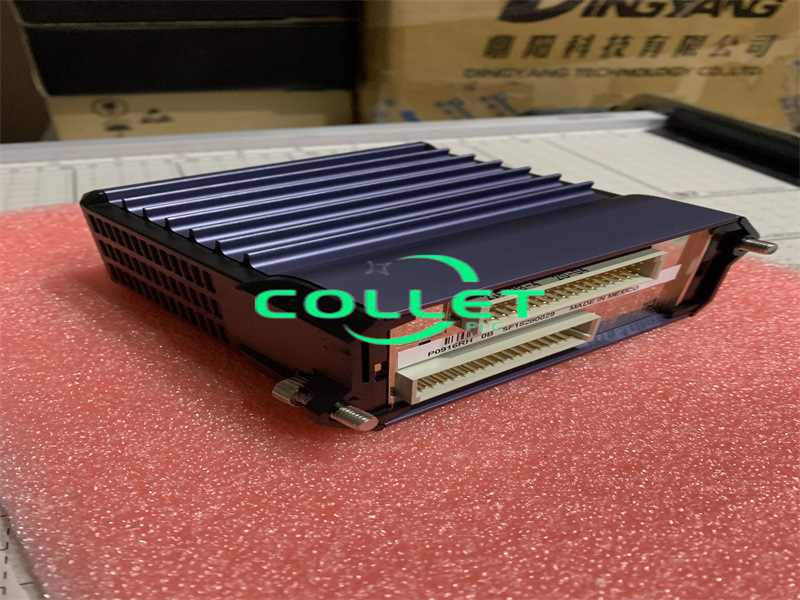

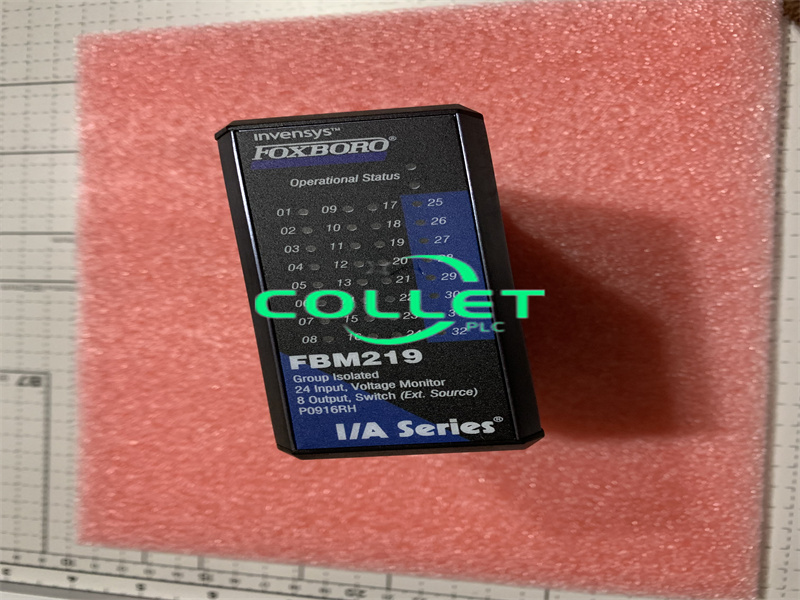

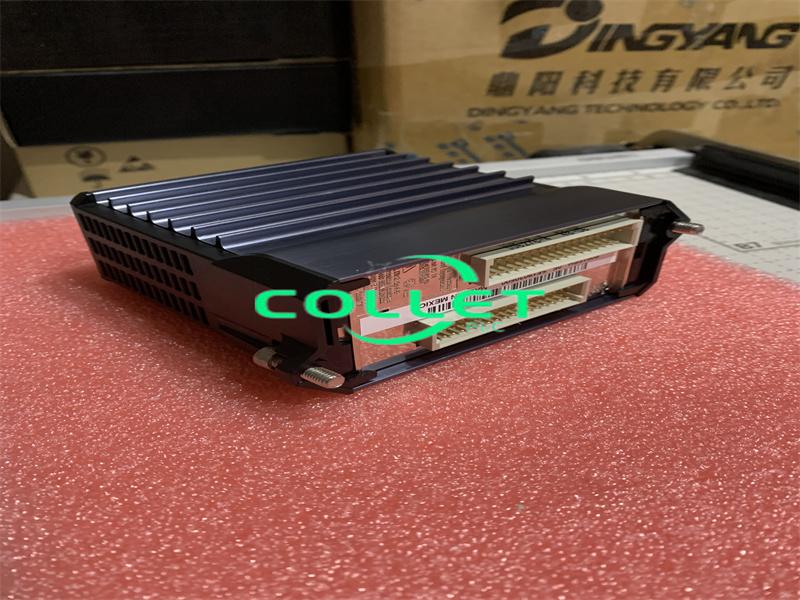

FBM219 Foxboro, Discrete I/O Interface Module

Description:

The FBM219 Discrete I/O Module has 24 discrete input channels and 8 discrete output channels.
Associated termination assemblies (TAs) support discrete input or output signals at voltages of under
30 V dc, 120 V ac/125 V dc, or 240 V ac. Depending on the type of I/O signal required, the TAs contain current limiting devices, fuses, relays, or relay outputs with internal or external power source and fusing.

Key features of the FBM219 are:
- Twenty-Four (24) discrete inputs
- Eight (8) discrete outputs
- Supports discrete input/output signals at voltages of:
- 15 to 60 V dc
- 120 V ac/125 V dc
- 240 V ac
- Each input/output is group isolated
- Rugged design suitable for enclosure in Class G3 (harsh) environments
- Executes the Discrete I/O or Ladder Logic program, with the following configurable options: Input Filter Time, Fail Safe Configuration, Fail-Safe Fall-Back, and Sustained or Momentary Outputs
- Various Termination Assemblies (TAs) that contain high voltage attenuation and optical isolation for inputs

Frequently Asked Questions:
1.What is input data of FBM219?
30 V dc, 125 V dc, 120 V ac, or 240 V ac (voltage monitor or contact sense)

2..What is output data of FBM219?
30 V dc at 0.25 A, or 30 V dc at 5 A, or 125 V dc at 0.6 A, or 120 V ac at 5 A, or 240 V ac at 5 A
Switch (external or internal power source)
