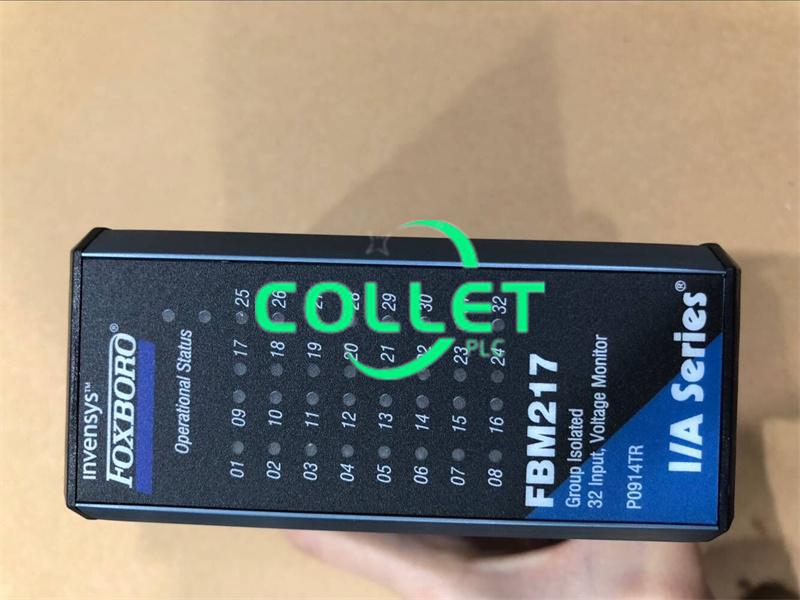

FBM217 Foxboro, Discrete Input Interface Module

Description:

The FBM217 Discrete Input Interface Module provides 32 dc voltage input channels.
FEATURES
Key features of the FBM217 are:
- Thirty-Two (32) discrete inputs
- Supports discrete input signals at voltages of:
- 15 to 60 V dc
- 120 V ac/125 V dc
- 240 V ac
- Single or redundant modules
- Compact, rugged design suitable for enclosure in Class G3 (harsh) environments
- Executes the programs for Discrete Input, Ladder Logic, Pulse Count, and Sequence of Events, with the configurable options: Input Filter Time and Fail-Safe Configuration

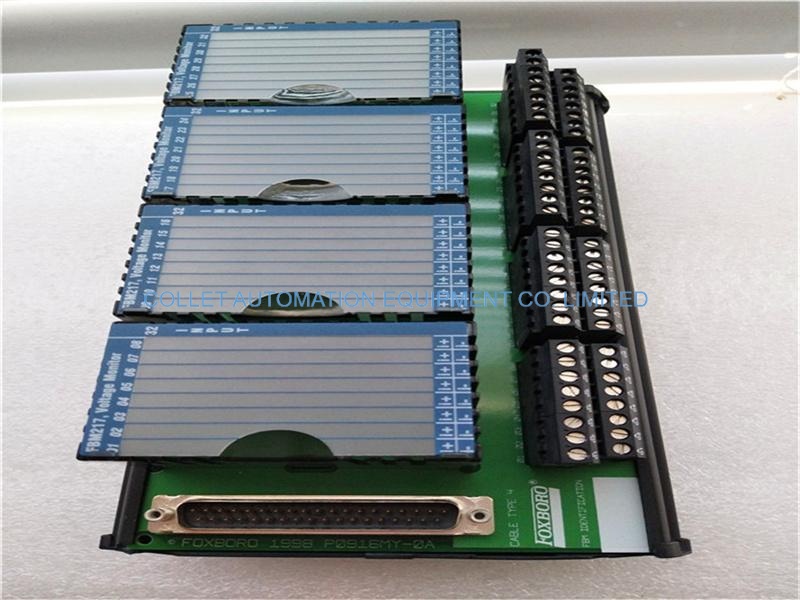

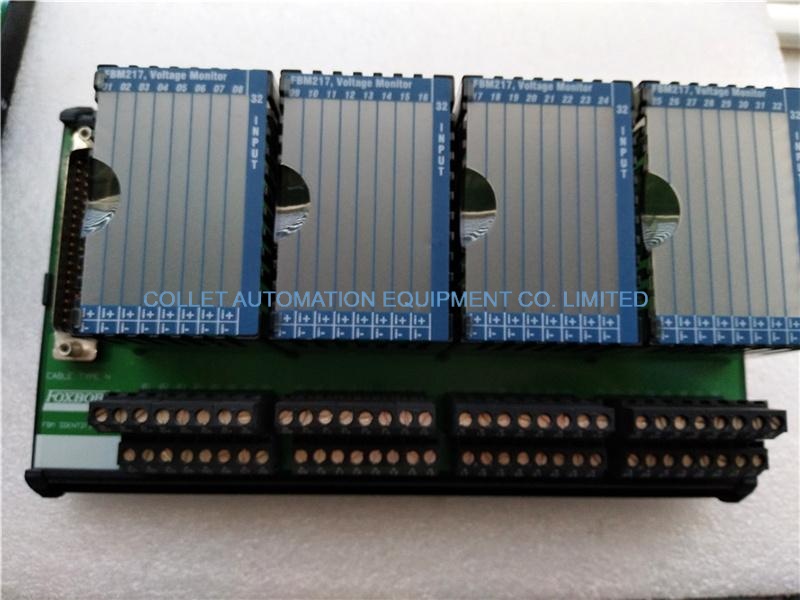

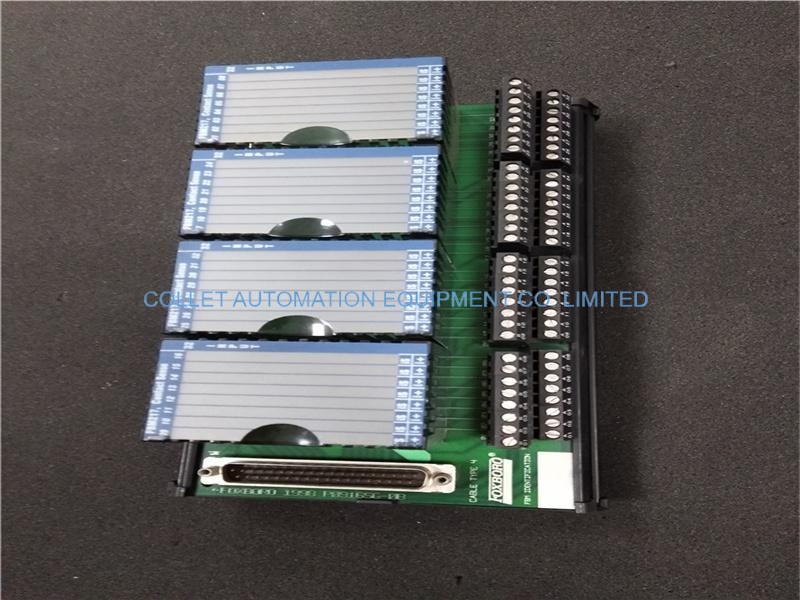

- Various Termination Assemblies (TAs) that contain:
- High voltage attenuation and optical isolation for inputs
- External power connection for device excitation.

Frequently Asked Questions:
1.What are input dates for FBM217?
32 group isolated channels
2.2 mA (typical) at 30 V dc Input

2.What are the key design features of the FBM217 that ensure its compactness and physical protection, and how does it comply with environmental protection standards according to ISA Standard S71.04?
COMPACT DESIGN
FBM217 has a compact design, with a rugged extruded aluminum exterior for physical protection of
the circuits. Enclosures specially designed for mounting the FBMs provide various levels of environmental protection, up to harsh environments, per ISA Standard S71.04
