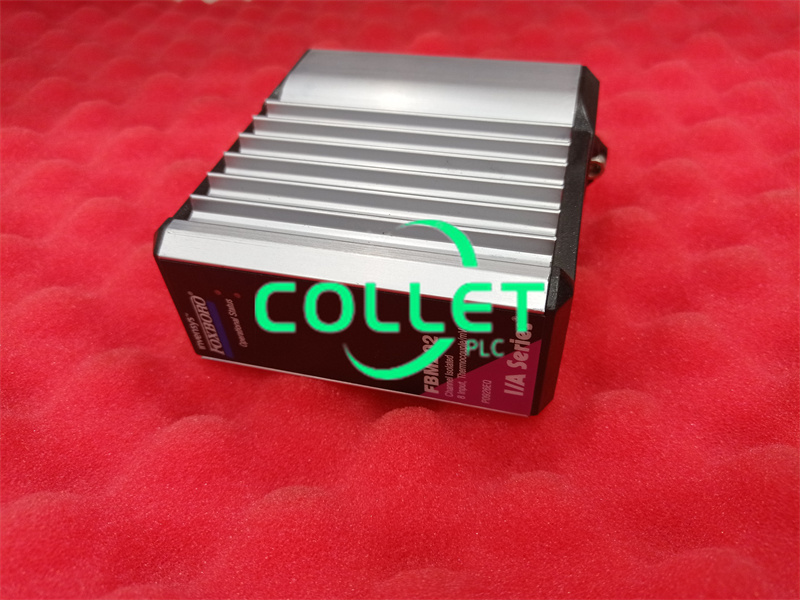

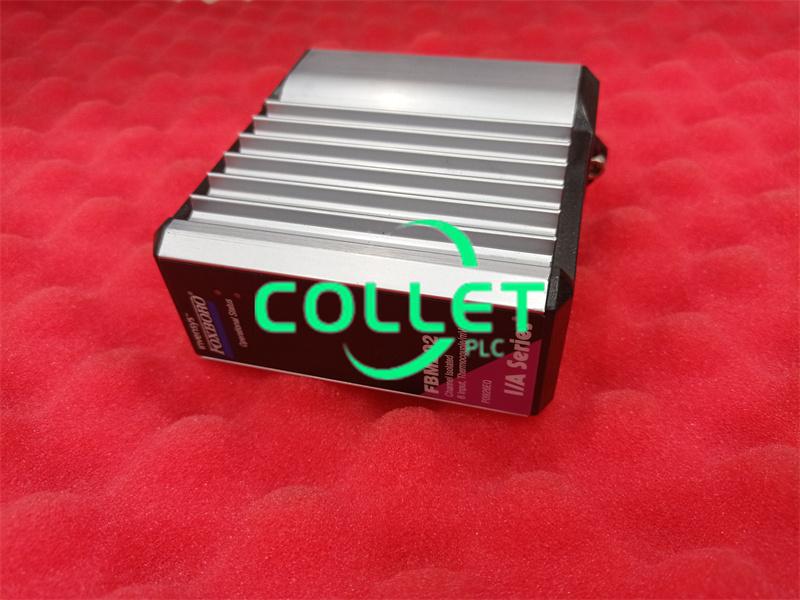

FBM202 Foxboro P0926EQ Thermocouple/mV Input Module

Description:

The FBM202 Thermocouple/mV Input contains eight thermocouple input channels, and one isolated RTD reference junction compensation channel (for terminal temperature sensing). Each thermocouple/mV channel accepts standard thermocouples for various temperature ranges, and each provides thermocouple burnout detection (up-scale). The inputs are galvanically isolated from other channels and ground.
The module performs the signal conversion required to interface the electrical input signals from the field sensors to the optionally redundant Fieldbus. It executes an Analog Input application program, which provides integration time and Rate of Change Limits configurable options.
Two types of passive termination assemblies are available for the FBM202:
- DIN rail mounted TAs, similar to those used with the other 200 Series FBMs
- Baseplate-mounted TA, which mounts directly onto the field I/O connectors of the 200 Series baseplate. These TAs provide field I/O wiring support for two FBM202s in paired slots (that is, in positions 1 and 2, 3 and 4, 5 and 6, or 7 and 8).

Frequently Asked Questions:
1.What are the key features of FBM202?
- Eight channels for input of thermocouple signals
- One isolated RTD reference junction compensation channel (for terminal temperature sensing)
- Each input channel is galvanically isolated
- Rugged design suitable for enclosure in Class G3 (harsh) environments
- Execution of an analog input application program that provides conversion time and configurable options for Rate of Change Limits
- High accuracy achieved by sigma-delta data conversions for each channel
- Termination Assemblies (TAs) for locally or remotely connecting field wiring to the FBM202

2.What is the Input Range of FBM202?
－10.5 to +69.5 mV dc (–10.5 to +69.5 mV dc equals 0 to 64000 raw counts. Input of 71.419 mV equals 65535 raw counts (full range of module))

3.What are the related products to FBM202?
RH926EQ (supersedes P0926EQ)
