Manufacture |
HIMA |
|
Model |
F7131 |
| PN No. |
F7131 |
|
Catalog |
HIQuad |
|
Description |
Power supply monitoring |
| Origin | Germany |
| HS CODE |
85389091 |
| Dimension |
38*32*4 (CM) |
| Weight | 0.4 kg |
Description:
The module F 7131 monitors the system voltage 5 V generated by the 3 power supplies max. as follows:

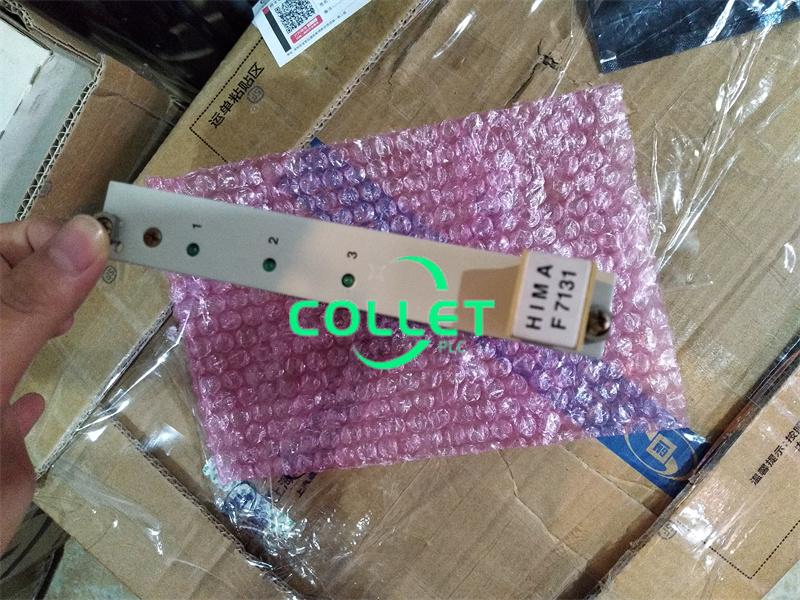

– 3 LED-displays at the front of the module
– 3 test bits for the central modules F 8650 or F 8651 for the diagnostic display and for the operation within the user's program
– For the using within the additional power supply (assembly kit B 9361) the function of the power supply modules in it could be monitored via 3 outputs of 24 V (PS1 to PS3)
Datasheet Link:
F7131 HIMA HIQuad, Power supply monitoring PDF Datasheet
