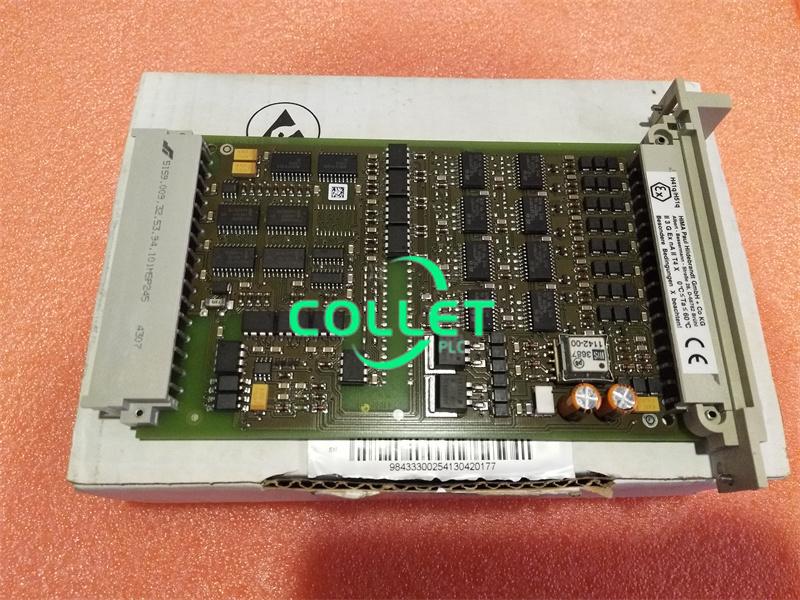

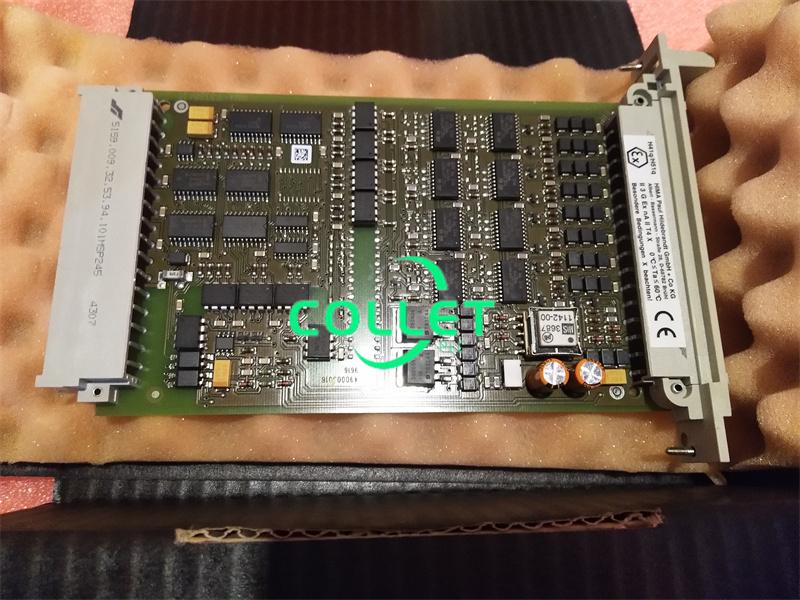

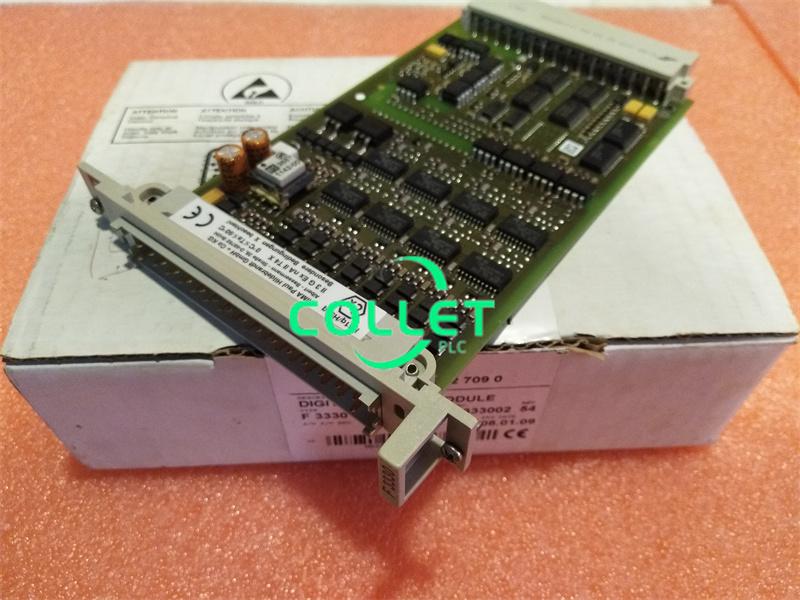

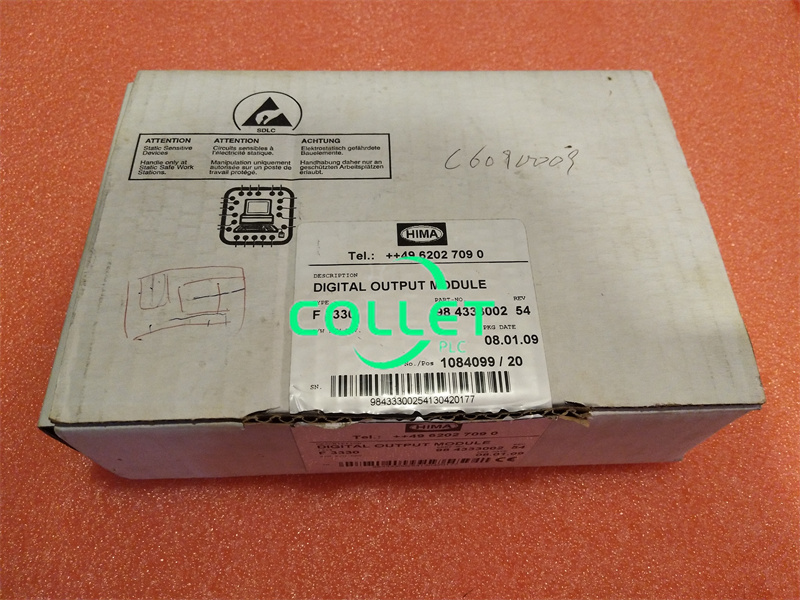

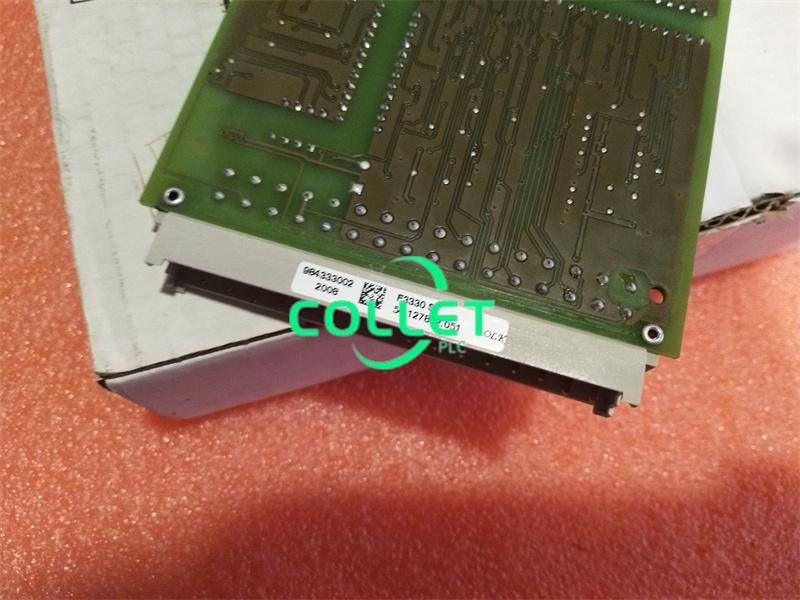

Oringinal and Brand New HIMA DCS Module F3330 In Stock
Description
All HIMA products mentioned in this manual are protected by the HIMA trade-mark. Unless noted otherwise, this also applies to other manufacturers and their respective products referred to herein. All of the instructions and technical specifications in this manual have been written with great care and effective quality assurance measures have been implemented to ensure their validity. For questions, please contact HIMA directly. HIMA appreciates any suggestion on which information should be included in the manual. Equipment subject to change without notice. HIMA also reserves the right to modify the written material without prior notice. The safety-related F35 controller is a compact system located in a metal enclosure with 24 digital inputs, 8 digital outputs, 2 counters and 8 analog inputs. The controller is available in 3 model variants for SILworX and 3 model variants for ELOP II Factory, see Chapter 3.2. All variants are described in this manual. The device is suitable for mounting in Ex-zone 2, see Chapter 4.1.5. The device has been certified by the TÜV for safety-related applications up to SIL 3 (IEC 61508, IEC 61511 and IEC 62061), Cat. 4 (EN 954-1) and PL e (EN ISO 13849-1). Further safety standards, application standards and test standards are specified in the certificate available on the HIMA website.
| Output modules digital | |||||
| F 3322 | 16 | - | - | 24 VDC to 0.5 A | |
| F 3325 | 3 | 6 | - | yes | Ex transmitter supply module for F 6221, ATEX |
| F 3330 | 3 | 8 | - | - | 24 VDC to 0.5 A |
| F 3331 | 3 | 8 | yes | - | 24 VDC to 0.5 A |
| F 3333 | 3 | 4 | - | - | 24 VDC to 2 A |
| F 3334 | 3 | 4 | yes | - | 24 VDC to 2 A |
| F 3335 | 3 | 4 | - | yes | 24 VDC, ATEX |
| F 3348 | 3 | 8 | - | - | 48 VDC to 0.5 A |
| F 3349 | 3 | 8 | yes | - | 24 VDC/48 V DC to 0.5 A |
| F 3422 | 8 | - | - | Relay module, 30 VAC/DC, 120 W, floating NO contact | |
| F 3430 | 3 | 4 | - | - | Relay module, 110 VDC/250 V AC to 4 A |
