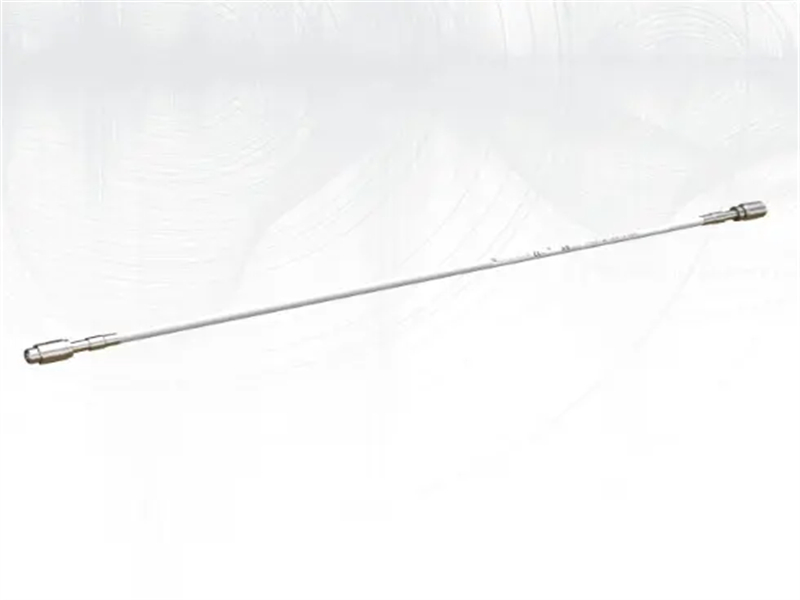

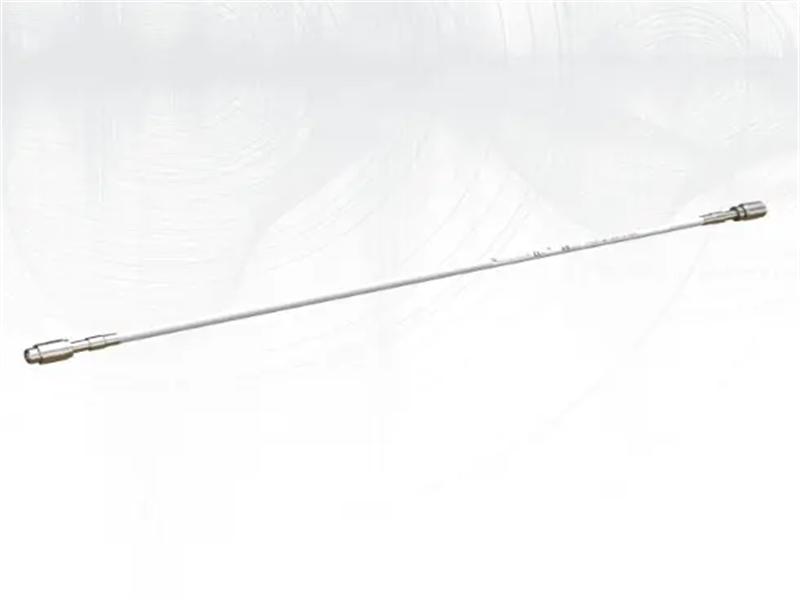

EA902 Vibration 913-902-000-011 A1-E4000-F0-G0 Extension Cable

EA402 extension cable

:FEP covered 70 Ω coaxial cable, Ø 3.6 mm

: Self-locking miniature coaxial connectors.
Note: When connecting, these should be hand-tightened until locked.

Item NO.:
EA902
Payment:
T/T
Market Price:
$8888
Product Origin:
Switzerland
Color:
Depends on material
Shipping Port:
Xiamen
Lead Time:
5-7 days
Goods Stock:
10
Product weight:
0.65 kg

Inquiry now

product introduction

Manufacture	Vibration
Model	EA902
PN No.	913-902-000-011 A1-E4000-F0-G0
Catalog	NIL
Description	Extension Cable
Origin	Switzerland
HS CODE	85389091
Dimension	12118 (CM)
Weight	0.65 kg

Description:

All dimensions are in mm (in) unless otherwise stated.
1. The total system (chain) length = TQ902 or TQ912 integral cable length + EA902 extension cable length (E).
For information on combining integral and extension cables to obtain a particular total system (chain) length,
Total system (chain) length
The total system length (TSL) is the sum of the length of the TQ9xx sensor’s integral cable and the length of the EA90x extension cable. For TQ902 / TQ912, EA902 and IQS900 proximity measurement chains, the supported TSLs are obtained from the following different combinations of cables.
Total system (chain) lengths
•1 m : 1.0 m integral cable with no extension cable
•5 m : 0.5 m integral cable + 4.5 m extension cable.
1.0 m integral cable + 4.0 m extension cable.
1.5 m integral cable + 3.5 m extension cable.
2.0 m integral cable + 3.0 m extension cable.
5.0 m integral cable with no extension cable.
•10 m : 0.5 m integral cable + 9.5 m extension cable.
1.0 m integral cable + 9.0 m extension cable.
1.5 m integral cable + 8.5 m extension cable.
2.0 m integral cable + 8.0 m extension cable.
5.0 m integral cable + 5.0 m extension cable.
10.0 m integral cable with no extension cable.
Note: The combination of cables selected for a particular total system (chain) length depends on the application. For example, to obtain the optimum location for the separation between the integral and extension cables or to eliminate the requirement for an extension cable.
Total system (chain) length trimming
Due to the characteristics of the coaxial cable, an "electrical trimming" of the nominal length of extension cables is necessary to optimize the system performance and the sensor interchangeability.
TSL for a 1 m measurement chain : 0.9 m min.
TSL for a 5 m measurement chain : 4.4 m min.
TSL for a 10 m measurement chain : 8.8 m min.

2. When optional protection such as a flexible stainless-steel hose with FEP sheath is ordered:
Flexible hose length (G) max. = EA902 extension cable length (E) − 200 mm, for an extension cable that is protected to the maximum extent possible (“fully-covered cable”).
