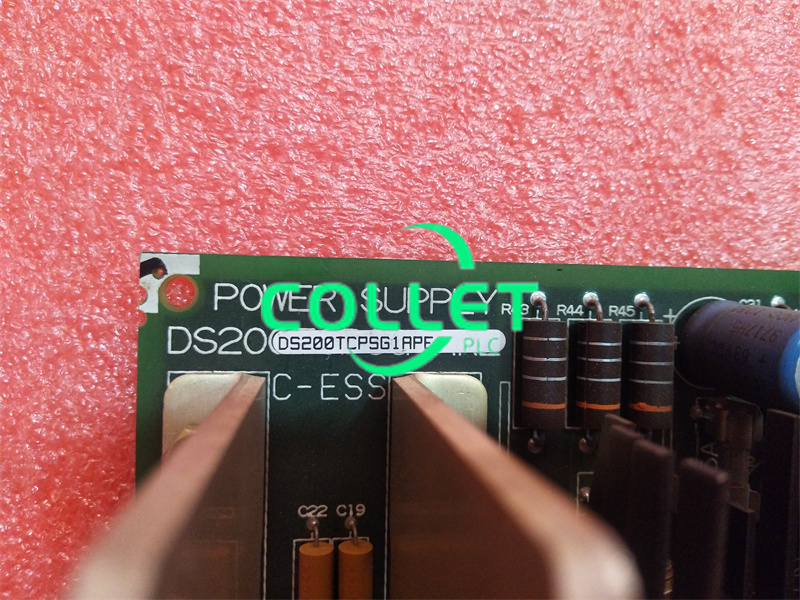

DS200TCPSG1APE GE MKV, Power Supply Card

Description:

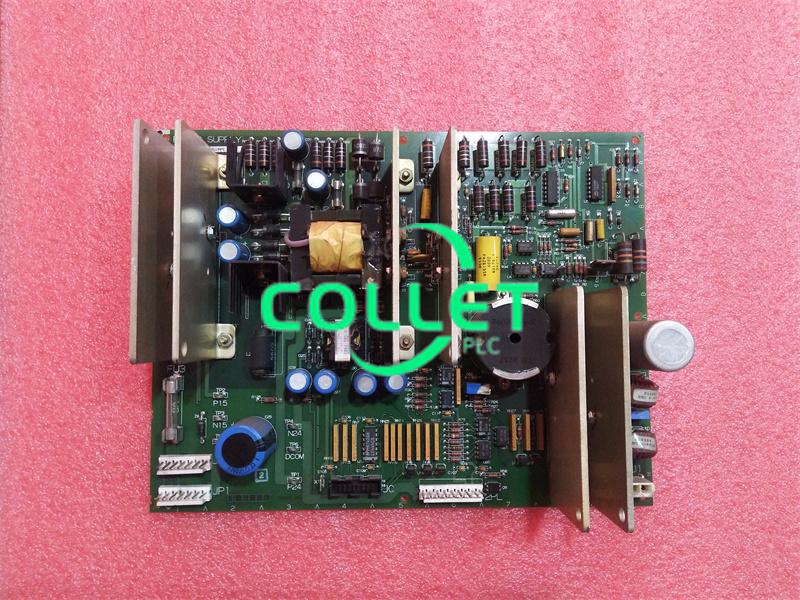

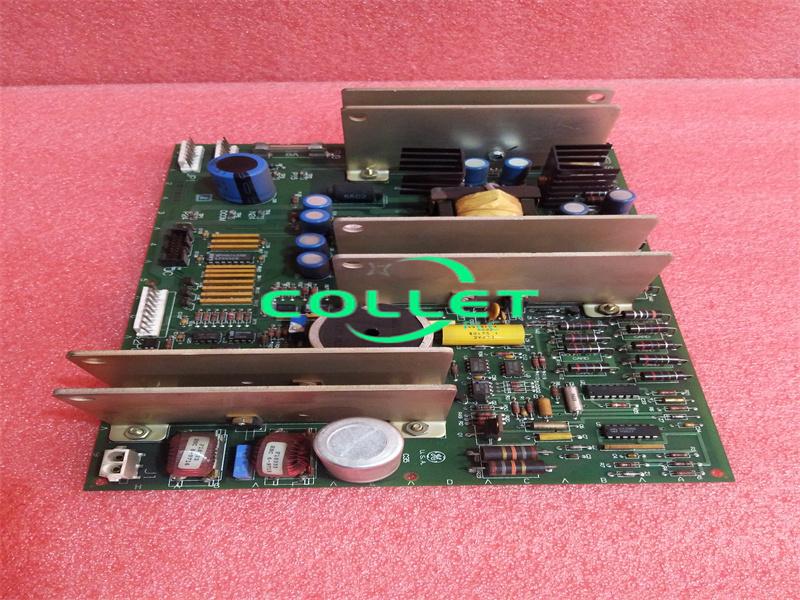

DS200TCPSG1A is a DC power supply board developed by GE. To transform 125 V dc power from PD to the necessary voltage levels, the Power Supply Board (TCPS) is situated in R and each of the four IO cores. These include, but are not limited to, items like servo valve current outputs, RTD power supply voltages, mA output power supply voltages, and microprocessor power supply voltages.

Each of the four cores has a power supply board that transforms 125 VDC power from the power distribution to the necessary voltage level. The TCPS boards don't have any software configurations or hardware jumpers.
The TCPS has a 125 VDC input voltage and outputs of +5 VDC, +24 VDC, +/- 15 VDC, and +/- 24 VDC. The Power Supply Board has three fuses, a 16-pin connector, and a 9-pin connector. There are several test points as well.

As with any General Electric product offered alongside the Mark V Series, this DS200TCPSG1A DC Input Power Supply Board's functionality is supported through the use of several product-specific hardware inclusions and specifications. The GE Power Supply DC Input Board DS200TCPSG1A contains three fuses, one 16-pin connector, and one 9-pin connector. It also contains multiple test points in its internal assembly. When you suspect that the board has stopped performing as expected or has suddenly stopped working the first step in troubleshooting, as outlined by General Electric instructional manuals, is to examine the DS200TCPSG1A Board's three fuses. These fuses prevent damage to the board by shutting down the board if too much current is present in the board or if an irregularity has occurred in the current. With this being said, its is important to keep on hand a supply of the fuses with the same rating in case the fuses blow. These fuses must be exactly the same rating because a different fuse might expose the board to an over-current condition and lead to damage. To install a replacement fuse, the qualified servicer performing the replacement must have a knowledge of the drive and how to safely disengage the drive from power. Depending on how the board is installed and the accessibility of the board, the fuses can be replaced without removing the board. However, if you must remove the board, use a screwdriver to remove the four screws that secure the board in the metal board rack.

Frequently Asked Questions:

1.What is the payment term?
Wire transfer only.

2.When does the warranty period start?
One year from the time the client receives the goods.
