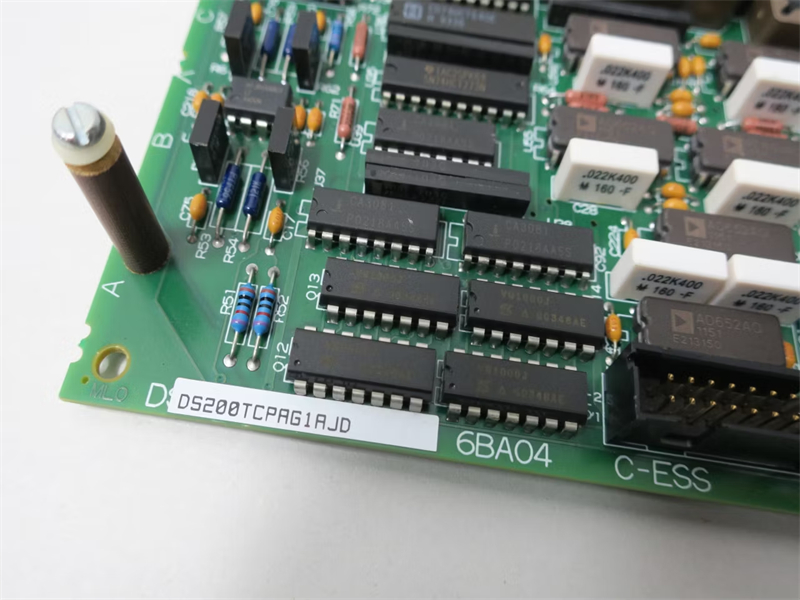

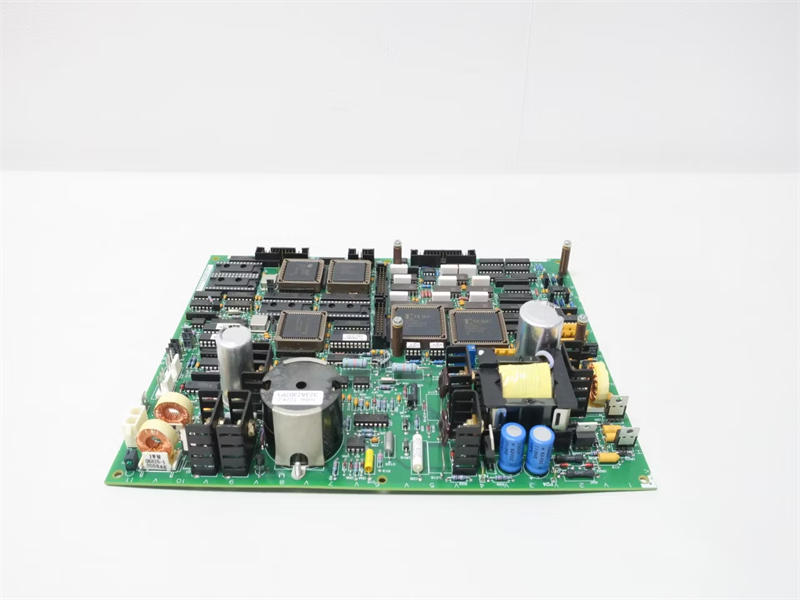

DS200TCPAG1AJD GE Mark V, Control Processor Module

Description:

Functional Description
The DS200TCPAG1AJD is a control processor board engineered by GE, integral to the Mark V Speedtronic control system. Centrally located within the control panel, this board acts as the primary controller, boosting operational efficiency for turbine applications. It functions as a central processing unit, facilitating seamless control and coordination throughout the Mark V system. Its distinctive configuration, power distribution capabilities, and integrated LED fuse monitoring make it indispensable for effective turbine management.

Features
This board does not fit into the VME rack and lacks the standard metallic mounting faceplate, indicating a unique assembly method. This design allows the board to be directly installed into the core of the Mark V control unit, emphasizing its specialized role within the system.
It features a conventional printed circuit board (PCB) coating that enhances durability, protecting the board in demanding turbine environments. The coating adheres to typical standards used in industrial control systems.
The board is rated for operation on 125 volts of direct current (DC), ensuring consistent power delivery required for reliable turbine control. It includes various power distribution cables crucial for distributing power across the system.
A series of fuses protects the board and system components from electrical faults. Each fuse is monitored by an LED indicator, providing visual feedback if any fuse needs replacement or repair. This setup ensures real-time monitoring of the board’s integrity, enabling quick fault identification, minimizing downtime, and aiding in preventive maintenance.
With its fuse protection system and LED indicators, the board offers operators continuous status updates, ensuring prompt issue resolution. This leads to improved system reliability and reduced chances of unplanned outages.

Frequently Asked Questions:
1.Where is the board installed within the Mark V system?
The board is directly installed into the core of the Mark V control panel, rather than being mounted in a VME rack like other boards. Its unique design lacks a metallic mounting faceplate, allowing for a tailored fit within the system.

2.What is the power rating of the DS200TCPAG1AJD?
The board operates on a 125V DC power supply, with power distributed throughout the board via various power distribution cables. This configuration ensures stable and reliable power delivery for turbine control functions.

3.What is the payment term?
Only wire transfer

4.When does the warranty period start?
One year from the time the client receives the goods.

Datasheet Link:

DS200TCPAG1AJD GE Mark V, Control Processor Module PDF Datasheet
