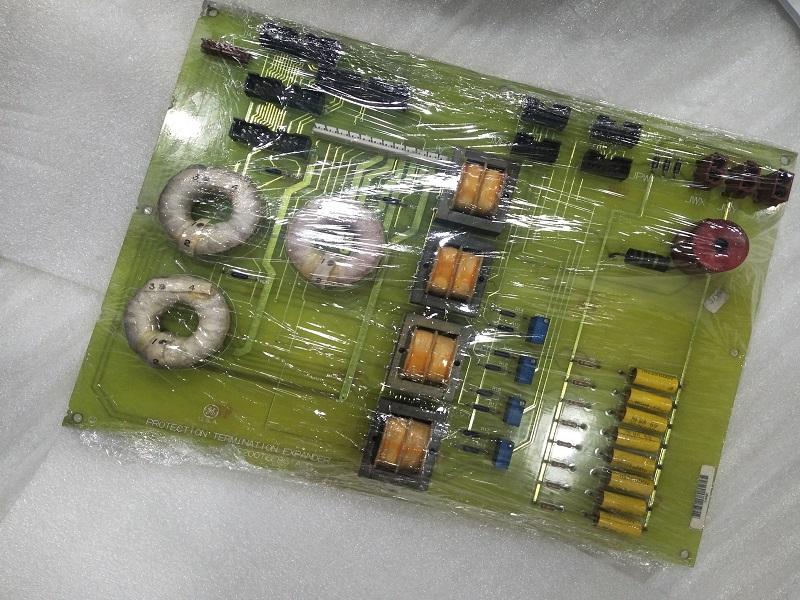

DS200TCEBG1B GE Protective Termination Expander Board

Description:

DS200TCEBG1B is a Protective Termination Expander Board and is part of the GE Speedtronic Mark V gas turbine control system. This board is located in the P1 Core location 2, Scales the potential transformer and current transformer used by the TCCB boards in the R5. These signals are used for the generator and bus voltages and line current and are landed on the PTBA terminal board. There are no hardware jumpers on the TCEB board for the configuration. The alarm horn jumper is located on the PTBA terminal board. There is no software configuration on the TCEB board.

Datasheet Link:

DS200TCEBG1B GE Protective Termination Expander Board PDF Datasheet
