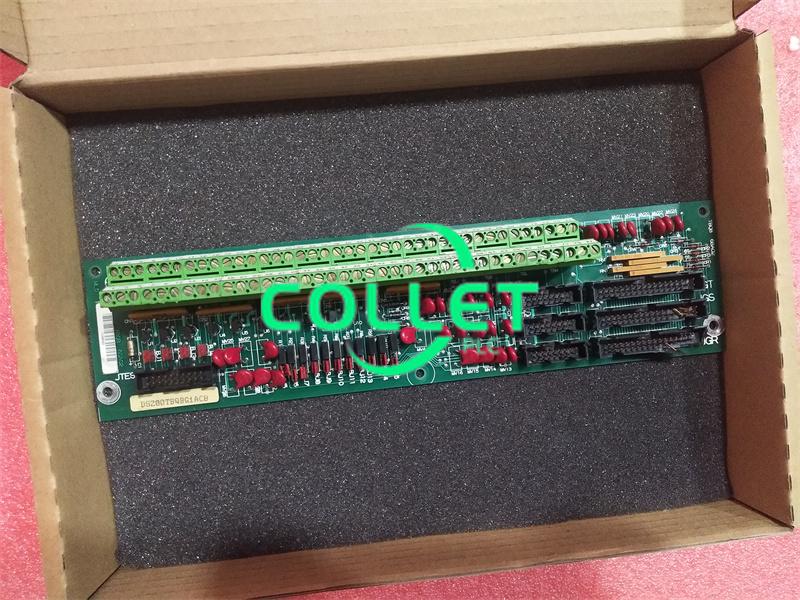

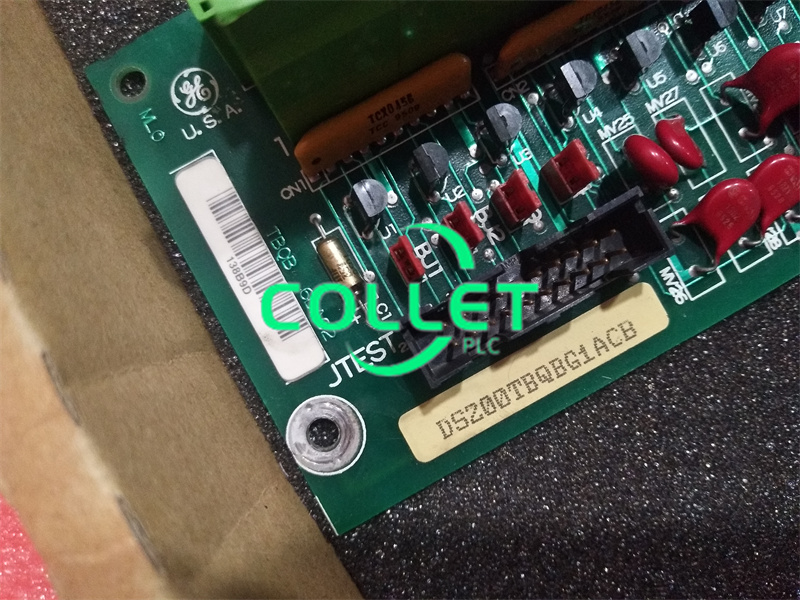

DS200TBQBG1A GE MKV, Analog Terminal Board

Description:

This DS200TBQBG1A circuit board product offering from the industry-respected General Electric retailer is considered quite the valuable presence to its Mark V product series, as it is deemed as functional both as an Analog Termination Board and as an Input Termination Module in original General Electric instructional manual materials. Before making a final purchase decision on this DS200TBQBG1A Input Termination Module, it is crucial to be aware of the fact that this Mark V Series product offering exists as a revised version of a pre existing General Electric printed circuit board product; modifying the DS200TBQBG1 Input Termination Module by use of a singular, A-rated functional product revision.

Hardware Tips and Specifications

Like many to all of the other product offerings in GE's Mark V Series, this DS200TBQBG1A Input Termination Board makes use of several product-specific hardware inclusions and specifications to reach its intended series functionality. The GE RST Analog Termination Board DS200TBQBG1A features 2 terminal blocks, with each block contains 77 terminals for signal wires. The GE RST Analog Termination Board DS200TBQBG1A also contains 15 jumpers, 3 34-pin connectors, and 3 16-pin connectors. The opportunities for diagnosing the board if you suspect a problem are limited with this product specifically due to the lack of test points and indicator LEDs. Test points give a means of attaching the specific circuits on the board to a testing device and identifying problems, while LEDs typically provide a means for gaining an indication of the general health and processing activity in the board. While limited in its number of standard diagnostic components, the DS200TBQBG1A's Mark V Series drive contains some diagnostic tools that when run, produce a report of all the functions of the drive and can help diagnose a problem with the board. The tools reside in the programmable read only memory (PROM) on the drive and are available for use from the control panel.

Several different connector types have been adopted into the assembly of this DS200TBQBG1A Input Termination Board for Mark V Series interfacing possibilities. The primary connector utilized in the assembly of this Mark V Series product has to be cited as the JGR connector, which writes any vibration, analog current or voltage signal needed for respective cores within the related Mark V Series TCQA board assembly. Some of the other connectors utilized by this General Electric Input Termination Board include the JHR connector, the JGS/T connector, and the JHS/T connector.
