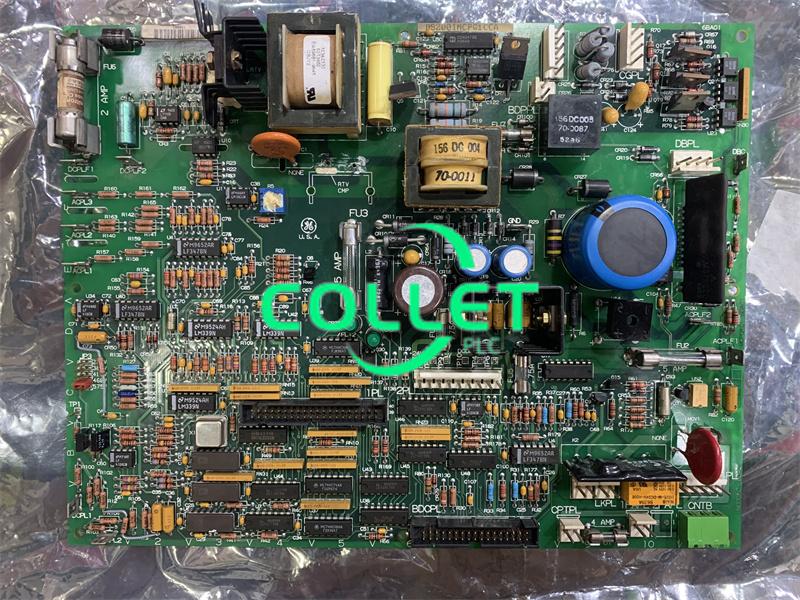

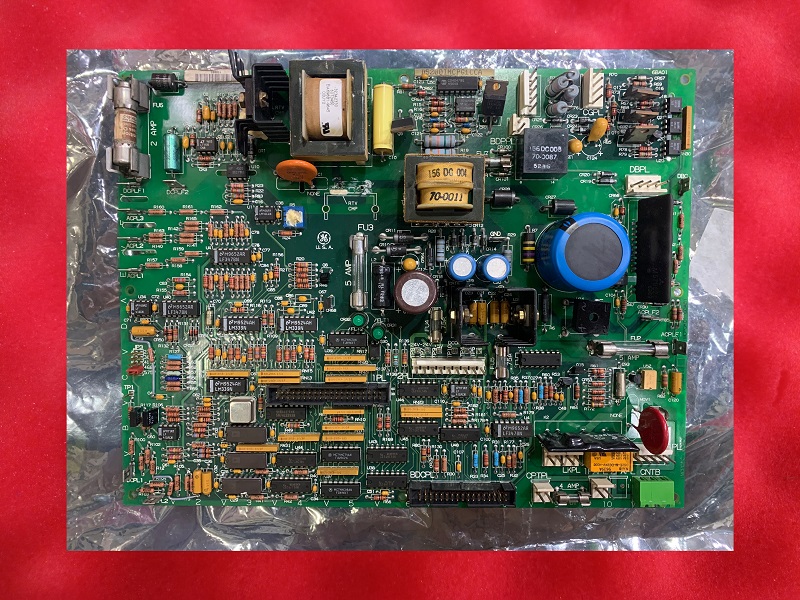

DS200IMCPG1CCB GE AC2000I, Power Supply Interface Card

Description:
DS200IMCPG1C is an IAC2000I Power Supply Interface Board developed by General Electric under the Mark V series.The DS200IMCPG1C printed circuit board (PCB), originally produced by General Electric, was designed as a component of their Mark V Turbine Control System Series. As indicated by its full name, the Mark V Series is specifically utilized in the control and management systems for wind, steam, and gas turbine automated drive assemblies. It remains a legacy series due to its eventual discontinuation by the original manufacturer after its initial release. Despite being considered a legacy series, the Mark V Series is also one of the last General Electric Mark Series to feature their patented Speedtronic technology. The DS200IMCPG1C PCB functions as a Power Supply Interface Board, according to official product descriptions found in instructional manuals for the original General Electric and Mark V Turbine Control Systems. While it serves as a Power Supply Interface Board, this DS200IMCPG1C PCB is not the original product of its kind created for the Mark V Series; that would be the DS200IMCPG1 parent Power Supply Interface Board without the C-rated functional revision present in this DS200IMCPG1C product.

Hardware Tips and Specifications:

The GE IAC2000I Power Supply Interface Board DS200IMCPG1C can be connected via a cable to the DS200SDCC Drive Control Board by linking it to the 1PL connector on the Drive Control Board. This board includes 8 fuses that protect its components from overvoltage conditions. The information above represents the extent of available details about the original DS200IMCPG1C board found in factory-printed instructional manuals. The functional product number DS200IMCPG1C itself provides significant specific hardware information, encoding details such as:

- Normal Mark V Series assembly version
- Domestic location of the original GE manufacture
- IMCP functional product acronym
- Standard style of PCB protective coating
- Group one Mark V Series grouping
- C-rated primary functional revision

When replacing a DS200IMCPG1C board, it is crucial to inspect the blown fuses to determine the correct type of replacement fuse. You can also refer to the documentation provided with the board for a list of suitable replacement fuses. Ensure that you only replace a fuse in the DS200IMCPG1C PCB assembly with an exact match to avoid damaging board components due to high voltage. A blown fuse can be easily identified because the contact inside the fuse has melted. To replace the fuse, simply pull it out of the connector and press the replacement into the connector without needing to remove the board from the cabinet. Therefore, before starting, make sure to turn off all power to the drive. If you notice that the same fuse frequently blows, it is advisable to perform a diagnostic test on the drive to identify the underlying cause. Once resolved, you can expect your drive to operate at peak efficiency and run trouble-free.

Datasheet Link:

DS200IMCPG1CCB GE AC2000I, Power Supply Interface Card PDF Datasheet
