DS200FCSAG2A GE LS2100, CURRENT SENSING INTERFACE

Description:

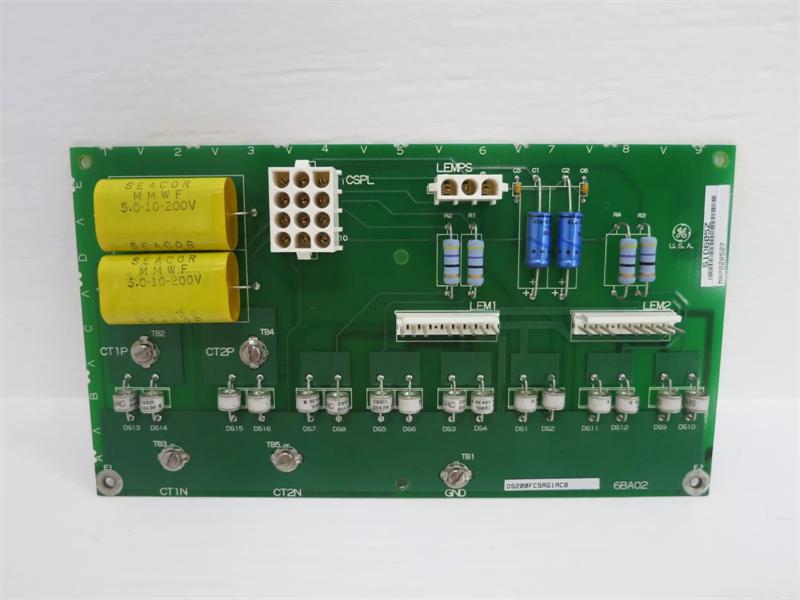

The DS200FCSAG2A board, crafted by General Electric within the LS2100 Series, serves as a Current Sensing Feedback Board. It is integral to the ac drive system tailored for gas turbine generator prime movers and is housed in the static starter power conversion cabinet associated with the LS2100 Series. This model features two distinct sub-D pin connectors: one is a three-pin LEMPS connector, and the other is a twelve-pin CSPL connector.

During operation alongside a Control Power Supply (CPS), the CPS model generates specific voltage outputs directly for the DS200FCSAG2A, typically at 24, 15, 12, and 5 volts. To ensure accurate voltage readings, it may be necessary to disconnect the auxiliary power from the circuits. In such cases, the LEMPS connector on the DS200FCSAG2A must be unplugged prior to checking for the correct voltage levels.
