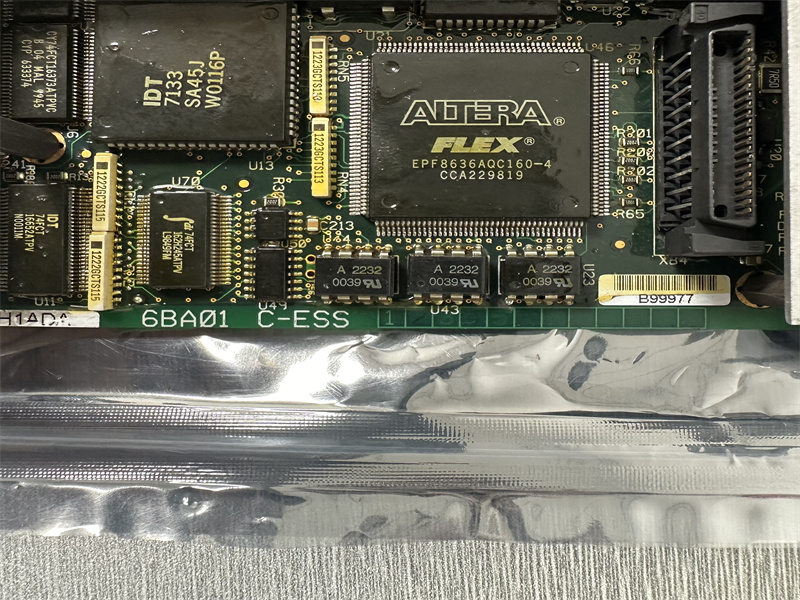

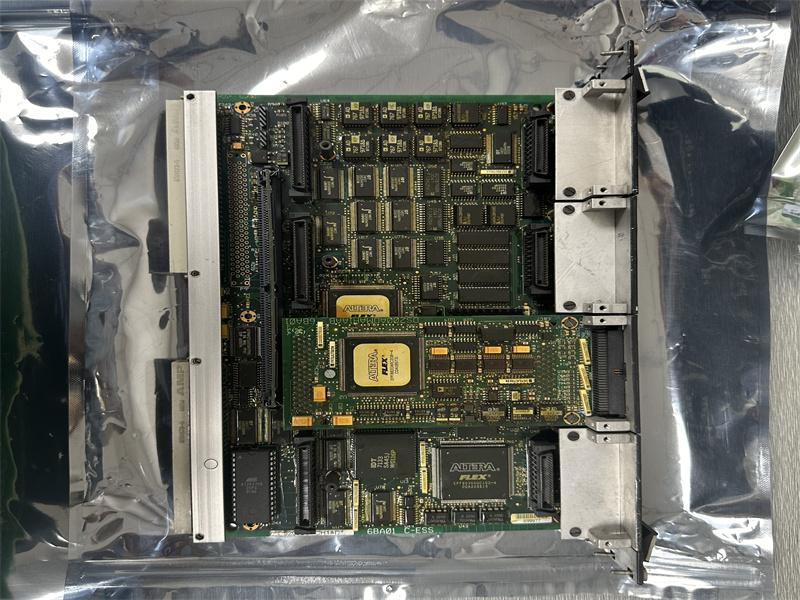

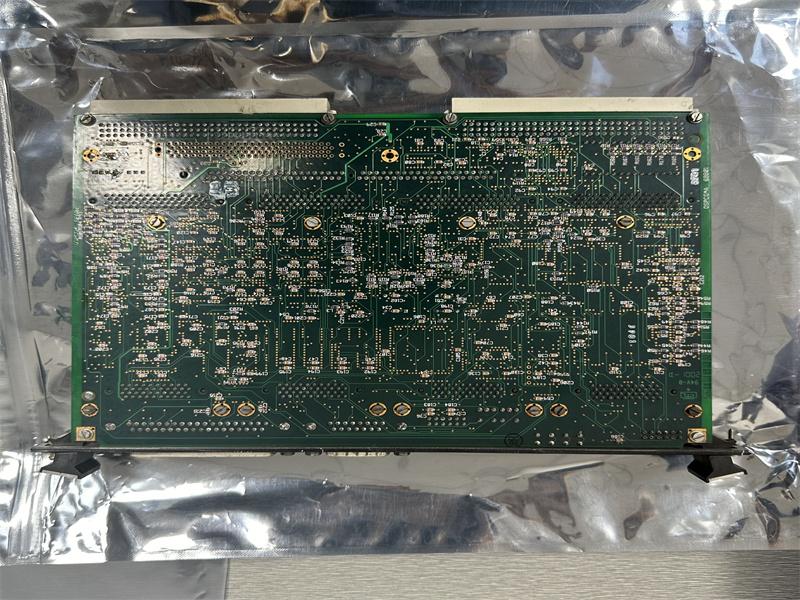

DS200DSPCH1A GE LS2100, Control Processor Card

Description:

The Digital Signal Processor Control Board number DS200DSPCH1A is primarily used to provide communications bandwidth and computational capacity, these features are used for directly controlling high-powered converter applications. The following applications are directly controlled applications, wind turbines, dynamometers, multi-bridge power converters,  uninterruptible power sources (UPS), and active filters. This model provides its own memory program as well as expandable high-speed input/output for direct interfaces without using the datapath from the VME.

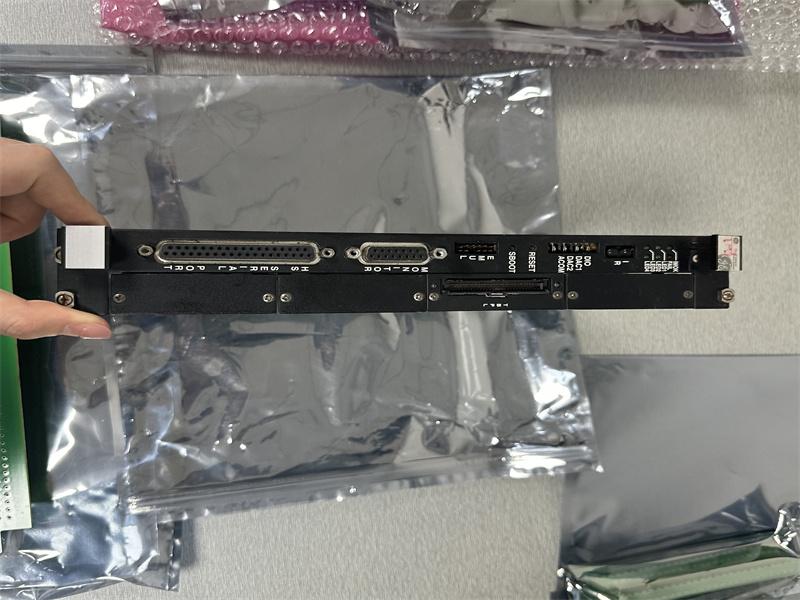

The DS200DSPCH1A board has a serial communication feature that provides asynchronous communication through a duplicate channel UART (universal asynchronous receiver/transmitter).  Note that the DSPC model has two pushbutton switches on the front faceplate, the SW1 switch is used for a hard reset of the DSPC model, while the SW2 is used as a serial boot switch for the DSPC. When needing to use the reset pushbutton switches a pen/pencil will need to be used to press the switch.

All information on the DS200DSPCH1A model can be found in not only the GEH-6373 series manual but the GEI-100220 manual as well which includes all information on the LEDs, test points, connectors, and switches.

Datasheet Link:

DS200DSPCH1A GE LS2100, Control Processor Card PDF Datasheet
