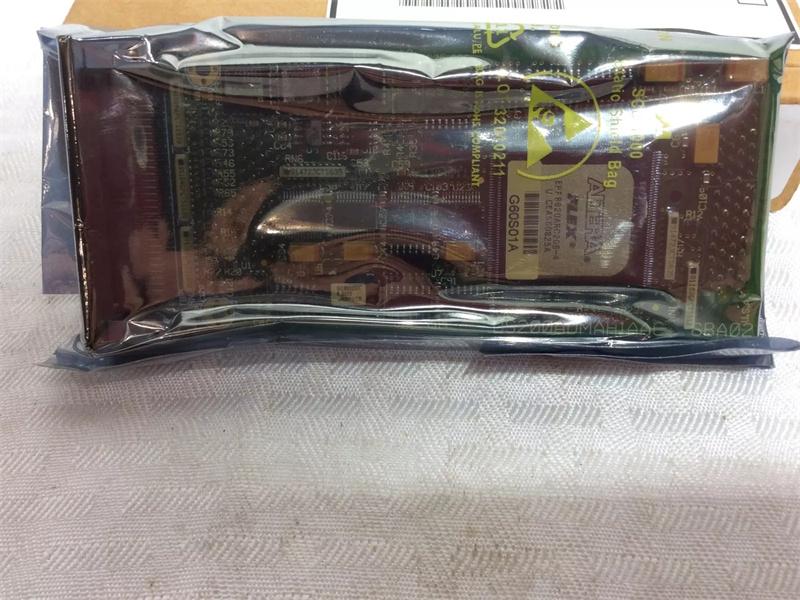

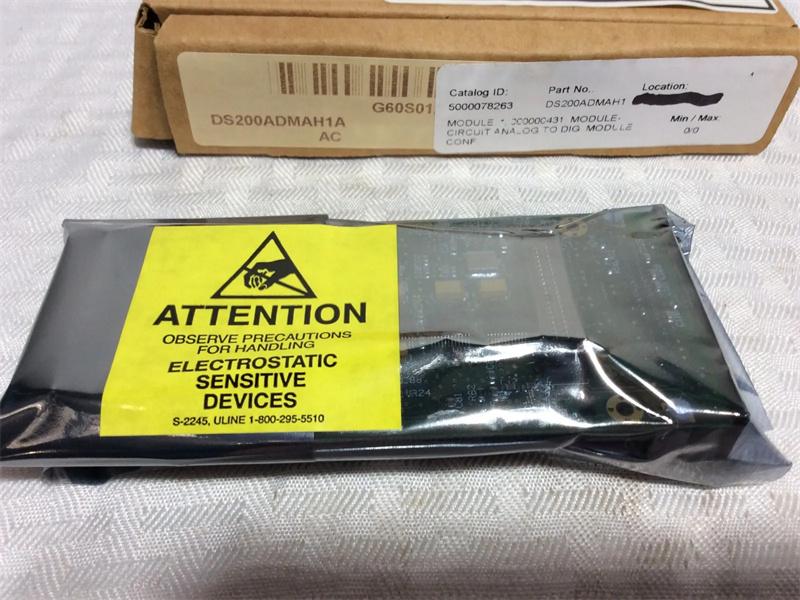

DS200ADMAH1A GE LS2100, A/D Daughter Card for DS210DSPC

Description:

The Speedtronic Mark V Gas turbine Control system is one of the most established derivative of the Speedtronic Series. The Mark V system is designed to fulfill all gas turbine Control requirements.The Mark V control boards and control cards part numbers belong to the DS200 series.The Mark V Turbine control system uses digital microprocessors to control the Gas Turbine. The Mark V speedtronic system uses a triple redudant 16bit microprocessor controller. DS200ADMAH1A (ADMA) is an analog to digital module and this belongs to the Mark V board series. DS200ADMAH1A is a daughter board and this can be connected to GE brand drives and Exciters. Once the DS200ADMAH1A is installed in DSPC board this card buffers,filters, and converts analog and I/O fed to the drive. Installation parameters should be to make sure that the DS200ADMAH1A As well as the installed drive operate smoothly.

Once DS200ADMAH1A is installed in DSPC board it ensures that all I/O functions are accurately read and transmitted correctly. In addition to this the daughterboard also supports twelve more analog inputs.In DS200ADMAH1A an on board programmable logic is used, which helps to provide interfacing capabilities between the ADMA I/O and DSPC Processor buses. Two LED indicators, one green IMOK LED and one red fail LED are displayed on board to alert users to any errors.

DS200ADMAH1A has three Analog inputs and four Analog outputs. DS200ADMAH1A connects to an external high voltage terminal DS200DDTB.
